PSPH 1000-2000
Part Number: PSPH 1000
PSPH 1000-2000
Part Number: PSPH 1000

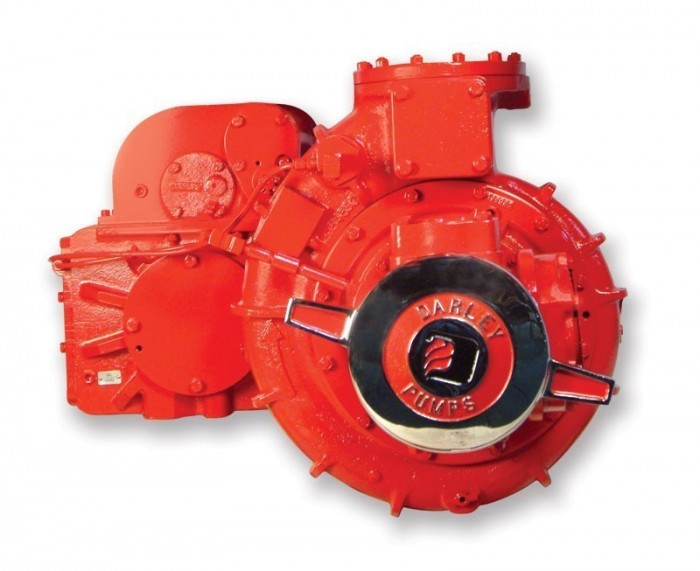

Single Stage, Centrifugal Pump, PTO Driven, 3 Gear Gearcase
Industry’s Longest Warranty
- 10-year manufacturer’s, 10-year parts and 3-year labor
Documents & Downloads
IGS 3D Files
Performance Curves
Operation Manuals
Install Instructions
Warranties
Performance
PSPH 1000
- 1000 gpm (3785 L/M) @ 150 psi (10.3 bar)
- 700 gpm (2646 L/M) @ 200 psi (13.8 bar)
- 500 gpm (1893 L/M) @ 250 psi (17.2 bar)
PSPH 1500
- 1500 gpm (5678 L/M) @ 150 psi (10.3 bar)
- 1050 gpm (3974 L/M) @ 200 psi (13.8 bar)
- 750 gpm (2839 L/M) @ 250 psi (17.2 bar)
PSPH 1750
- 1750 gpm (6624 L/M) @ 150 psi (10.3 bar)
- 1225 gpm (4637 L/M) @ 200 psi (13.8 bar)
- 875 gpm (3312 L/M) @ 250 psi (17.2 bar)
PSPH 2000
- 2000 gpm (7570 L/M) @ 150 psi (10.3 bar)
- 1400 gpm (5299 L/M) @ 200 psi (13.8 bar)
- 1000 gpm (3785 L/M) @ 250 psi (17.2 bar)
PSPH HIGH PRESSURE
- 200 gpm (757 L/M) @ 400 psi (27.6 bar)
- 100 gpm (379 L/M) @ 600 psi (41.3 bar)
Features
- 4″ or 5″ NPT or weld discharge flange
- 5″ or 6″ NPT or weld suction flange
- 2nd stage pump
- Rotation: engine or opposite engine
- 1410 lock on yoke
Motor
N/A
Engine
N/A
Weight
810 lbs. (367 kg)
Dimensions
28″L x 24″W x 31″H
Applications
- Mini Pumper
- Pumper Tanker
- Tanker
- Wildland/Attack Fire
Options
N/A
Technology
N/A
