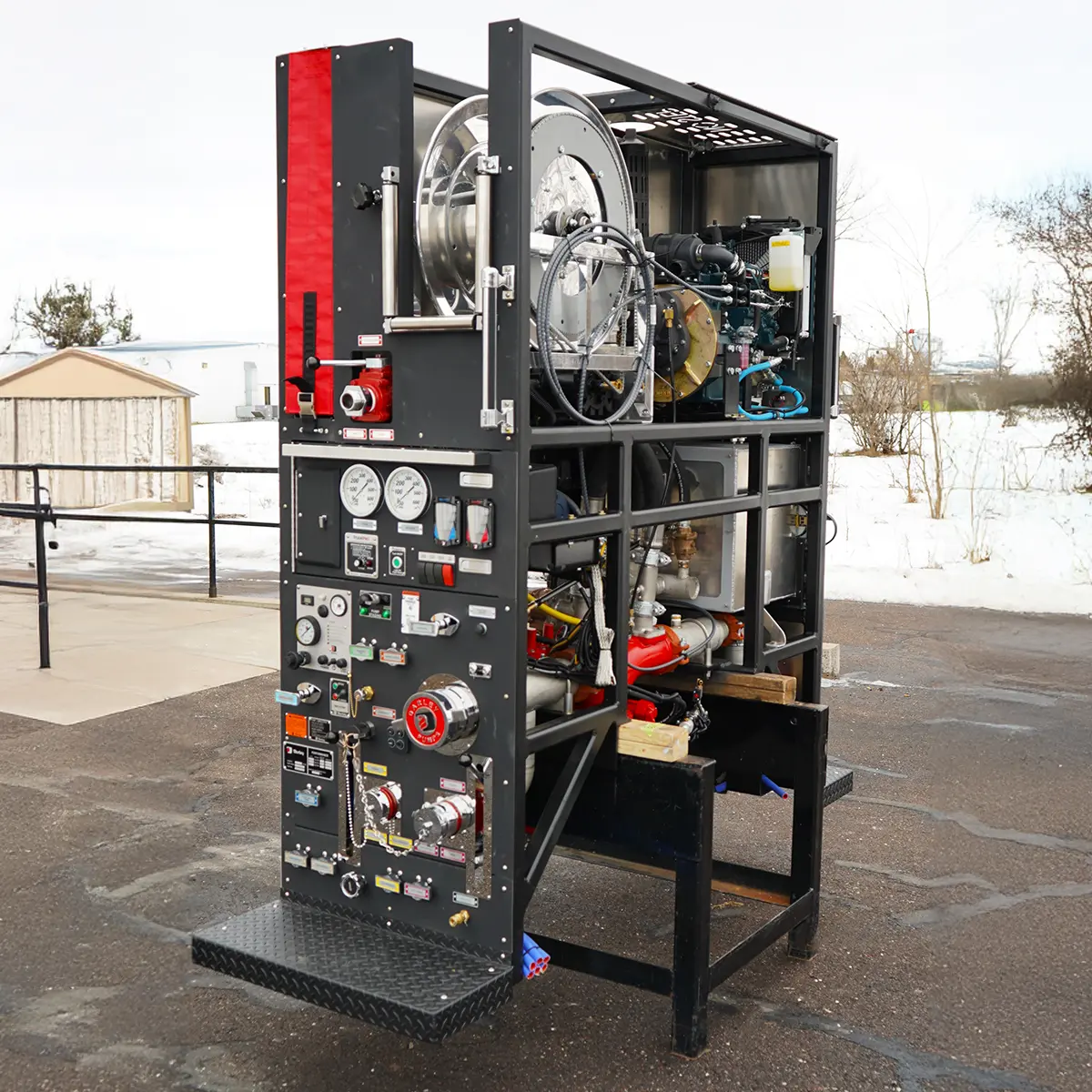

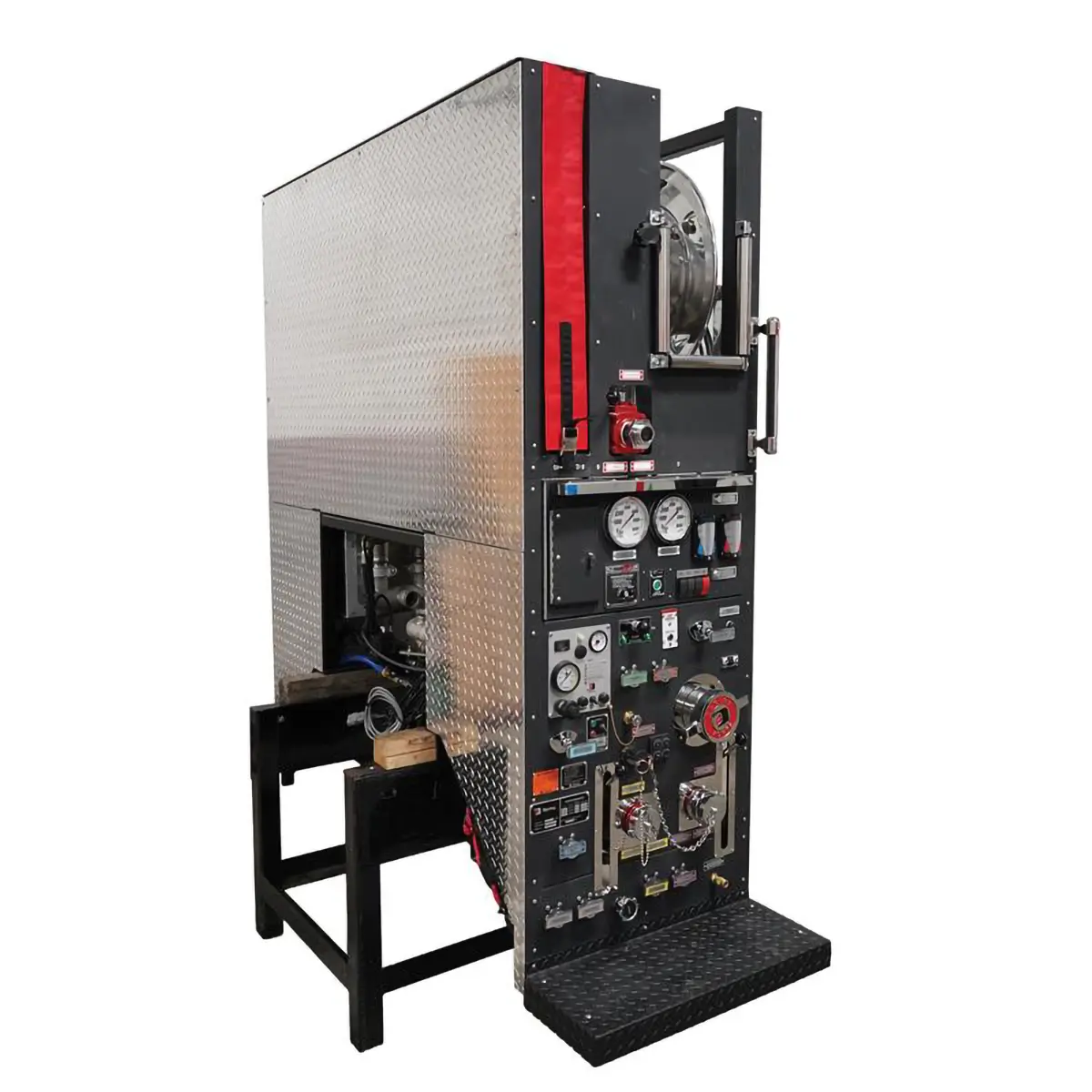

The increasing frequency and volatility of wildfire is contributing to a spike in demand for Type 3 Fire Apparatus. To address demand, Darley Tactical’s Engineering Team developed the M34 Module™. The M34 Module™ is designed in accordance with standards set forth in CAL FIRE’s Type 3 Wildland Fire Apparatus Specification. The M34 Module™ provides OEMs a turnkey price-competitive solution to compete on CAL FIRE bids and add on opportunities.

Darley standard 10-year warranty on pump and 1-year warranty on the module.

Main Fire Pump

• Darley JMP 500 GPM PTO driven 2-stage fire pump
• Pump Boss Max electronic pressure governor
• Fully welded structural steel square tubing module frame
• 4-1/2″ Compound Intake and Discharge Gauges
• Black coated Pump Panels with mirror finish trim plates
• Suction Relief Valve installed
• Stainless Steel Suction and Discharge plumbing
• IC Soft Glo Water Level Gauge on panel
• Darley 12V fluid-less rotary vane primer



Auxiliary Fire Pump

• 1-1/2 AGE24K engine-driven pump for Pump n Roll w/additional control panel for inside cab
• Start-stop control on the main pump panel and inside the cab with vernier throttle, gauge, and hour meter



Discharges

• 2.5″ left side panel discharge valve w/lever control on panel
• 2.5″ left rear discharge port – Plumbing only
• 2″ right rear discharge port – Plumbing only w/foam
• 2″ front bumper discharge port – Plumbing only w/foam
• 2″ valve with lever control for left crosslay w/foam
• 2″ valve with lever control for right crosslay w/foam
• 2″ valve with push-pull control for pump to tank fill/recirculate
• 1″ valve with lever control for 3/4″ hose on 150′ booster reel, with electric rewind and foam



Intakes

• 4″ intake with Darley 4″ NST chrome cap, on left side
• 3″ tank to pump valve w/electric over air shift control
• 2.5″ NST left side auxiliary inlet with lever-operated control
• 2.5″ NST right side auxiliary inlet with lever-operated control



Standard Features

• Foam proportioning system with dual start/stop controls
• Water and foam level gauges
• Foam refill system
• 3/4″ back pack fill valve with 1/4 turn knob control on panel
• Automatic pump overheat system
• Wheel chock compartment on passenger side
• Rotary multi-port master drain valve
• Anodes installed in both intake and discharge sides of the pump
• Pump test ports
• Embossed aluminum diamondplate running boards
• Includes passenger side compartment with hinged door and adjustable shelf
• Crosslay capacity: 150′ of 1-3/4″ hose per side



OEMs, please Request a Quote below for pricing and information.
