Deployable Expeditionary Fuel Handling System (DEFHS-192)
Deployable Expeditionary Fuel Handling System (DEFHS-192)
192 GPM Fuel Pump and Filtration System
DEFHS-192 Delivers Clean Fuel Where the Mission Demands it.
Combining high-capacity fuel transfer and filtration in a rugged, deployable package, the system enables rapid setup, reliable operation, and reduced logistics burden while protecting equipment from fuel contamination and maximizing mission readiness.
Connected Assembly
- Dimensions: 48.75″ x 50″ x 36″
- Weight (dry): 571 lbs.
- Tool-less connection points
Pump Assembly
- Dimensions: 48.75″ x 22.75″ x 36″
- Weight (dry): 270 lbs.
- 5 – On-board fuel tank
- Engine: Hatz 1B50
- Pump: Ohler Model 36
- On-board refueling capabilities
- 4 – Flip-up handles for maneuverability
- Recoil start (electric start upgrade available)
- 4 – Sling points
- 4 – Tie-down points

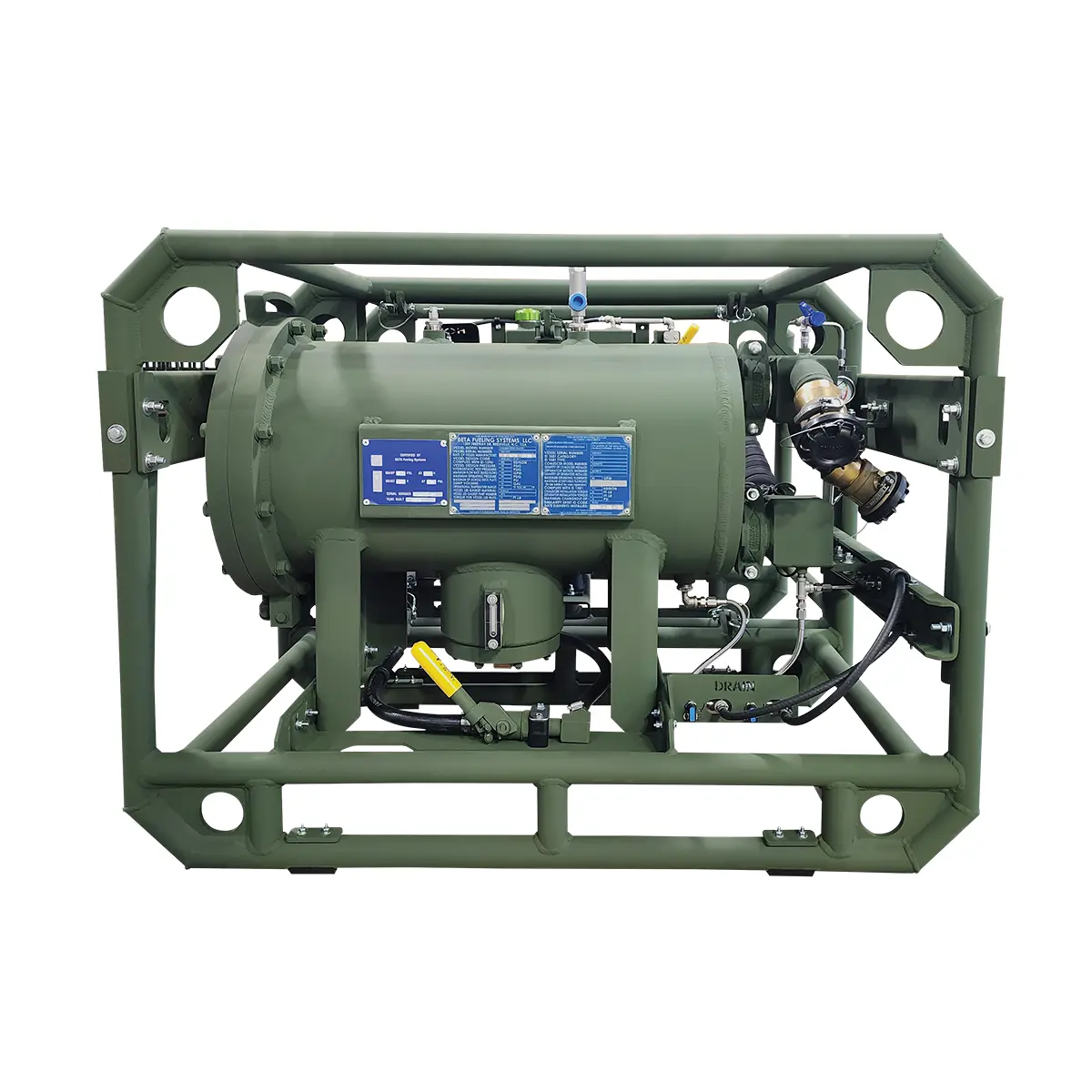

Separator Filter Assembly
- Dimensions: 48.75″ x 26″ x 36″
- Weight (dry): 295 lbs.
- 192 GPM capacity
- 2 – 2″ dry-lock discharges
- 1 – 3″ cam-lock intake
- 4 – Flip-up handles for maneuverability
- 4 – Sling points
- 4 – Tie-down points
