ZSP 2500-3000

Part Number: ZSP 2500

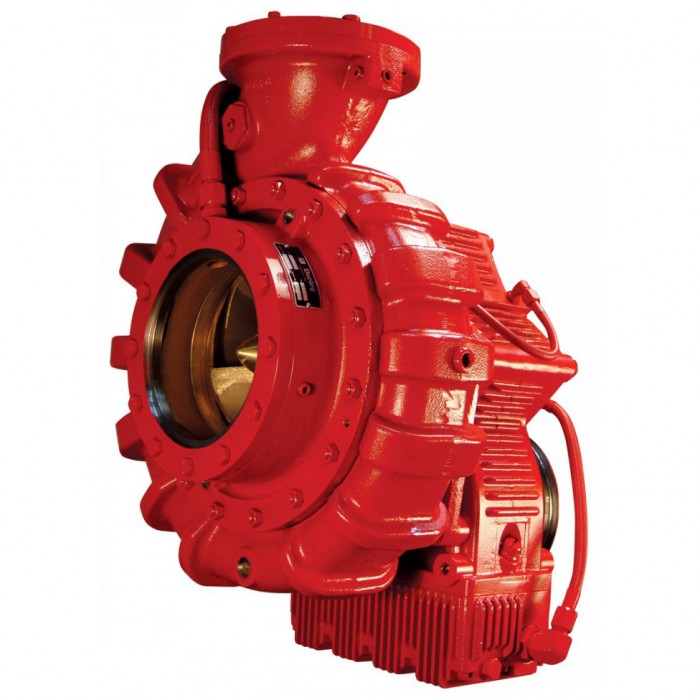

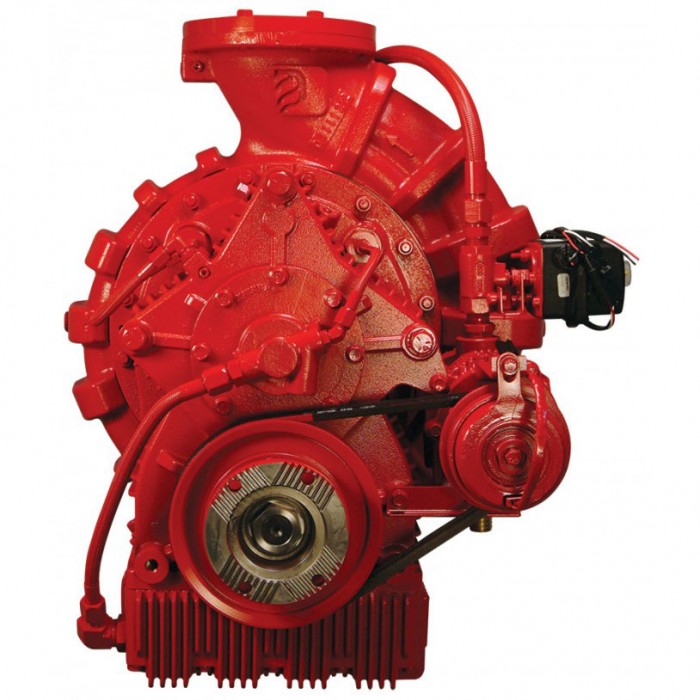

Single Stage, Centrifugal Pump, Single Suction Impeller, PTO Mounted

Industry’s Longest Warranty

  • 10-year manufacturer’s, 10-year parts and 3-year labor

Documents & Downloads
Performance

ZSP 2500

  • 2500 gpm (9463 L/M) @ 150 psi (10.3 bar)
  • 2500 gpm (9463 L/M) @ 165 psi (11.3 bar)
  • 1750 gpm (6624 L/M) @ 200 psi (13.8 bar)
  • 1250 gpm (4732 L/M) @ 250 psi (17.2 bar)
  • Using 1 – 8” or 3 – 6” suction hose

Rated at 2500 gpm for NFPA 1901 fire pump application



ZSP 3000

  • 3000 gpm (11356 LPM) at 100 psi (6.89 Bar)
  • 2100 gpm (7949 LPM) at 150 psi (10.3 Bar)
  • 1500 gpm (5678 LPM) at 200 psi (13.8 Bar)
  • Using 2 – 8” or 4 – 6” suction hose

Rated at 3000 gpm for NFPA 1901 fire pump application

Features
  • 6″ weld discharge
  • 8″ weld flange suction
  • Mechanical seal
  • MegaTrans™ transmission
  • 1550 companion flange
Motor
N/A
Engine
N/A
Weight

613 lbs. (278 kg)

Dimensions

23.61″L x 26.12″W x 30.66″H

Applications
  • Industrial
  • Chemical
  • Aerial
  • ARFF
  • Fire Boat
Options

Suction and Discharge Heads can be Built to Suit, Swept tee suction head with 8″ Victaulic or 8″ NH Threaded Couplings Salt Water Capable, Salt Water Capable

Technology
N/A
