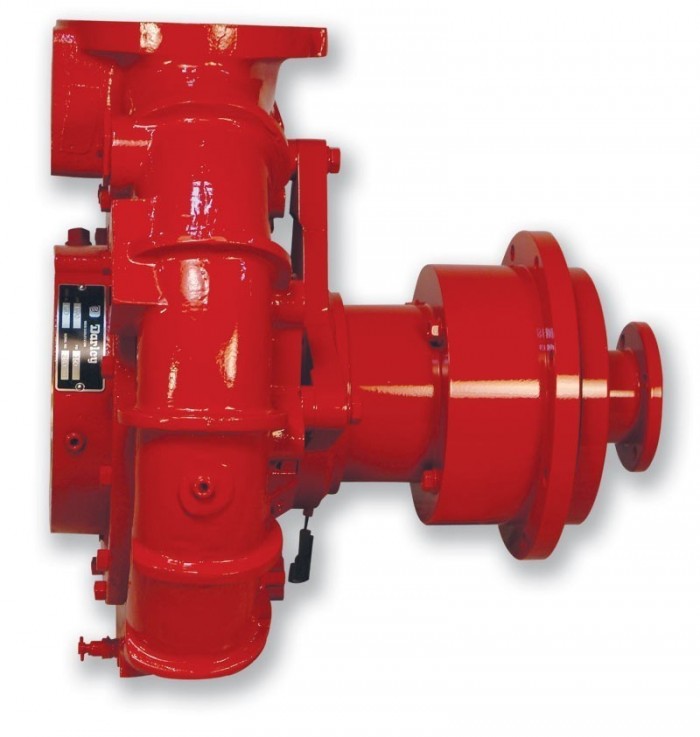

PSD 1000-1500 Silent Pak®
Part Number: PSD 1000
PSD 1000-1500 Silent Pak®
Part Number: PSD 1000
Single Stage, Centrifugal Pump, Single Suction Impeller, Direct (Gearless) Drive to Impeller, PTO Driven
Industry’s Longest Warranty
- 10-year manufacturer’s, 10-year parts and 3-year labor
Documents & Downloads
PDF Drawings
CAD Files
Operation Manuals
Order Forms
Sales Flyers
Warranties
Performance
PSD 1000
- 1000 gpm (3785 L/M) @ 150 psi (10.3 bar)
- 700 gpm (2646 L/M) @ 200 psi (13.8 bar)
- 500 gpm (1893 L/M) @ 250 psi (17.2 bar)
PSD 1250
- 1250 gpm (4731 L/M) @ 150 psi (10.3 bar)
- 875 gpm (3312 L/M) @ 200 psi (13.8 bar)
- 625 gpm (2365 L/M) @ 250 psi (17.2 bar)
PSD 1500
- 1500 gpm (5678 L/M) @ 150 psi (10.3 bar)
- 1050 gpm (3974 L/M) @ 200 psi (13.8 bar)
- 750 gpm (2839 L/M) @ 250 psi (17.2 bar)
Features
- 5″ NPT discharge
- 6″ NPT or weld suction flange
- Rotation: engine or opposite engine
- 1410 companion drive flange
Engine
N/A
Weight
225 lbs. (102 kg)
Dimensions
16″L x 19″W x 19″H
Applications
- Crash Fire Rescue
- Rescue Pumper
- Tanker
Options
N/A
Technology
N/A
