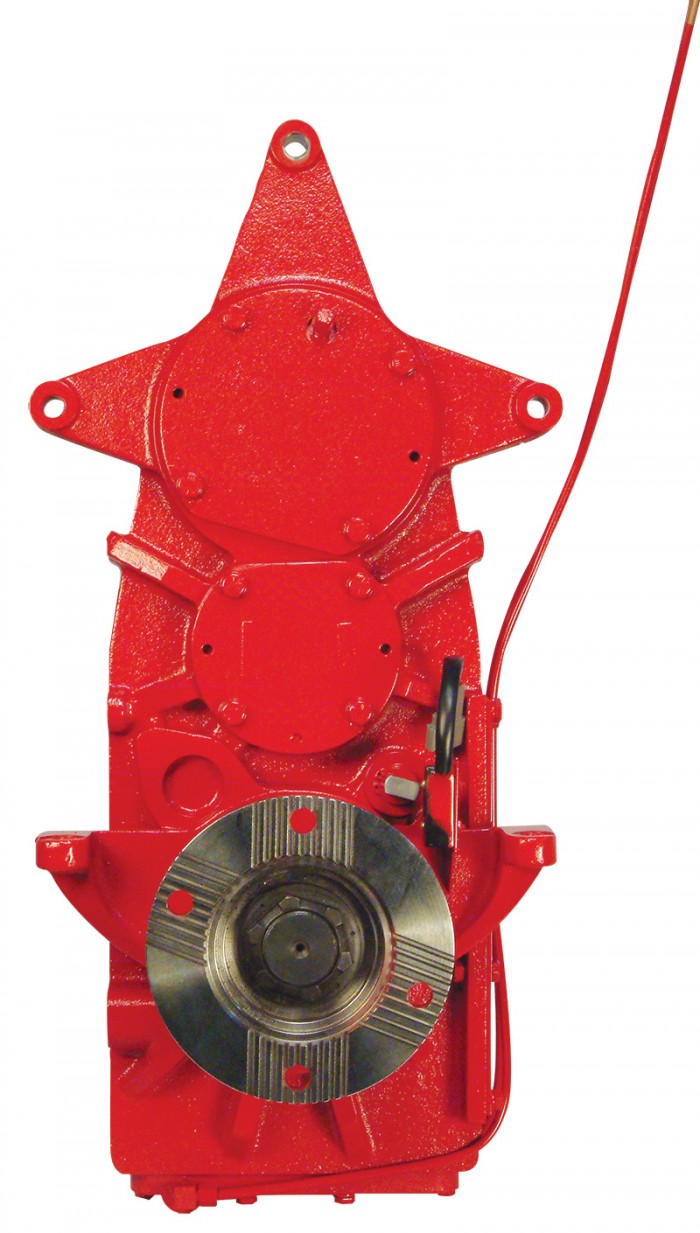

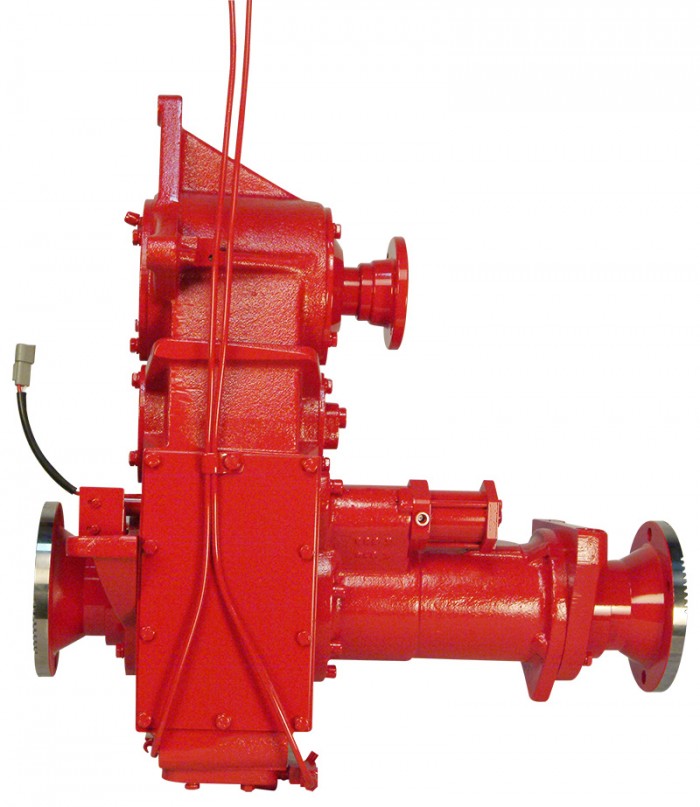

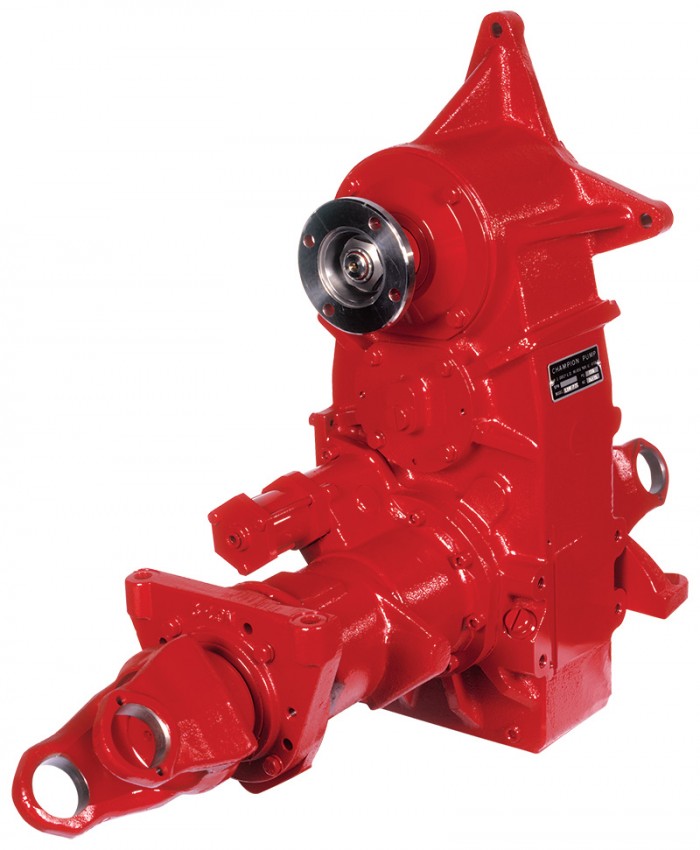

LDM-XHD-PTO – MAGNATRANS™
Part Number: LDM-XHD-PTO
LDM-XHD-PTO – MAGNATRANS™
Part Number: LDM-XHD-PTO
300 HP Split Shaft PTO, Torque Rating
Up to 19,300 ft. lbs.
Industry’s Longest Warranty
- 10-year manufacturer’s, 10-year parts and 3-year labor
Documents & Downloads
PDF Drawings
Repair Manuals
Operation Manuals
Miscellaneous Documents
Order Forms
Sales Flyers
Warranties
Performance
N/A
Features
- 2-1/2″ shaft
- Complete mounting kit and lock-on universal joint for front and rear shafts
- Air shift
- 1410 companion flange on output shaft
- Opposite engine rotation – Gear ratio: 0.93 to 1 thru 1.27 to 1
- Engine rotation – gear ratio: 1:34 to 1 thru 2.67 to1
Motor
N/A
Engine
N/A
Weight
290 lbs. (132 kg)
Dimensions
30″L x 14″W x 27″H
Applications
- Drives rear-mounted pumps
- Driveline for foam, generator, and hydraulic systems
- Pumper
Options
Electric Shift, Hydraulic drive flange, Parking brake
Technology
N/A
