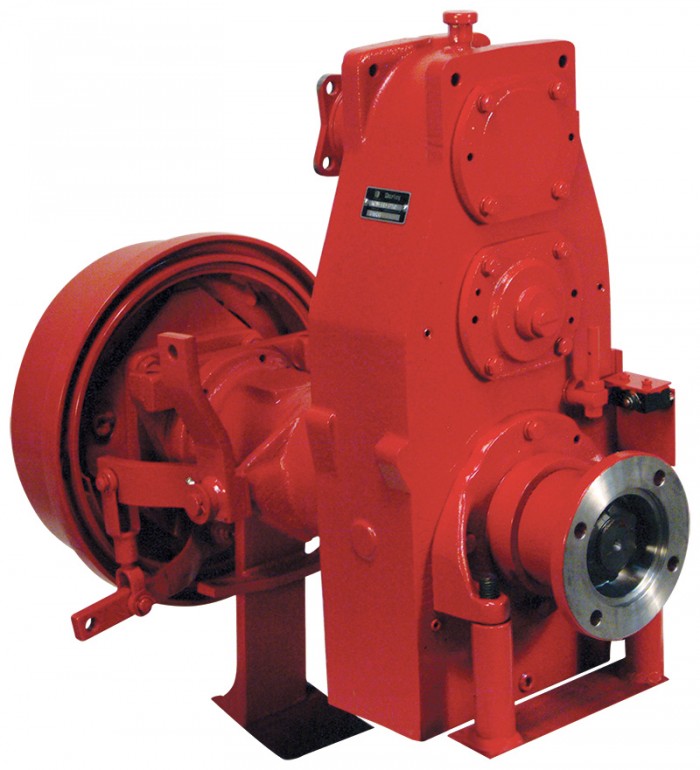

KDM-HD-PTO

Part Number: KDM-HD-PTO

300 HP Split Shaft PTO, Torque Rating

Up to 19,300 ft. lbs.

Industry’s Longest Warranty

  • 10-year manufacturer’s, 10-year parts and 3-year labor

N/A
  • 2-1/2″ shaft
  • Complete mounting kit and lock-on universal joint for front and rear shafts
  • Air shift
  • 1410 companion flange on the output shaft
  • Opposite engine rotation – gear ratio: 0.93 to 1 thru 1.20 to 1
  • Engine rotation – gear ratio: 1:62 to 1 thru 3.19 to1
N/A

225 lbs. (102 kg)

28″L x 9″W x 22″H

  • Drives rear mounted pumps
  • Driveline for foam, generator, and hydraulic systems
  • Pumper

Electric Shift,  Hydraulic drive flange, Parking brake

N/A
