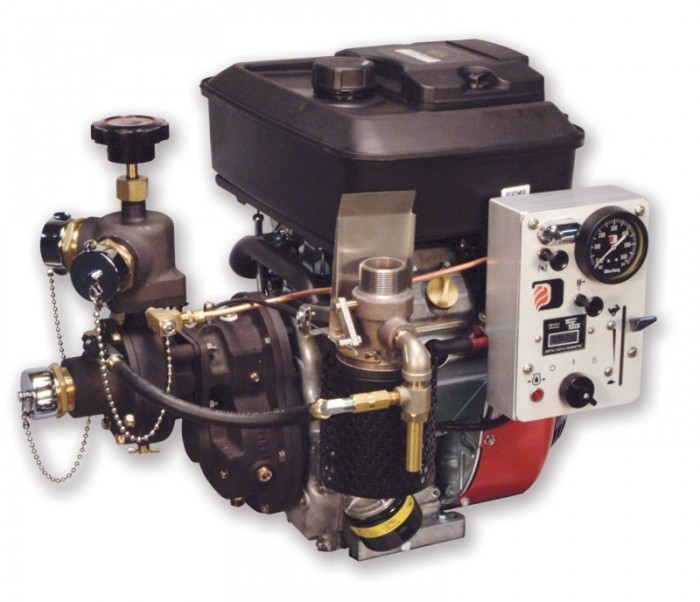

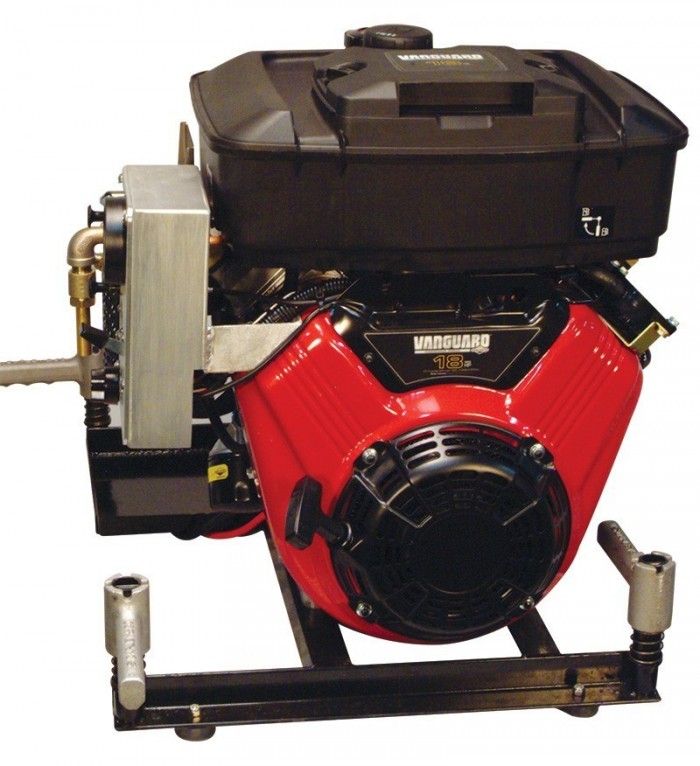

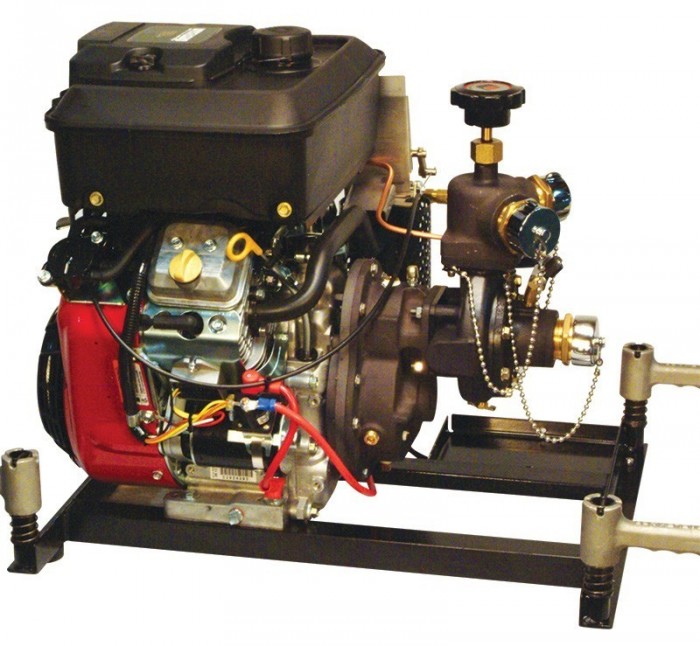

1-1/4AGE 18V Vanguard Portable Pump
Part Number: 1-1/4AGE 18V
1-1/4AGE 18V Vanguard Portable Pump
Part Number: 1-1/4AGE 18V
High Pressure, Low Volume, Gear Driven, Engine Mounted
Documents & Downloads
DWG Drawings
IGS 3D Files
Performance Curves
Repair Manuals
Operation Manuals
Order Forms
Sales Flyers
Performance
- 60 gpm (227 L/M) @ 230 psi (15.9 bar)
- 40 gpm (151 L/M) @ 315 psi (21.7 bar)
- 20 gpm (76 L/M) @ 360 psi (24.8 bar)
Features
- Aluminum alloy casing and discharge valve
- Aluminum alloy gear case and engine adapter
- Bronze impeller and seal ring
- Stainless steel impeller shaft
- Mechanical seal
- Heat-treated alloy steel helical gears
- Ball bearing construction pump and engine
- Built-in discharge check valve
- Adjustable discharge valve
- Fold-away carrying handles
- Exhaust primer
- 1-1/2″ NPT suction
- Two 1-1/2″ NPT or One 2-1/2″ NPT discharges
Engine
Briggs & Stratton Vanguard: 4 cycle, 18 HP, V-twin, OHV, 8.35 qt. fuel tank, replaceable oil filter, 34.75 cu. in. displacement, 12-volt starter, recoil rope start back-up, 16 amp regulated alternator
Weight
145 lbs. (66 kg)
Dimensions
27″L x 21″W x 25″H
Applications
- Booster Reel
- Wildland/Attack Fire Suppression
Options
Adapters, Battery, Caps, Deluxe Control Panel
