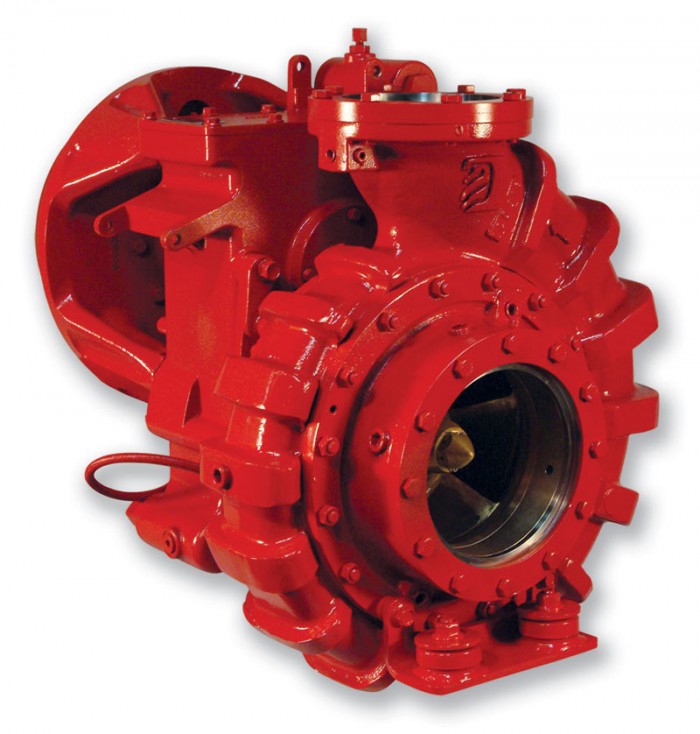

ZSF – IC 3000 – Marine Version
ZSF – IC 3000 – Marine Version
Single Stage, Centrifugal, Intra-Cab, Single Suction Impeller
Documents & Downloads
Performance Curves
Repair Manuals
Sales Flyers
Performance
- 3000 gpm (11356 L/M) @ 150 psi (10.3 bar)
- NFPA 1925 Type IV Marine Rating
Features
- Mechanical Seal
- 1550 companion flange
- Mega transmission
- 6″ weld discharge
- 8″ weld flange suction
Engine
N/A
Weight
605 lbs. (274 kg)
Dimensions
24″L x 27″W x 31″H
Applications
- Industrial
- Chemical
- Aerial
- ARFF

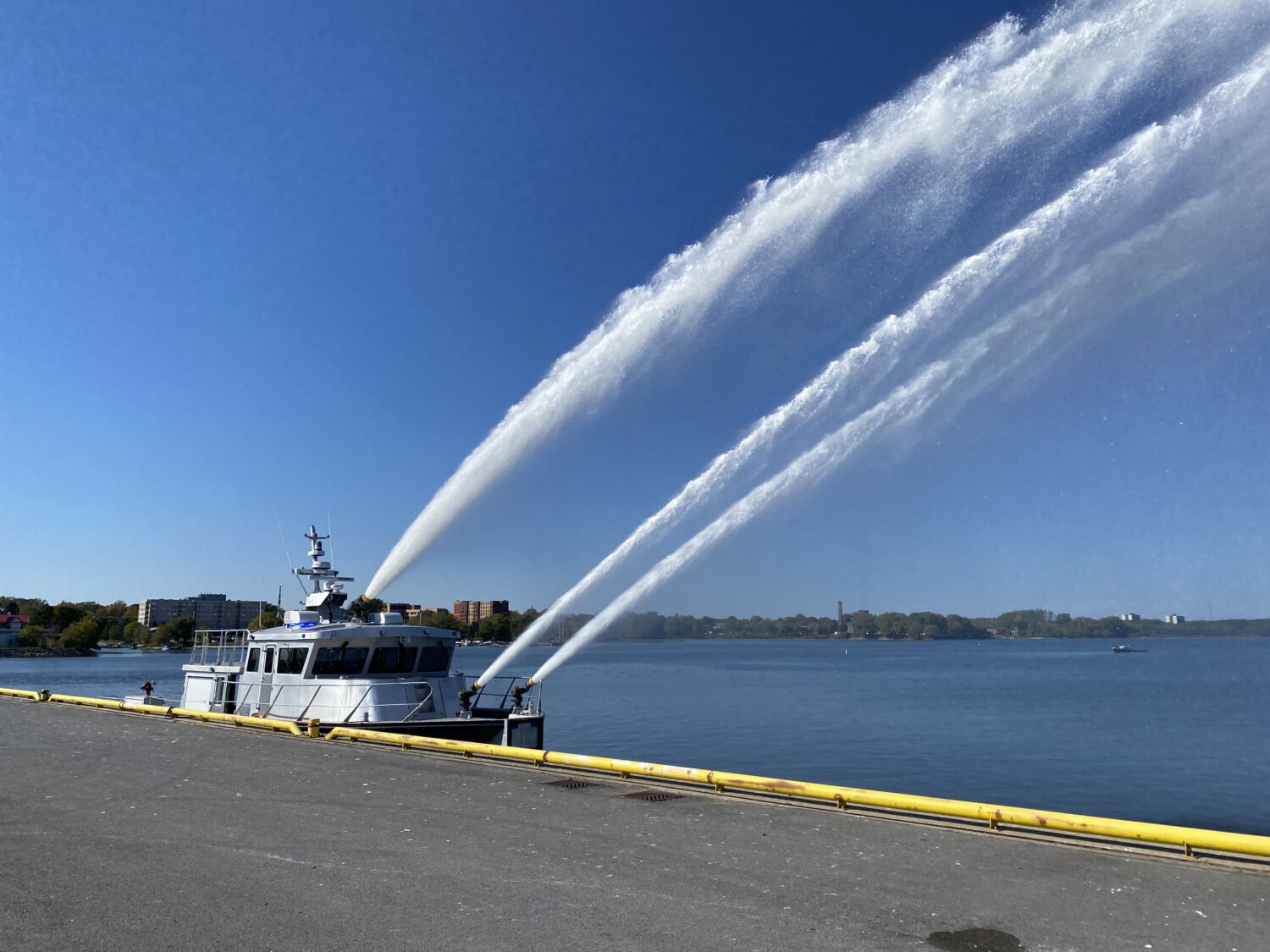

- Fire Boat
*Builder should always ensure engine front PTO has sufficient torque capacity for the intended application.
Options
N/A
Technology
N/A
