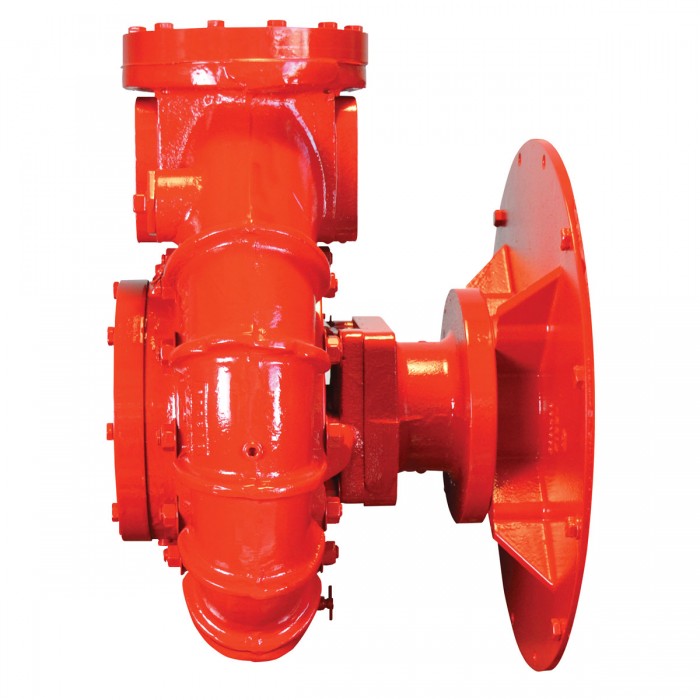

LSDE 1000 Direct Mount – Marine Version

Darley offers bronze pumps with 316 stainless shaft for marine applications. These marine firefighting pumps can be purchased to be fitted to a customer supplied marine engine or can be purchased pre-coupled and tested with a Darley supplied marine engine for both salt and freshwater applications.

DWG Drawings
IGS 3D Files
Performance Curves
Operation Manuals
Order Forms
  • 1000 gpm (3785 L/M) @ 150 psi (10.3 bar)
  • 700 gpm (2646 L/M) @ 200 psi (13.8 bar)
  • 500 gpm (1893 L/M) @ 250 psi (17.2 bar)
  • Vertically split, cast iron bronze fitted pump casing
  • Impellers opposed design to eliminate end thrust
  • Broached impeller (not keyed) for longer life
  • Oversized, deep groove radial type bearings for longer life
  • 10-tooth splined shaft for durability
  • 4″ NPT discharge
  • 5″ or 6″ weld flange suction
  • Uses standard SAE engine adapter
N/A
N/A

13.91” x 17 W x 21.16 H

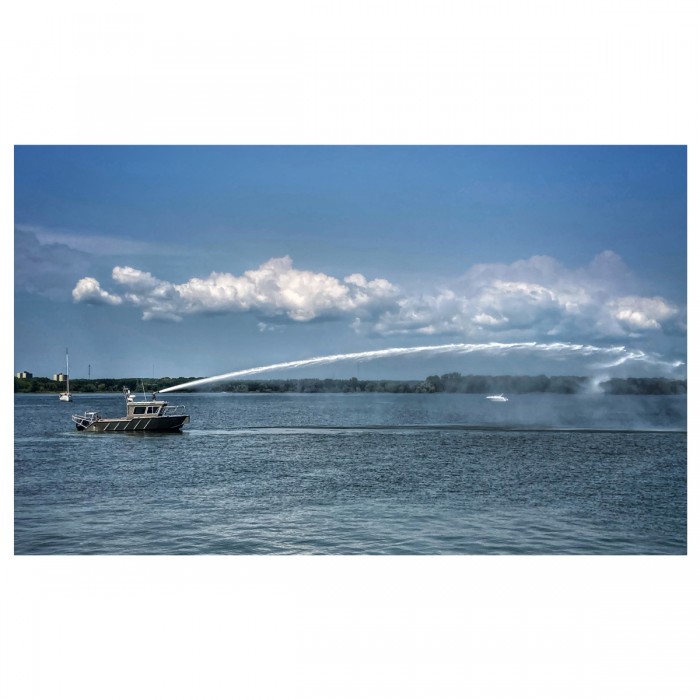

  • Fire Boat
N/A
N/A
