LDMBC






LDMBC

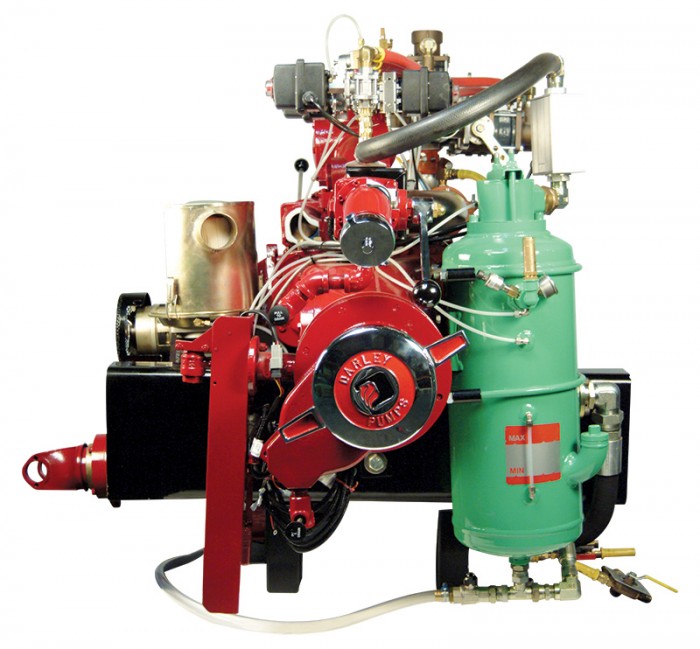

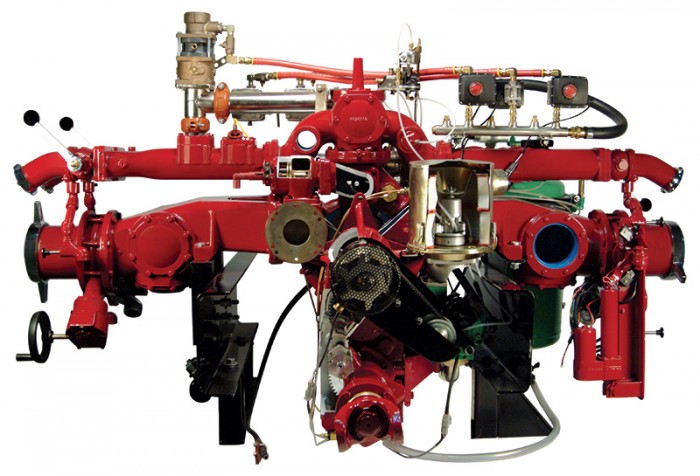

Single Stage, Centrifugal, Midship Mounted, Pump Forward
Documents & Downloads
Performance Curves
Operation Manuals
Order Forms
Sales Flyers
Performance
Simultaneous Water Performance
- Up to 1750 gpm (6624 L/M) @ 125 psi (8.6 bar)
- NFPA RATINGS FROM 1000 – 1750
Simultaneous Compressed Air Performance
- 220 gpm (832 L/M) @ 125 psi (8.6 bar)
Features
- LDMBC 1000-1750 pump assembly
- Four – 2-1/2″ NH, 1/4 turn, ball valves
- Two – 5″ or 6″ NH suction adapters and caps
- Discharge and suction companion flanges as needed
- 1610 or 1710 full round yokes standard
- Air shift
- AZ02900 220 cfm compressor package
- YE06101 CAFS manifold
- One – 2-1/2″ and Three 2″ flanged outlets
- Three – AZ02500 2″ CAFS discharge valve assemblies
- AZ02600 2-1/2″ CAFS discharge valve assembly
- AZ02301 1/2″ air valve manifold with air flow meter
- AutoCAFS™ Commander control system
Engine
N/A
Weight
2200 lbs. (997 kg)
Dimensions
40″L x 76″W x 46″H
Applications
- Aerial
- Pumper
- Rescue Pumper
- Pumper Tanker
Options
N/A
Technology
N/A
