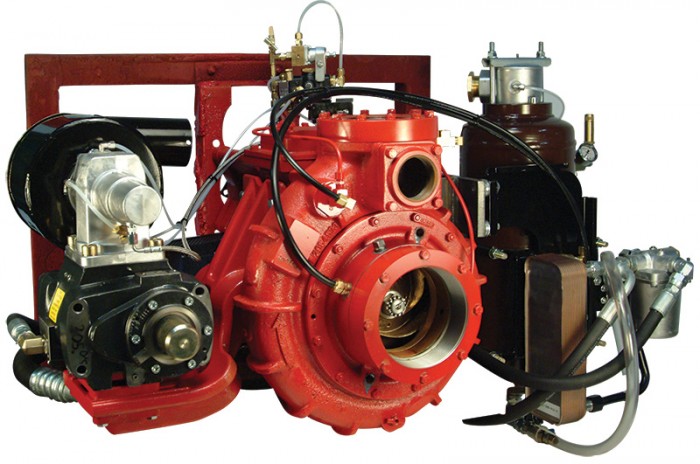

PSPBC 1000, 1250, 1500
PSPBC 1000, 1250, 1500
Single Stage, Centrifugal, PTO Driven
Documents & Downloads
PDF Drawings
CAD Files
Operation Manuals
Sales Flyers
Performance
PSPBC 1000
- 1000 gpm (3785 L/M) @ 150 psi (10.3 bar)
- 700 gpm (2646 L/M) @ 200 psi (13.8 bar)
- 500 gpm (1893 L/M) @ 250 psi (17.2 bar)
PSPBC 1250
- 1250 gpm (4731 L/M) @ 150 psi (10.3 bar)
- 875 gpm (3312 L/M) @ 200 psi (13.8 bar)
- 625 gpm (2365 L/M) @ 250 psi (17.2 bar)
PSPBC 1500
- 1500 gpm (5678 L/M) @ 150 psi (10.3 bar)
- 1050 gpm (3974 L/M) @ 200 psi (13.8 bar)
- 750 gpm (2839 L/M) @ 250 psi (17.2 bar)
Features
- 5″ NPT discharge flange
- 6″ NPT or weld suction flange
- PS pump assembly
- Mechanical seal
- Electric clutch for 220 cfm compressor package
- Rotation: Engine
- Belt-driven compressor package
- 1310/1410 drive flange
Engine
N/A
Weight
834 lbs. (378 kg)
Dimensions
29″L x 43″W x 32″H
Applications
- Aerial
- Pumper
- Wildland/Urban Interface
- Rescue Pumper
Options
N/A
Technology
N/A
