KSPBC 1000
KSPBC 1000

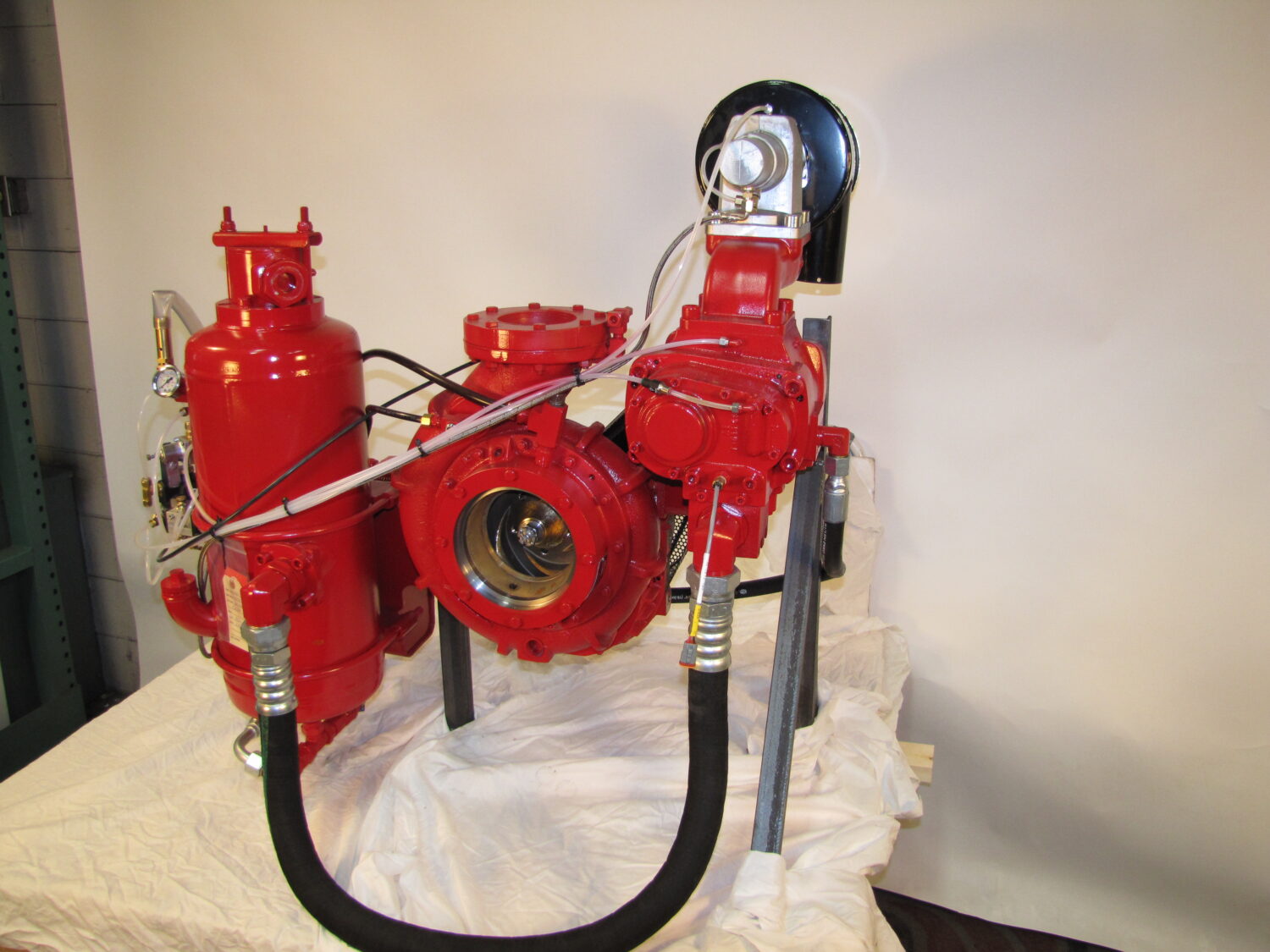

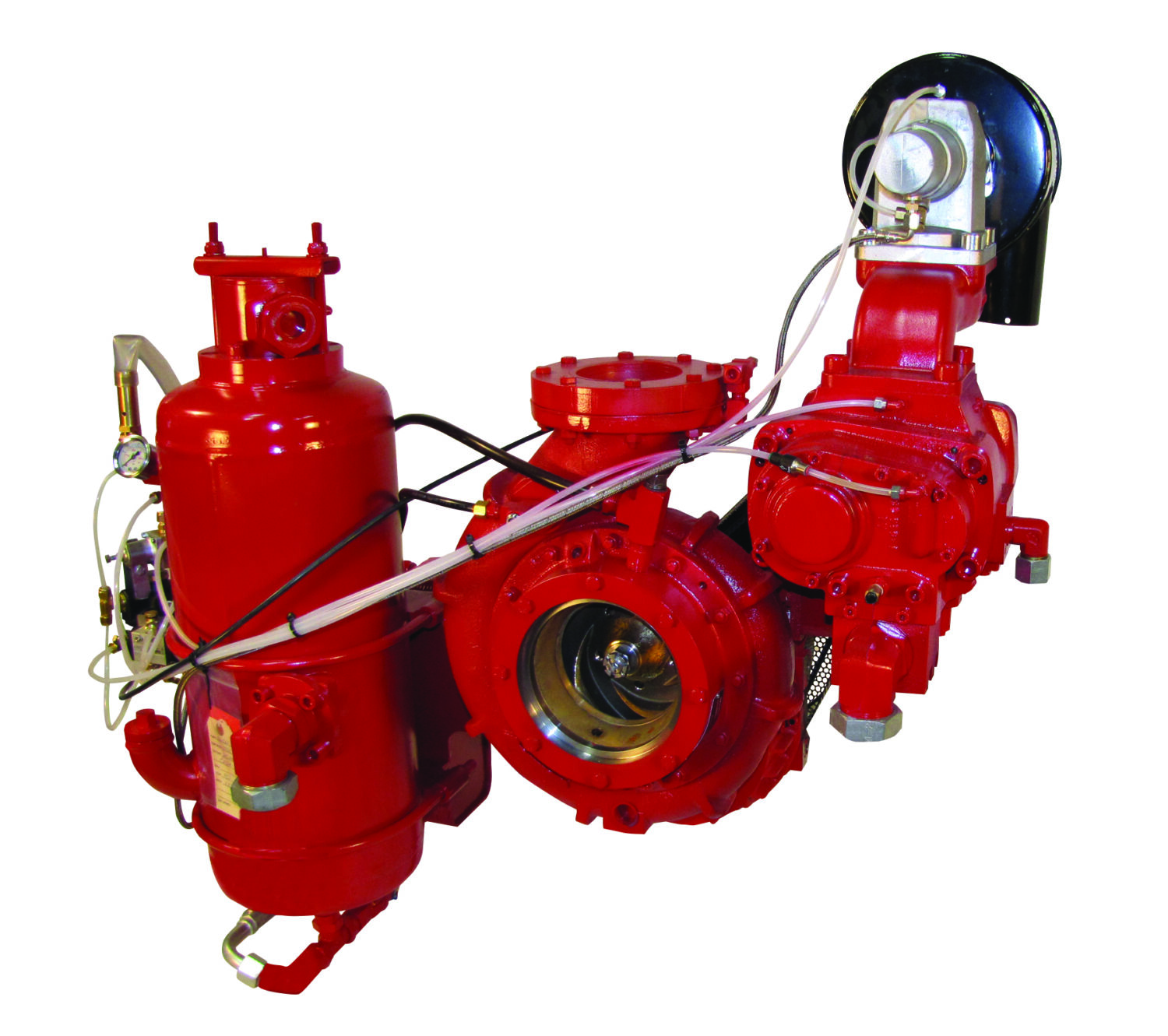

PTO Driven Pump with 220 CFM CAFS
Documents & Downloads
PDF Drawings
CAD Files
Operation Manuals
Sales Flyers
Performance
- 1000 gpm (3785 L/M) @ 150 psi (10.3 bar)
- 700 gpm (2646 L/M) @ 200 psi (13.8 bar)
- 500 gpm (1893 L/M) @ 250 psi (17.2 bar)
Simultaneous Water Performance
- 1000 gpm (3785 L/M) @ 125 psi (8.6 bar)
- NFPA ratings from 500 – 1000
Simultaneous Compressed Air Performance
- 220 gpm (832 L/M) @ 125 psi (8.6 bar
Features
- 4″ NPT discharge flange
- 5″ or 6″ NPT or weld suction flange

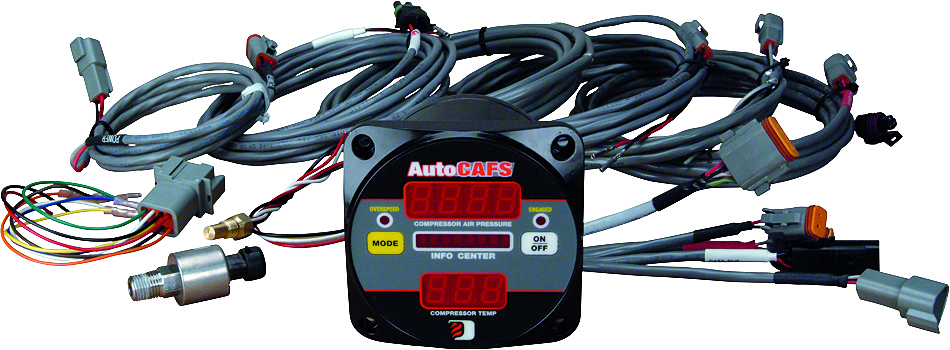

- AutoCAFS Commander Controls
- Electric clutch for 220 cfm compressor package
- Rotation: Engine
- Belt driven compressor package
- 1310/1410 drive flange
Motor
N/A
Engine
N/A
Weight
704 lbs
Dimensions
24.3″L x 24.19″W x 37.06″H, per drawing DKD0414
Applications
- Aerial
- Pumper
- Wildland/Urban Interface
- Rescue Pumper
Options
N/A
Technology
N/A
