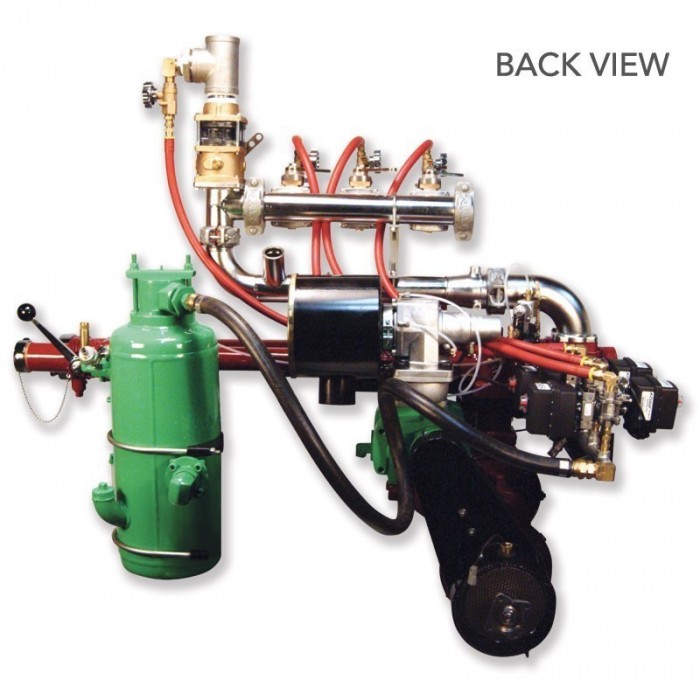

HMBC 500/220
HMBC 500/220
Single Stage, Centrifugal, PTO Driven
Documents & Downloads
Operation Manuals
Order Forms
Sales Flyers
Performance
- 500 gpm (1892 L/M) @ 150 psi (10.4 bar)
- 350 gpm (1324 L/M) @ 200 psi (13.7 bar)
- 250 gpm (946 L/M) @ 250 psi (17.2 bar)
Simultaneous CAFS Flow
- 440 gpm @ 220 cfm @ 125 psi
Features
Assembly #1
- 3″ NPT discharge flange
- 4″ NPT suction flange
- Mechanical seal
- Rotation: Engine
- Pump rear of gearcase
- Lock on drive yoke
- Output shaft for AZ02960, clutched 220 cfm, belt-driven compressor package
Assembly #2
- Two – 2-1/2″ NPT discharge
- Three – 4″ NPT suction taps (HM500)
- Output shaft for AZ02960, clutched 220 cfm, belt-driven compressor package
- Rotation: Engine
- Gear ratio: 2.85 to 1 or 3.95 to 1
- Heat-treated gears are standard
- Tachometer/speed counter output
- Lock on drive yoke
- Mounting angles
- Suction elbow
- Built-in discharge check valve
Assembly #3
- 3″ NPT discharge flange
- 4″ NPT suction flange (HM500)
- Two – 2-1/2″ NH, 1/4 turn, ball, valves, and caps
- Two – 4″ NH suction adapters and caps (HM500)
- Two – 2-1/2″ NPT tapped openings on discharge manifolds
- Two – 2-1/2″ NPT tapped openings on suction
- Output shaft for AZ02960, clutched 220 cfm, belt-driven compressor package
- Rotation: Engine
- Pump rear of gearcase
- Lock on drive yoke
- Suction elbow
Motor
N/A
Engine
N/A
Weight
810 lbs. (367 kg)
Dimensions
38″L x 76″W x 51-1/2″H
Applications
- Wildland/Urban Interface
- Rescue Pumper
- Initial Attack
Options
N/A
Technology
N/A
