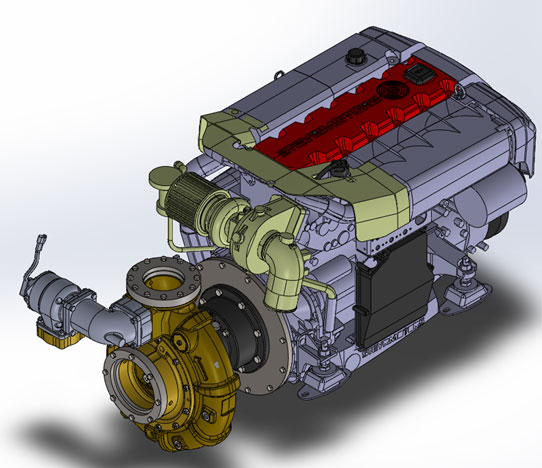

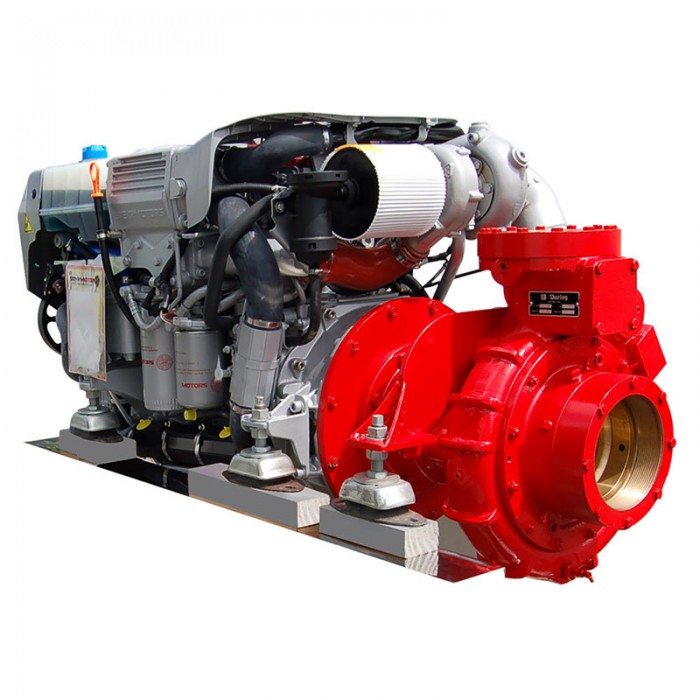

PSDE 1500 Direct Mount – Diesel Marine
PSDE 1500 Direct Mount – Diesel Marine
Documents & Downloads
PDF Drawings
CAD Files
Performance Curves
Install Instructions
Performance
- 1500 gpm (5678 L/M) @ 150 psi (10.3 bar)
Features
PUMP
- 5” NPT or weld flanged discharge6” NPT, weld or Victaulic suctionAvailable with Bronze casing & 316 Stainless shaft
ENGINE
- Steyr SE266E40
- 258HP
- Direct-injection Diesel engine
- 4-stroke, turbocharged
- 3.2 lt displacement
- 85 mm bore, 94 mm stroke
- Dual circuit cooling / Internal & Fresh water cooling
- CAN bus J1939
- SAE #4 Bell Housing
Motor
N/A
Engine
N/A
Weight
1000 lbs. (453 KG)
Dimensions
58″ x 26″ x 30″
Applications
- Fireboat
Options
N/A
Technology
N/A
