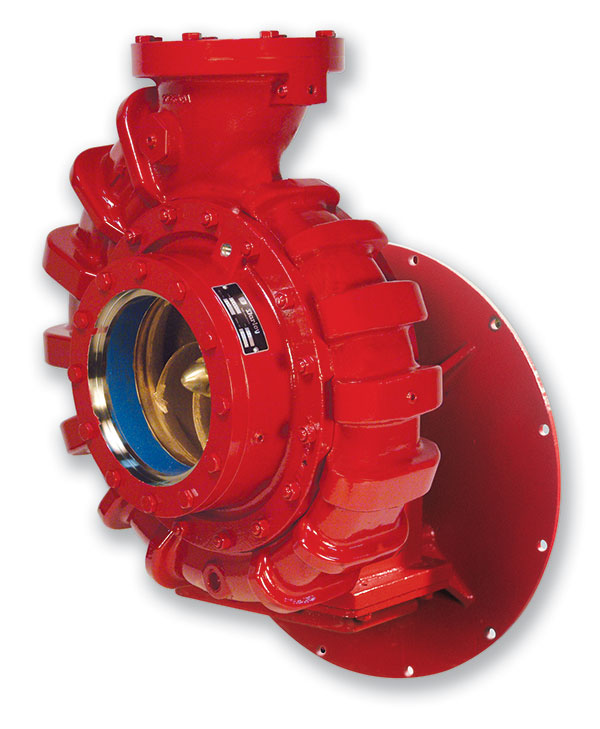

ZSF – IC 2500-3000
ZSF – IC 2500-3000
Single Stage, Centrifugal, Intra-Cab, Single Suction Impeller
Documents & Downloads
Performance Curves
Sales Flyers
Performance
ZSF-IC 2500
- 2500 gpm (9463 L/M) @ 150 psi (10.3 bar)
- 2500 gpm (9463 L/M) @ 165 psi (11.3 bar)
- 1750 gpm (6624 L/M) @ 200 psi (13.8 bar)
- 1250 gpm (4732 L/M) @ 250 psi (17.2 bar)
- Using 1 – 8″ or 3 – 6″ suction hose
- Rated at 2500 gpm for NFPA 1901 fire pump application
ZSF-IC 3000
- 3000 gpm (11,356 L/M) @ 100 psi (6.9 bar)
- 2100 gpm (7949 L/M) @ 150 psi (10.3 bar)
- 1500 gpm (5678 L/M) @ 200 psi (13.8 bar)
- Using 2 – 8″ or 4 – 6″ suction hose
- Rated at 3000 gpm for NFPA 1901 fire pump application
ZSF – IC International Rating
- 2642 gpm (10000 L/M) @ 217 psi (15 bar)
Features
- Mechanical Seal
- 1550 companion flange
- Mega transmission
- 6″ weld discharge
- 8″ weld flange suction
Motor
N/A
Engine
N/A
Weight
605 lbs. (274 kg)
Dimensions
24″L x 27″W x 31″H
Applications
- Industrial
- Chemical
- Aerial
- ARFF
- Fire Boat*Builder should always ensure engine front PTO has sufficient torque capacity for the intended application
Options
N/A
Technology
N/A
