2-1/2AGD
Part Number: 2 1/2AGD
2-1/2AGD
Part Number: 2 1/2AGD

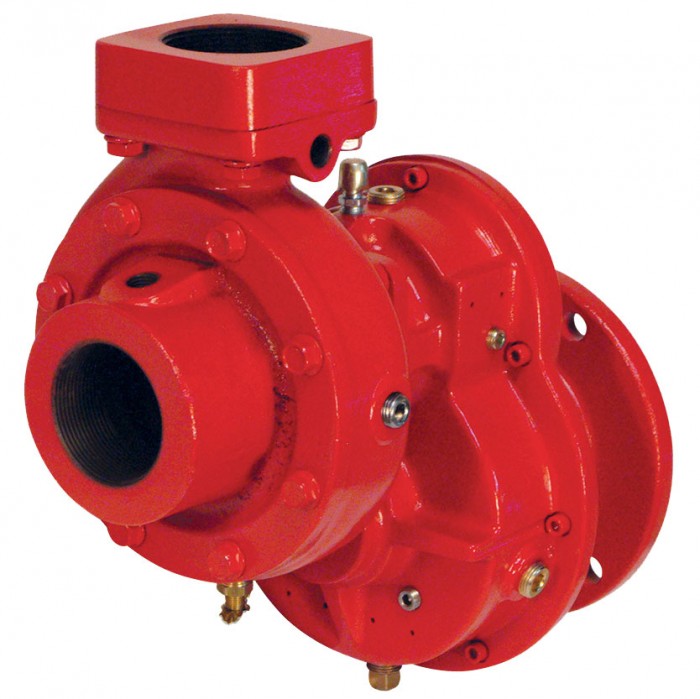

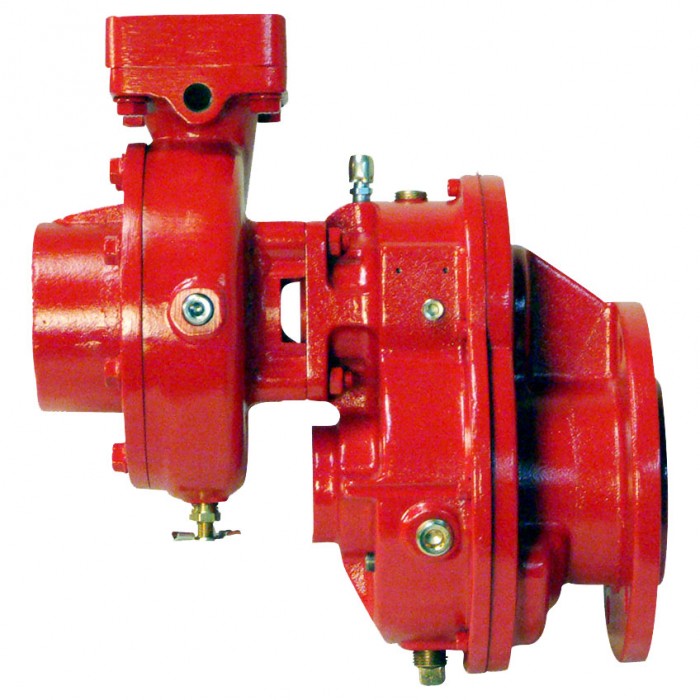

Single Stage, Centrifugal, Direct PTO Mounted, Gear Driven
Industry’s Longest Warranty
- 10-year manufacturer’s, 10-year parts and 3-year labor
Documents & Downloads
PDF Drawings
DWG Drawings
Repair Manuals
Operation Manuals
Sales Flyers
Warranties
Performance
- 250 gpm (946 L/M) @ 150 psi (10.3 bar)
- 175 gpm (662 L/M) @ 200 psi (13.8 bar)
- 125 gpm (473 L/M) @ 250 psi (17.2 bar)
Features
- Aluminum alloy casing
- Aluminum alloy gear case
- Bronze impeller and wear rings
- Stainless steel impeller shaft
- Heat-treated alloy steel helical gears
- Ball bearing construction
- Adapters for direct mount
- Mechanical seal
- 2-1/2″ NPT suction
- 2-1/2″ NPT discharge
Engine
N/A
Weight
50 lbs. (23 kg)
Dimensions
12″L x 9″W x 14″H
Applications
- Mini Pumper
- Tanker
- Wildland/Attack Fire
Options
N/A
Technology
N/A
