LSP 500-1000
Part Number: LSP500
LSP 500-1000
Part Number: LSP500
Single Stage, Centrifugal, PTO Driven
Industry’s Longest Warranty
- 10-year manufacturer’s, 10-year parts and 3-year labor
Documents & Downloads
CAD Files
Performance Curves
Operation Manuals
Order Forms
Sales Flyers
Warranties
Performance
LSP 500
- 500 gpm (1893 L/M) @ 150 psi (10.3 bar)
- 350 gpm (1325 L/M) @ 200 psi (13.8 bar)
- 250 gpm (946 L/M) @ 250 psi (17.2 bar)
LSP 750
- 750 gpm (2839 L/M) @ 150 psi (10.3 bar)
- 525 gpm (1987 L/M) @ 200 psi (13.8 bar)
- 375 gpm (1419 L/M) @ 250 psi (17.2 bar)
LSP 1000
- 1000 gpm (3785 L/M) @ 150 psi (10.3 bar)
- 700 gpm (2646 L/M) @ 200 psi (13.8 bar)
- 500 gpm (1893 L/M) @ 250 psi (17.2 bar)
Features
- 4″ or 5″ NPT or weld discharge flanges
- 5″ or 6″ NPT or weld suction flanges
- Rotation: engine or opposite engine
- 1410 lock on yoke
- Mounting angles

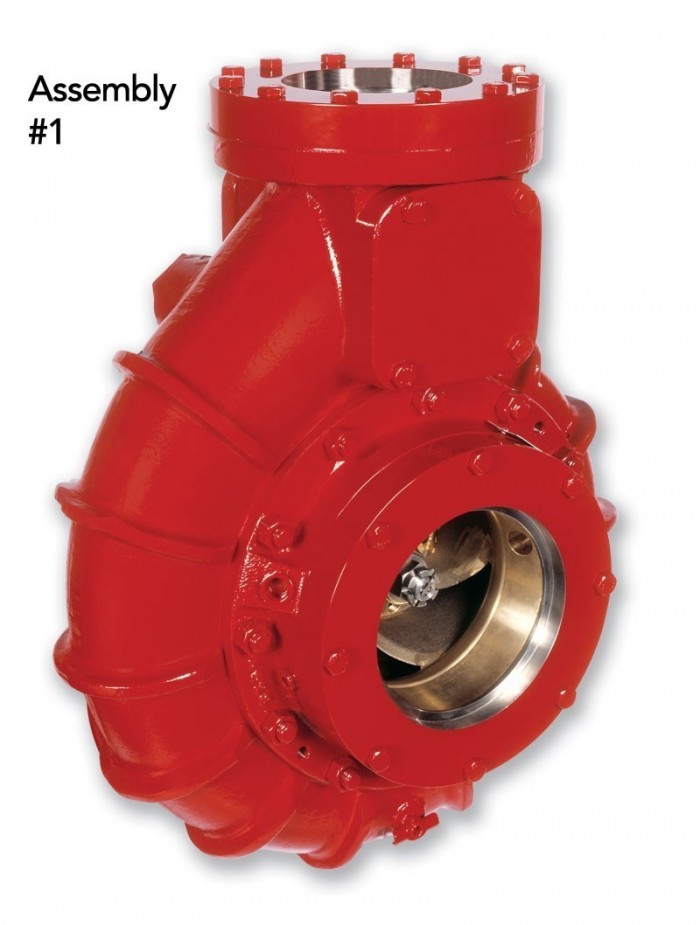

Assembly #1:
- 2 gear case
Assembly #2:
- Suction elbow
- Discharge head with check valve
Assembly #3:
- Suction elbow and suction manifold with nipple
- Discharge head with check valve
- Discharge manifold & discharge valves
Engine
N/A
Weight
N/A
Dimensions
ASSY #1: 18″L x 17″W x 26″H, 325 lbs. (148 kg)
ASSY #2: 29″L x 17″W x 39″H, 435 lbs. (197 kg)
ASSY #3: 29″L x 84″W x 39″H, 670 lbs. (304 kg)
Applications
- Mini Pumper
- Pumper Tanker
- Tanker
- Wildland/Attack Fire
Options
N/A
Technology
N/A
