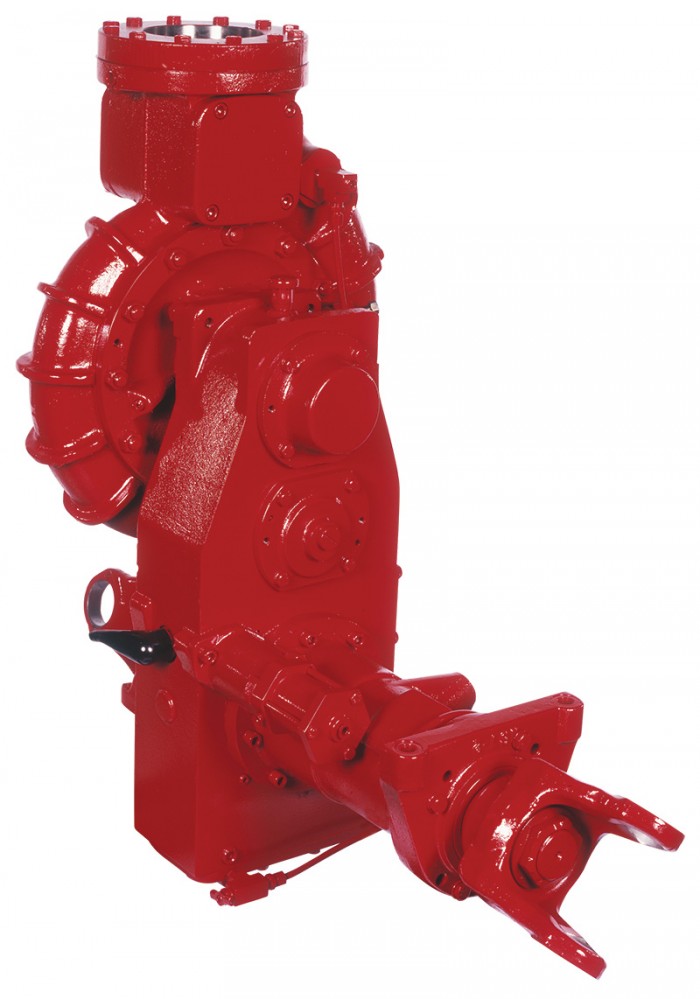

LSM 500-1000
Part Number: LSM 500.00
LSM 500-1000
Part Number: LSM 500.00
Single Stage, Centrifugal Single Suction Impeller, Midship Mounted
Industry’s Longest Warranty
- 10-year manufacturer’s, 10-year parts and 3-year labor
Documents & Downloads
DWG Drawings
IGS 3D Files
Performance Curves
Operation Manuals
Order Forms
Sales Flyers
Warranties
Performance
LSM 500
- 500 gpm (1893 L/M) @ 150 psi (10.3 bar)
- 350 gpm (1325 L/M) @ 200 psi (13.8 bar)
- 250 gpm (946 L/M) @ 250 psi (17.2 bar)
LSM 750
- 750 gpm (2839 L/M) @ 150 psi (10.3 bar)
- 525 gpm (1987 L/M) @ 200 psi (13.8 bar)
- 375 gpm (1419 L/M) @ 250 psi (17.2 bar)
LSM 1000
- 1000 gpm (3785 L/M) @ 150 psi (10.3 bar)
- 700 gpm (2646 L/M) @ 200 psi (13.8 bar)
- 500 gpm (1893 L/M) @ 250 psi (17.2 bar)
Features
- 4″ NPT discharge
- 5″ or 6” NPT or weld flange suction
- 1610 or 1710 full round yokes standard
- Air shift
Engine
N/A
Weight
398 lbs. (180 kg)
Dimensions
30″L x 17″W x 30″H
Applications
- Mini Pumper
- Pumper Tanker
- Tanker
- Wildland/Attack Fire
Options
Complete discharge and suction manifold, Available as an LSMH high-pressure pump, Electric over air shift
Technology
N/A
