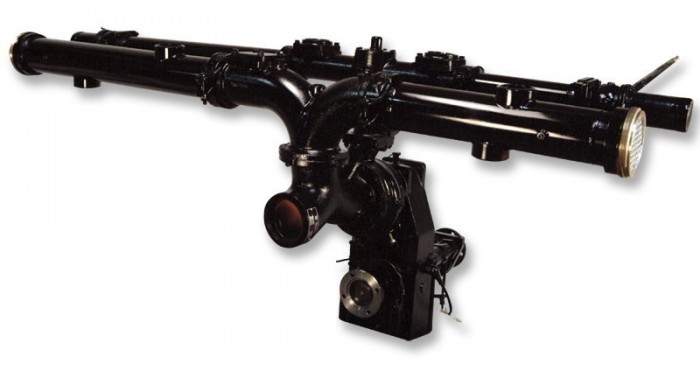

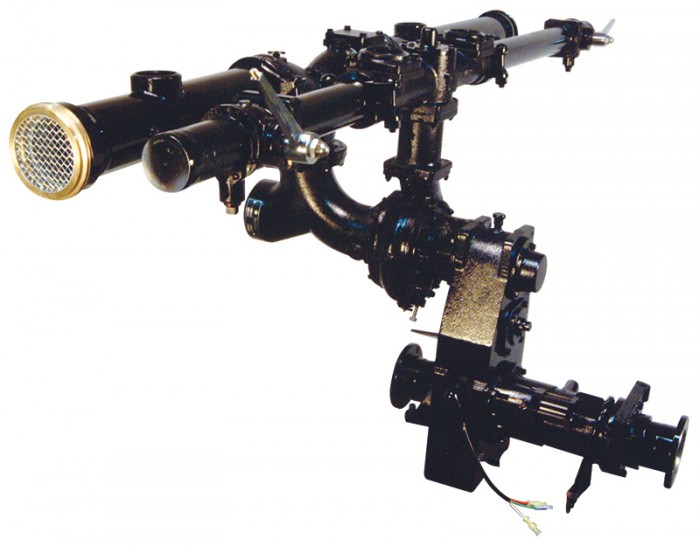

KHM 500
Part Number: KHM 500
KHM 500
Part Number: KHM 500
Single Stage, Centrifugal, Single Suction Impeller, Midship Mounted
Industry’s Longest Warranty
- 10-year manufacturer’s, 10-year parts and 3-year labor
Documents & Downloads
DWG Drawings
IGS 3D Files
Performance Curves
Operation Manuals
Order Forms
Sales Flyers
Warranties
Performance
- 500 gpm (1893 L/M) @ 150 psi (10.3 bar)
- 350 gpm (1325 L/M) @ 200 psi (13.8 bar)
- 250 gpm (946 L/M) @ 250 psi (17.2 bar)
Features
- 1610 or 1710 full round yokes standard
- 19″ max. driveline drop
- Air shift
Assembly #1
- One 3″ NPTF outlet
- One 4″ NPTF inlet
- Companion flanges
Assembly #2
- Three 4″ NPTF inlet
- One 4″ tank to pump suction opening
- Two 2-1/2″ NPT discharge openings
- Discharge head check valve
- Suction elbow and tee
Assembly #3
- Two 2-1/2″ NH 1/4 turn, ball, self-locking valves and caps
- Two 4″ NH suction adapters and caps
- Two 2-1/2″ NPT suction openings
- One 4″ tank to pump suction opening
- Two 2-1/2″ NPT discharge openings
- Body width: 70″ – 72″
- Complete
Engine
N/A
Weight
650 lbs. (295 kg)
Dimensions
36″L x Body Width x 48″H
Applications
- Mini Pumper
- Pumper Tanker
- Wildland/Attack Fire
Options
Available as a KHMH high pressure pump with pressures up to 600 psi
