HEF11H DOLPHIN™
Part Number: HEF11HDOLPHIN
HEF11H DOLPHIN™
Part Number: HEF11HDOLPHIN

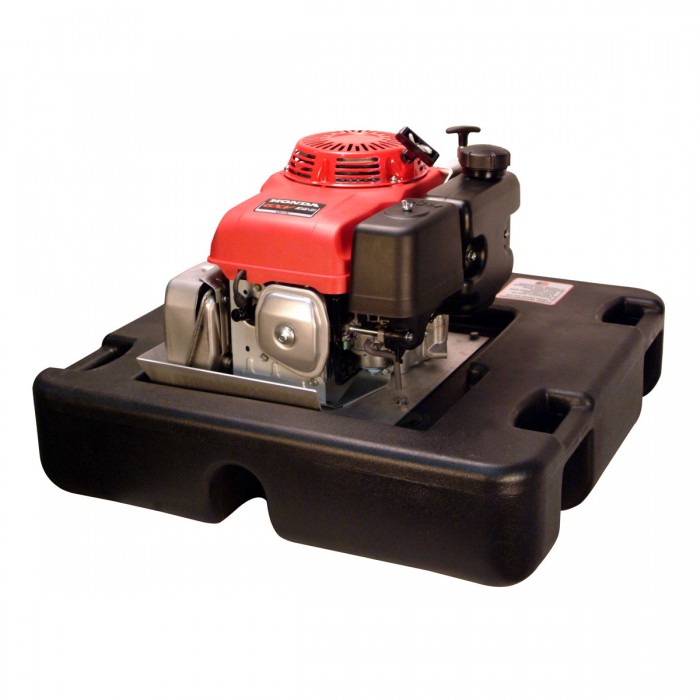

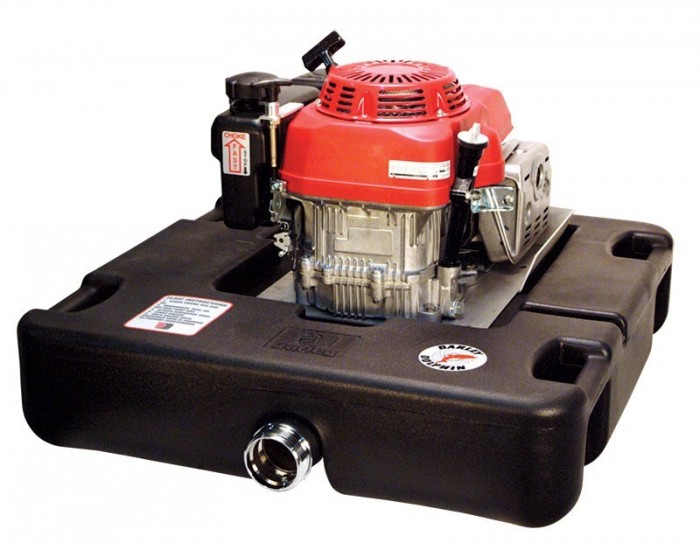

HEF 11H Dolphin Floating Pump, Hi-Volume, Self Priming
Documents & Downloads
PDF Drawings
Performance Curves
Operation Manuals
Sales Flyers
Performance
- 370 gpm (1400 L/M) @ 15 psi (1.0 bar)
- 250 gpm (946 L/M) @ 40 psi (2.8 bar)
- 200 gpm (757 L/M) @ 45 psi (3.1 bar)
- 100 gpm (378 L/M) @ 60 psi (4.1 bar)
Features
- High volume, self-priming, floating pump
- Anodized aluminum alloy pump casing
- Bronze impeller
- 4″ screened suction inlet
- 2-1/2″ NH outlet
- 2011 Carb Compliant
Motor
N/A
Engine
Honda: GVX390, 11 HP, 2.2 qt. fuel tank, OHV
Weight
120 lbs. (54 kg)
Dimensions
33″L x 30″W x 20″H
Applications
- Booster Tank Fill
- Transfer and Supply
Options
N/A
Technology
N/A
