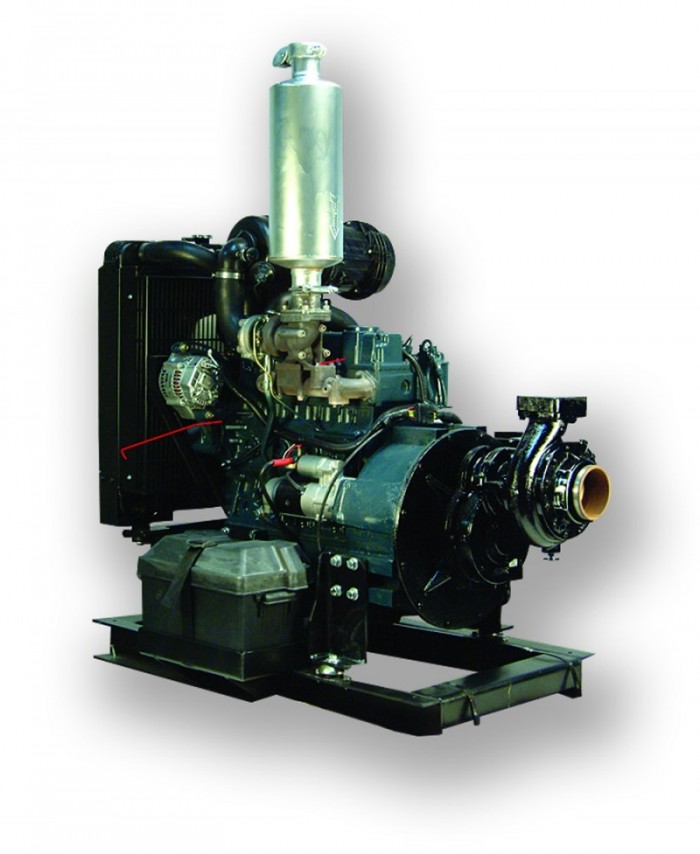

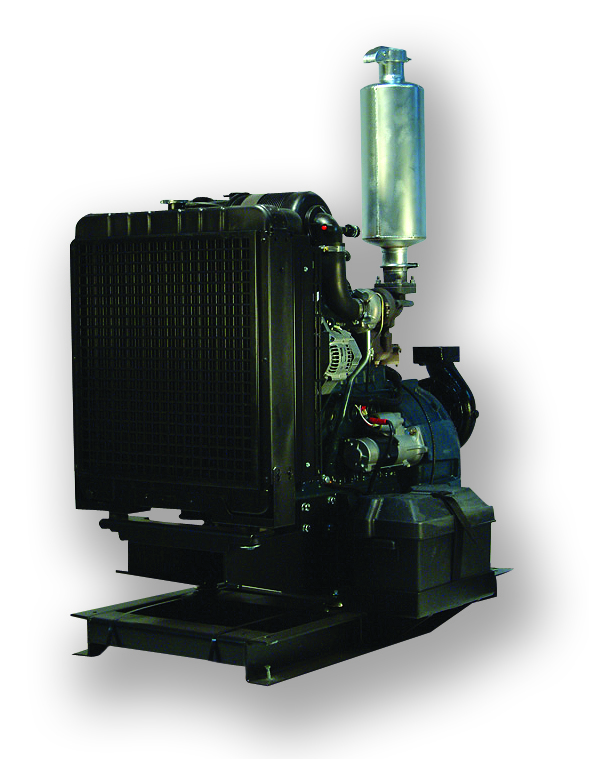

HE 500 Kubota
Part Number: he500kubota
HE 500 Kubota
Part Number: he500kubota
- Vertically split, cast iron bronze fitted pump casing
- Impellers opposed design to eliminate end thrust
- Broached impeller (not keyed) for longer life
- Oversized, deep groove radial type bearings for longer life
- 10-tooth splined shaft for durability
- 3″ NPT discharge companion flange
- 4″ NPT suction
- SAE 3 or 4 adapter to engine bell housing
Documents & Downloads
PDF Drawings
IGS 3D Files
Performance Curves
Repair Manuals
Operation Manuals
Sales Flyers
Performance
- 500 gpm (1893 L/M) @ 150 psi (10.3 bar)
- 350 gpm (1325 L/M) @ 200 psi (13.8 bar)
- 250 gpm (946 L/M) @ 250 psi (17.2 bar)
Features
- 3″ NPT discharge companion flange
- 4″ NPT suction
- SAE 3 or 4 mounting
Engine
Kubota V3600T 84.5 HP Diesel engine, liquid-cooled, 12 V electric starter, alternator, mounted engine control panel
Weight
N/A
Dimensions
55.23″ L x 25.57″ W x 54.32″ H (without base with battery holder)
Applications
N/A
Options
N/A
Technology
N/A
