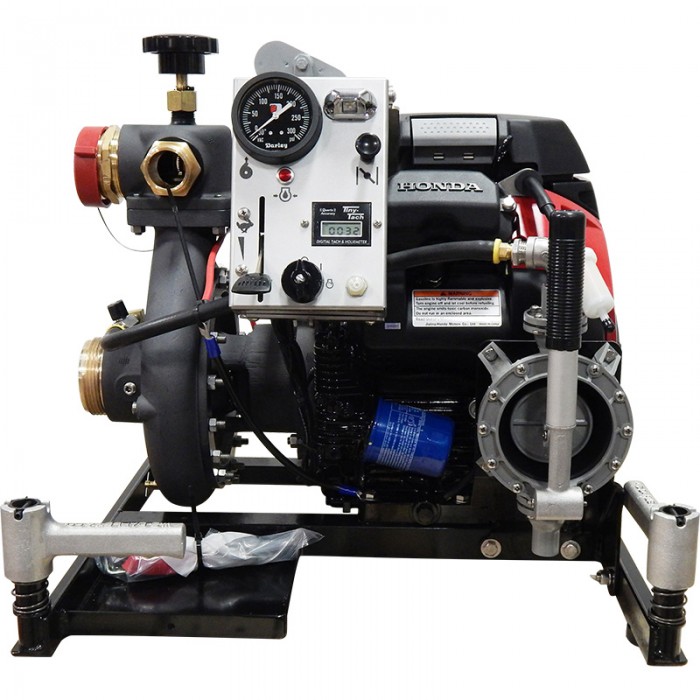

2BE 21H Portable Pump – Marine Version
2BE 21H Portable Pump – Marine Version
Medium Pressure, High Volume, Direct Drive, Engine Mounted
Documents & Downloads
Performance Curves
Operation Manuals
Order Forms
Sales Flyers
Performance
- 380 gpm (1438 L/M) @ 25 psi (1.7 bar)
- 150 gpm (568 L/M) @ 115 psi (7.9 bar)
- 100 gpm (378 L/M) @ 135 psi (9.3 bar)
Features
- Aluminum alloy casing
- Discharge valve
- Sulfuric anodized aluminum alloy gear case and engine adapter
- Bronze impeller and wear ring
- Mechanical seal
- Built-in discharge check valve
- Adjustable discharge valve
- 3″ NPT suction
- One 2-1/2″ NPT and Two 1-1/2″ NPT or One 2-1/2″ NPT discharge
Motor
N/A
Engine
Honda GX 630: 4 cycle, 21 HP, V-twin, OHV, replaceable oil filter, 38.5 cu. in. displacement, 12-volt starter, 20 amp regulated alternator, 6 gal. fuel tank, hose, and adapter
Weight
190 lbs. (86 kg)
Dimensions
24″L x 27″W x 22″H
Applications
- Booster Tank Fill
- Multiple Hand Lines
- Wildland/Attack Fire Suppression
Options
- Adapters
- Gauge
- Battery
- Caps
Technology
N/A
