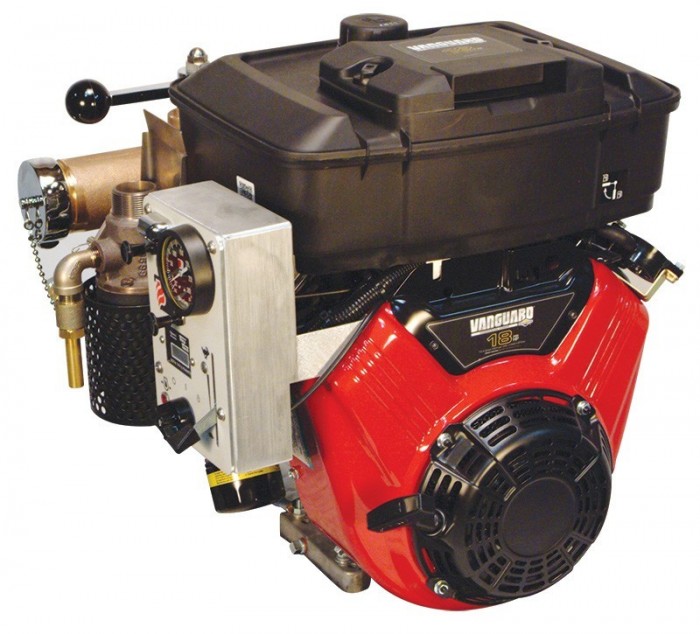

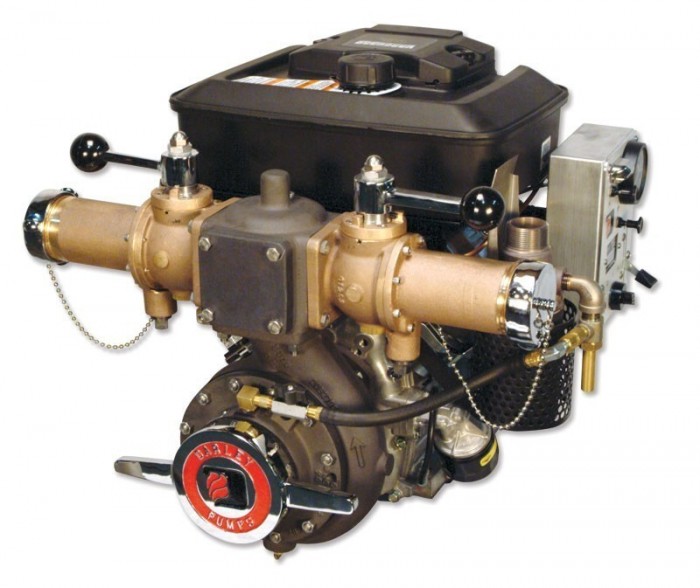

HE 18 Vanguard Portable Pump
Part Number: HE18V
HE 18 Vanguard Portable Pump
Part Number: HE18V
Low Pressure, High Volume, Direct Drive, Engine Mounted
Documents & Downloads
Performance Curves
Operation Manuals
Order Forms
Sales Flyers
Performance
- 520 gpm (1968 L/M) @ 15 psi (1.0 bar)
- 300 gpm (1135 L/M) @ 55 psi (3.7 bar)
- 100 gpm (378 L/M) @ 70 psi (4.7 bar)
Features
Assembly #1
- Aluminum alloy casing
- Bronze impeller and seal ring
- Stainless steel impeller shaft
- Mechanical seal
- Exhaust primer
- Built-in discharge check valve
- 4″ NPT suction
- 3″ NPT discharge
Assembly #2
- 4″ NH suction and screen
- One 2-1/2″ and Two 1-1/2″ NPT discharge head with check valve
Assembly #3
- Built-in discharge check valve
- 4″ NH suction and screen
- Two 1-1/2″ NH discharges, 1/4 turn, ball, self-locking, bronze valves
Motor
N/A
Engine
Briggs & Stratton Vanguard: 4 cycle, 18 HP, V-twin, OHV, 8.35 qt. fuel tank, replaceable oil filter, 34.75 cu. in. displacement, 12-volt starter, recoil rope start back-up, 16 amp regulated alternator
Weight
215 lbs. (98 kg)
Dimensions
27″L x 21″W x 25″H
Applications
- Booster Reel
- Transfer and Supply
Options
Adapters, Gauge, Battery, Caps
Technology
N/A
