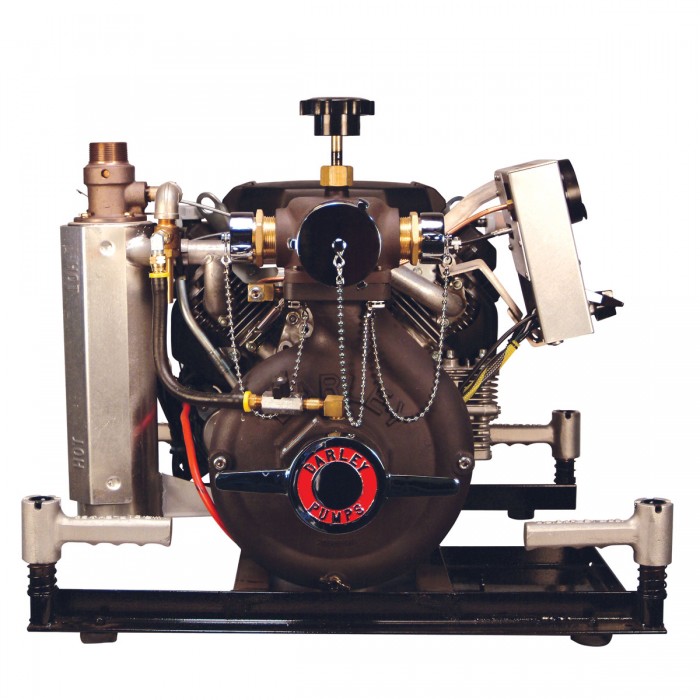

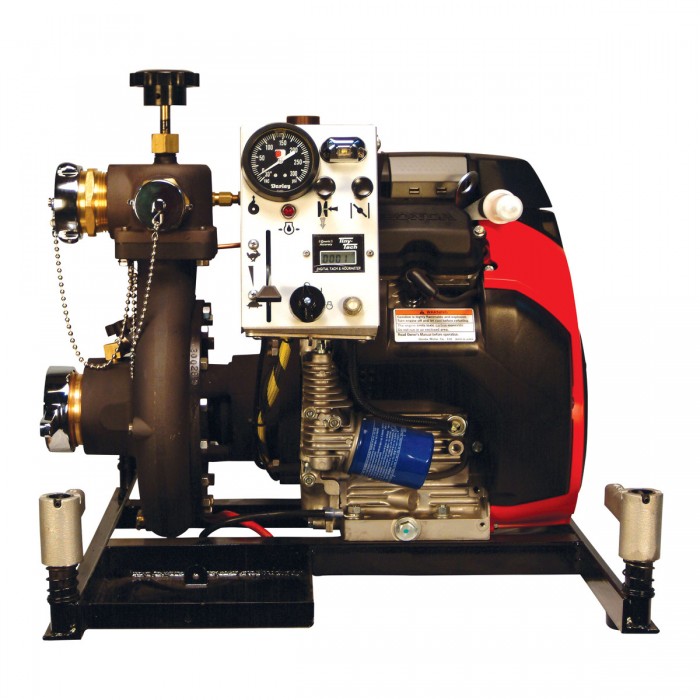

2BE 21H Portable Pump
Part Number: 2BE 21H
2BE 21H Portable Pump
Part Number: 2BE 21H
Medium Pressure, High Volume, Direct Drive, Engine Mounted
2BE 21H marine pump also available
Documents & Downloads
Performance Curves
Operation Manuals
Order Forms
Sell Sheets
Performance
- 375 gpm (1420 L/M) @ 25 psi (1.7 bar)
- 300 gpm (1136 L/M) @ 45 psi (3.1 bar)
- 100 gpm (379 L/M) @ 140 psi (9.7 bar)
Features
- Aluminum alloy casing
- Discharge valve
- Sulfuric anodized aluminum alloy gear case and engine adapter
- Bronze impeller and wear ring
- Mechanical seal
- Built-in discharge check valve
- Adjustable discharge valve
- 3″ NPT suction
- One 2-1/2″ NPT and Two 1-1/2″ NPT or One 2-1/2″ NPT discharge
Motor
N/A
Engine

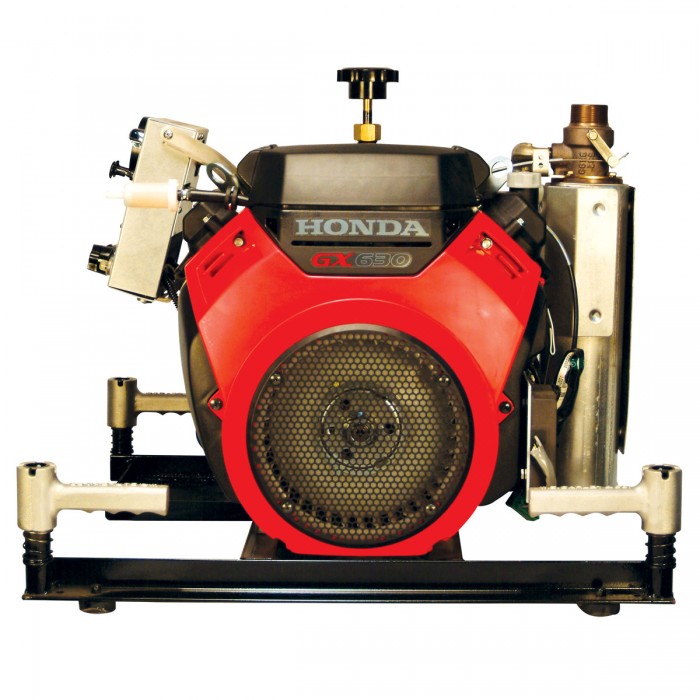

Honda GX 630: 4 cycle, 21 HP, V-twin, OHV, replaceable oil filter, 38.5 cu. in. displacement, 12 volt starter, 20 amp regulated alternator, 6 gal. fuel tank, hose and adapter
Weight
190 lbs. (86 kg)
Dimensions
24″L x 27″W x 22″H
Applications
- Booster Tank Fill
- Multiple Hand Lines
- Wildland/Attack Fire Suppression
Options
N/A
Technology
N/A
