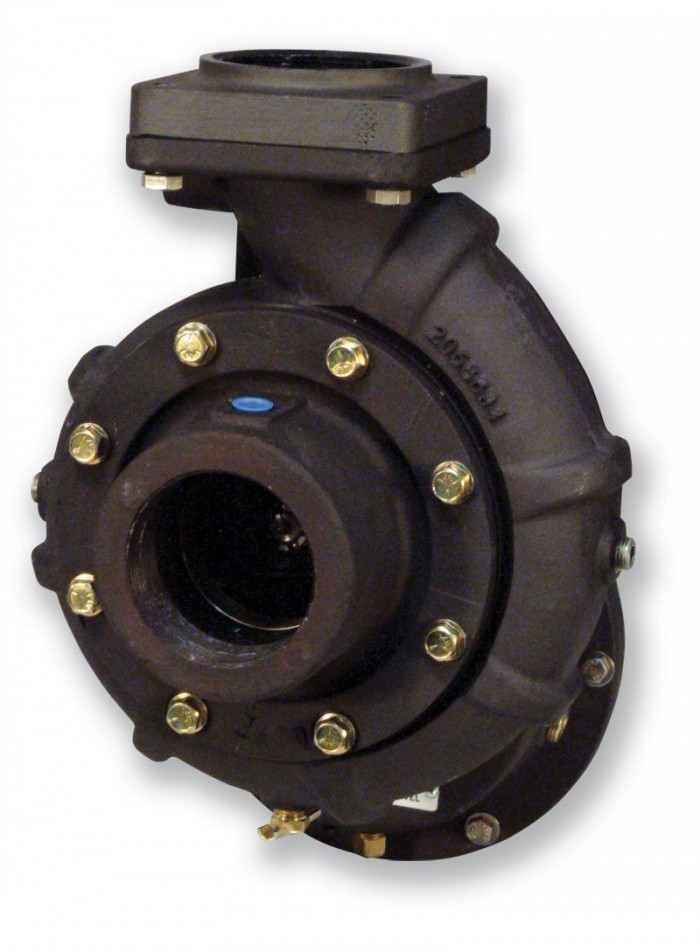

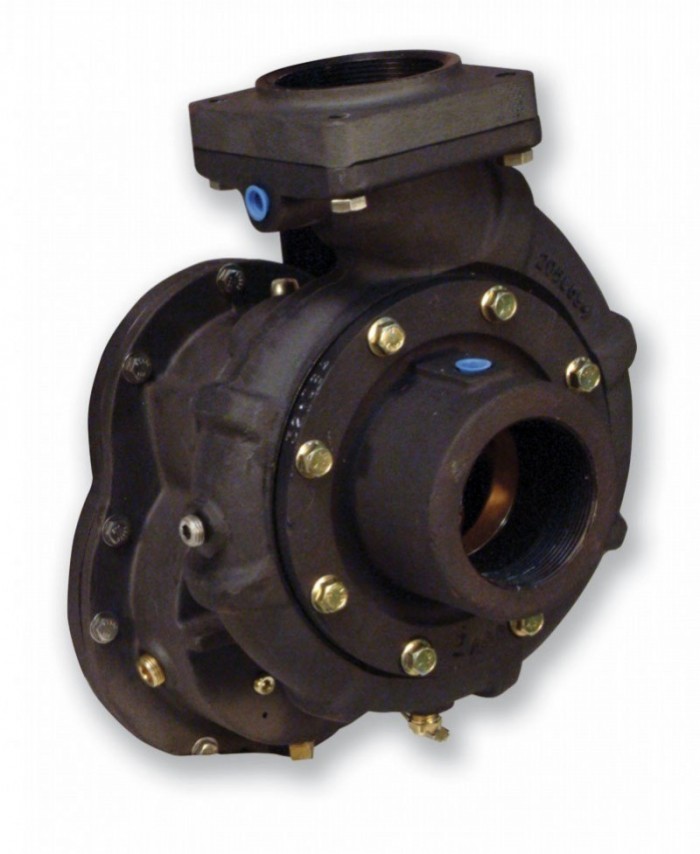

2-1/2AG PTO Pump
2-1/2AG PTO Pump
- Single Stage
- Centrifugal
- PTO Driven
- Gear Driven
Industry’s Longest Warranty
- 10-year manufacturer’s, 10-year parts, and 3-year labor
Documents & Downloads
DWG Drawings
IGS 3D Files
Performance Curves
Repair Manuals
Operation Manuals
Warranties
Sell Sheets
Performance
- 150 gpm (568 L/M) @ 250 psi (17.2 bars)
- 200 gpm (757 L/M) @ 175 psi (12.1 bars)
- 250 gpm (946 L/M) @ 125 psi (8.6 bars)
Features
- Aluminum alloy casting
- Aluminum alloy gear case
- Bronze impeller & wear rings
- Stainless steel impeller shaft
- Heat-treated alloy steel helical gears
- Ball bearing construction
- Mechanical seal
- 2″ NPT suction
- 2″ NPT flange on discharge
Motor
N/A
Engine
N/A
Weight
- 45 lbs. (20.4 kg)
Dimensions
- 12″ L x 9″ W x 13″ H
Applications
- Mini Pumper
- Tanker
- Wildland / Attack Fire
Options
N/A
Technology
N/A
