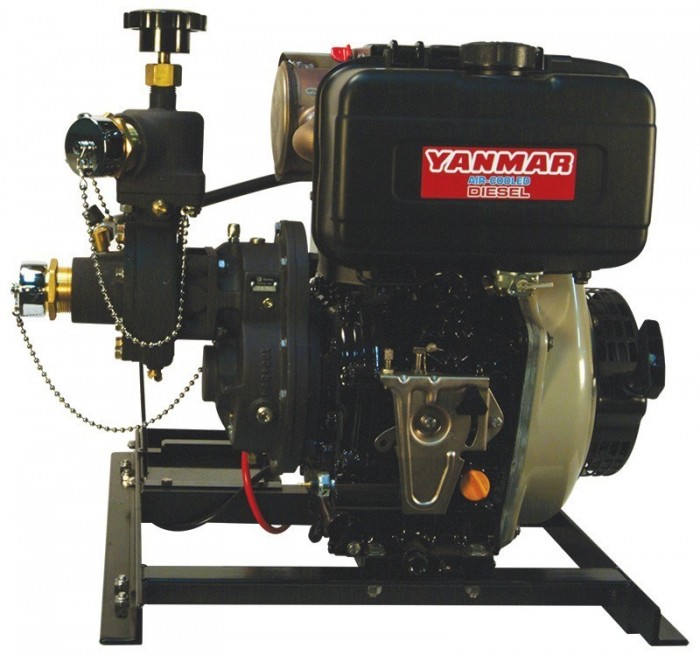

1-1/4 AGE 10YD Portable Pump
Part Number: 1-1/4AGE10YD
1-1/4 AGE 10YD Portable Pump
Part Number: 1-1/4AGE10YD
High Pressure, Low Volume, Gear Driven, Engine Mounted
Documents & Downloads
Performance Curves
Repair Manuals
Order Forms
Sales Flyers
Performance
- 55 gpm (208 L/M) @ 135 psi (9.3 bar)
- 40 gpm (151 L/M) @ 185 psi (12.8 bar)
- 20 gpm (76 L/M) @ 265 psi (18.3 bar)
Features
- Hard anodized aluminum alloy casing and discharge valve
- Aluminum alloy gear case and engine adapter
- Stainless steel impeller shaft
- Mechanical seal
- Bronze impeller and wear rings
- Heat-treated alloy steel helical gears
- Ball bearing construction
- Built-in discharge check valve
- Adjustable discharge valve
- Adjustable throttle
- Exhaust primer
- 1-1/2″ NPT suction
- Two – 1-1/2″ NPT discharges
Motor
N/A
Engine
Yanmar Diesel L100: 4 cycle, 10 HP, 1 cylinder, recoil rope start back-up, optional 12-volt electric start and alternator
Weight
163 lbs. (74 kg)
Dimensions
24″L x 24″W x 23″H
Applications
- Booster Reel
- Light Duty Brush Truck
Options
N/A
Technology
N/A
