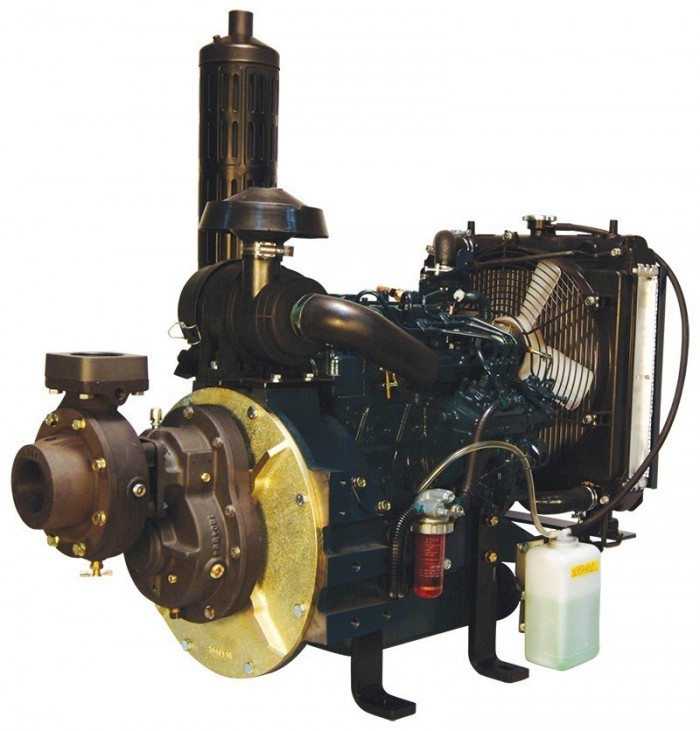

1.5 AGE 24K Tier 4 Diesel Driven Portable Pump
Part Number: 1-1/2AGE 24K
1.5 AGE 24K Tier 4 Diesel Driven Portable Pump
Part Number: 1-1/2AGE 24K
- High Pressure
- Low Volume
- Gear Driven
- Engine Mounted
Documents & Downloads
DWG Drawings
Performance Curves
Repair Manuals
Operation Manuals
Engine Specs
Order Forms
Engine Manuals
Performance
2.70 Ratio, Standard Impeller
- 20 gpm (76 L/M) @ 310 psi (21.4 bar)
- 140 gpm (530 L/M) @ 145 psi (10.0 bar)
- 180 gpm (681 L/M) @ 80 psi (5.5 bar)
3.17 Ratio, High-Pressure Impeller
- 25 gpm (95 L/M) @ 375 psi (25.9 bar)
- 75 gpm (284 L/M) @ 230 psi (15.9 bar)
- 120 gpm (454 L/M) @ 150 psi (10.3 bar)
Features
- Hardened anodized aluminum alloy pump casing and discharge
- Aluminum alloy gear case and engine adapter
- Bronze impeller and wear rings
- Stainless steel impeller shaft
- Mechanical seal
- Heat-treated alloy steel helical gears
- Ball bearing construction

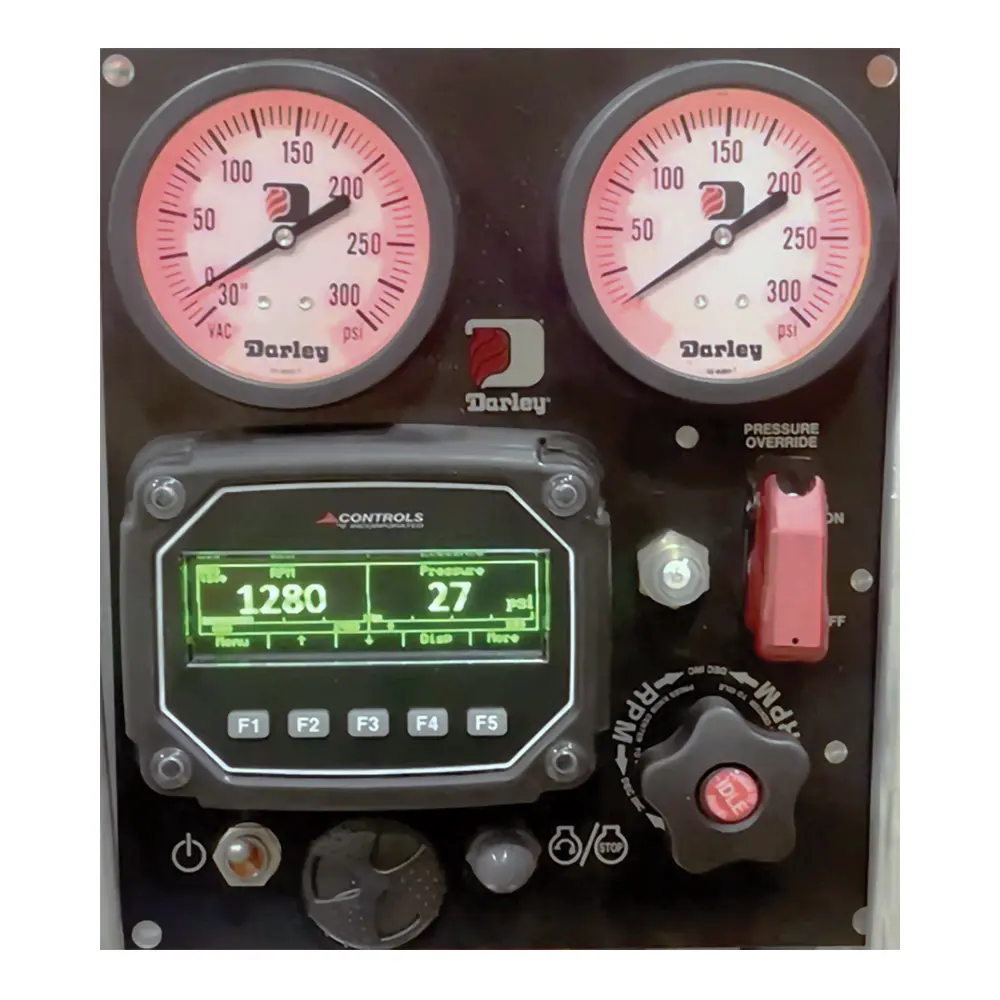

- Electronic throttle
- Power indicator light
- Digital pressure readout
- Hour meter
- Oil psi
- Tachometer
- Engine coolant temperature
- Volt meter
- Overridable engine shutdowns
- 2″ NPT suction
- 2 1-1/2″ NPT or 1 2-1/2″ NPT discharges
- New integrated throttle actuator
Motor
N/A

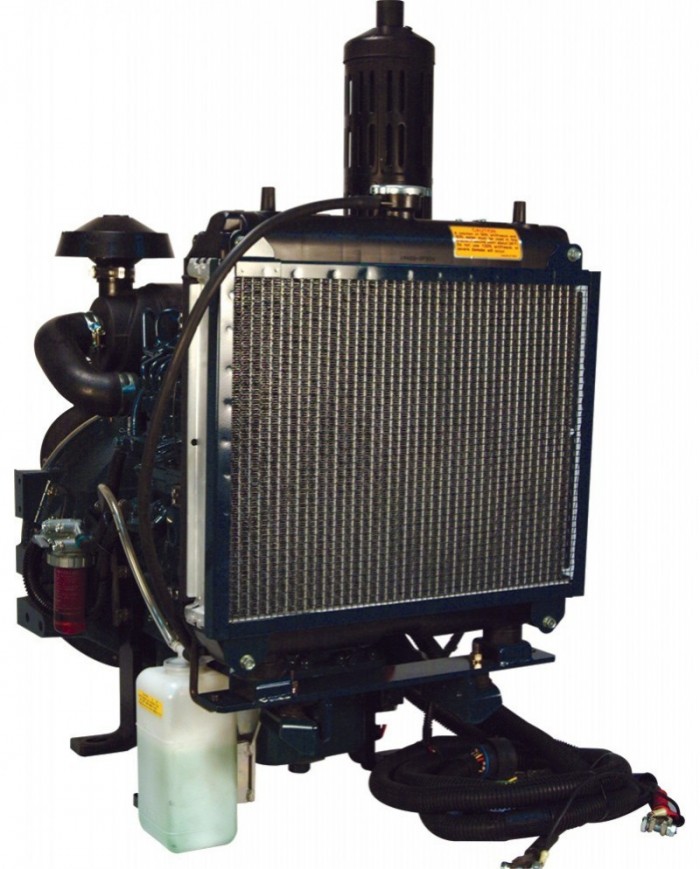

Engine
- Kubota D902 Diesel: 24 HP
- Liquid cooled
- 12-volt starter
- 40 amp. alternator
- fuel and oil pump filters
Weight
- 382.76 lbs. (173.62 kg)
Dimensions
- 37.20″L x 21.44″W x 36.07″H
Applications
- Booster Reel
- Multiple Hand Lines
- Transfer and Supply
- Wildland / Attack Fire Suppression
Options

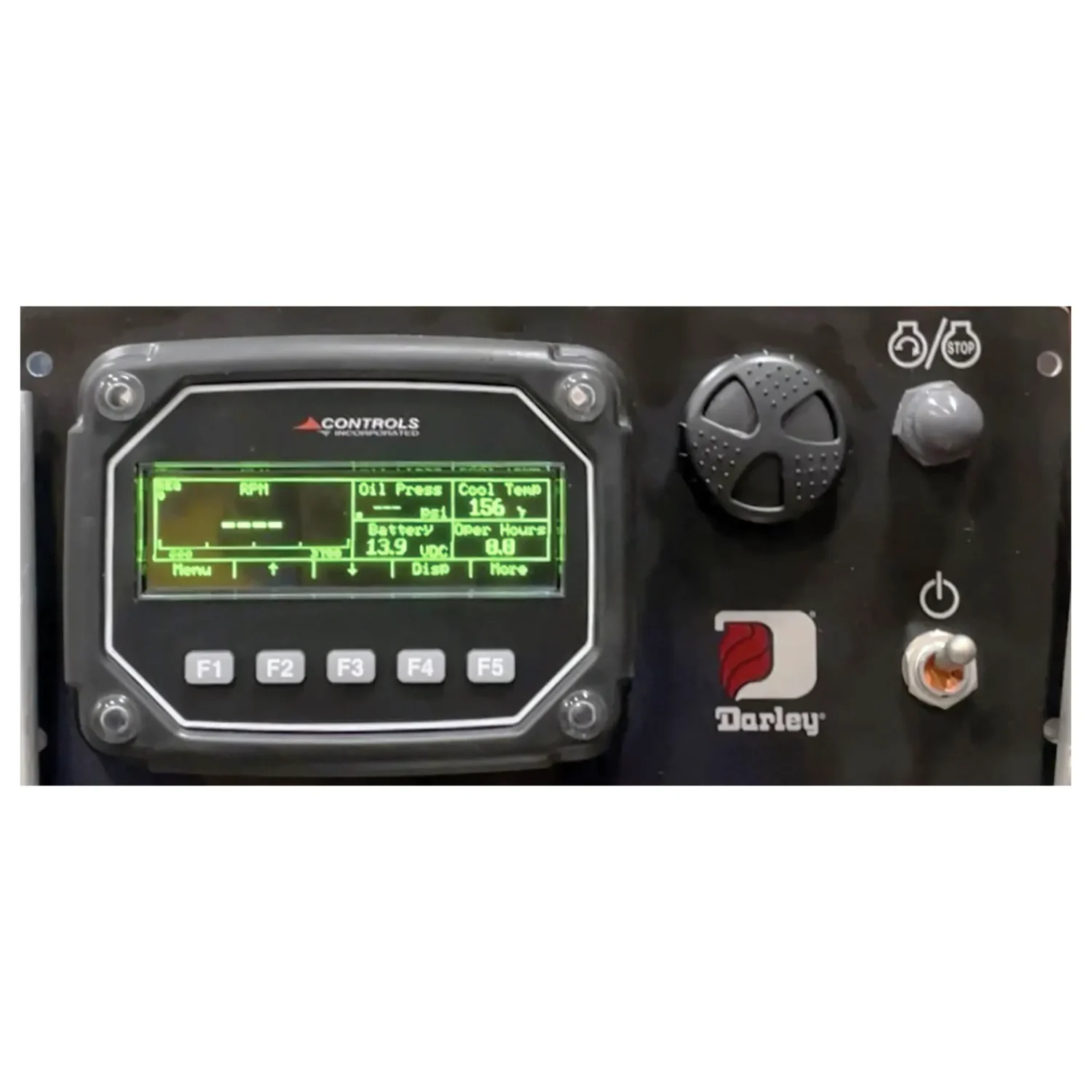

- Dual panels (can add multiple panels)
- 12 Volt primer
