UHP-HV® Ultra High Pressure-High Volume

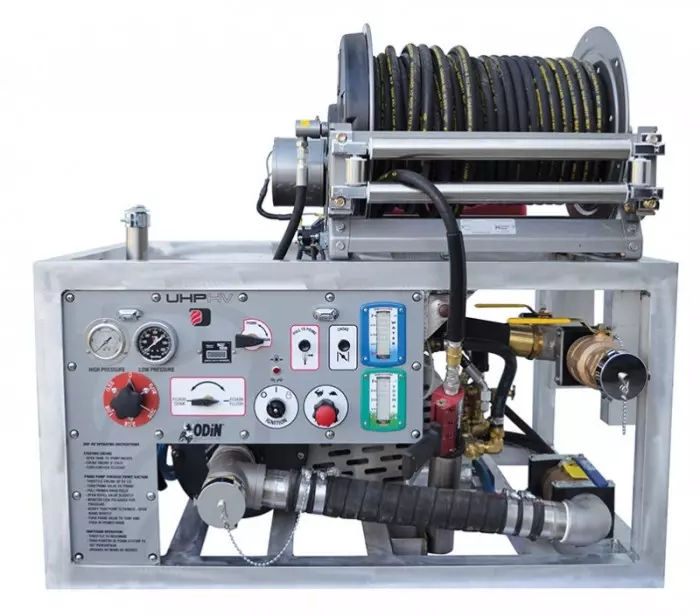

The UHP-HV® (Ultra High Pressure-High Volume) module offers the best of both worlds for the wildland-urban interface. Darley has combined our versatile direct-drive 2BE pump and the CAT 7CP high-pressure piston pump to meet all your firefighting needs in one compact package. The main pump can be used for water transfer or for 1-1/2” hose for structural attacks, while the belt-driven CAT can produce low flow high pressure flows in excess of 1300 psi with optional foam through the 1/2” HP hose.

Simultaneous Flows

UHP

  • 8 GPM @ 1200 PSI

2BE23V

  • 250 gpm (946 L/M) @ 45 psi (3.1 bar)
  • 160 gpm (606 L/M) @ 80 psi (5.5 bar)
  • 30 gpm (114 L/M) @ 125 psi (8.6 bar)
  • CAT 7CP high-pressure piston pump with foam injection
  • High-pressure pump belt drive system
  • High-volume Darley 2BE pump
  • Bronze impeller and seal rings
  • Exhaust primer
  • Powder-coated aluminum frame
  • All stainless plumbing
  • Electric rewind Hannay Reel with 200′ of 1/2″ hose, full capture leads
  • Dual Strike Gun with holster (20’ effective discharge)
N/A
N/A

46″W x 24-1/2″H x 32″D
Reel Height: 42-1/2″ 569 lbs. (258 kg)

N/A
N/A
N/A
