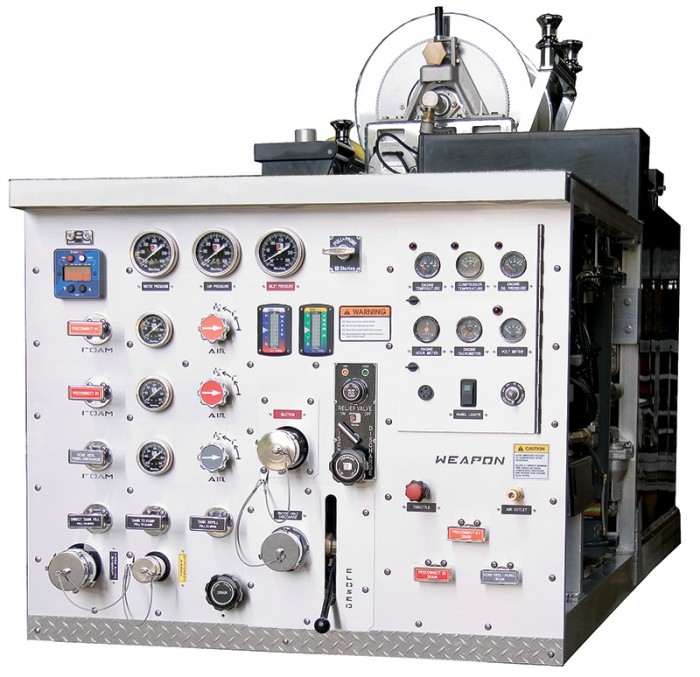

Odin® Weapon 200-100
Part Number: Weapon
Odin® Weapon 200-100
Part Number: Weapon
Engine-driven compressed air foam systems
Documents & Downloads
PDF Drawings
Operation Manuals
Spec Sheets
Sales Flyers
Performance
Water Performance
- 250 gpm @ 150 psi
- 175 gpm @ 200 psi
- 150 gpm @ 250 psi
Simultaneous Flow
- 200 gpm (757 L/M) & 100 cfm (2831 L/M) @ 125 psi (8.6 bar)
Air Performance
- 125 cfm (3539 L/M) @ 125 psi (8.6 bar)
Simultaneous Flow
- 220 gpm (832 L/M) & 120 cfm (3398 L/M) @ 100 psi (6.9 bar)
Features
Darley Model 2-1/2AGE
- Single stage
- Centrifugal pump
- Two – 1-1/2″ independent CAF discharges
- Designed to provide up to 250 gpm and pressures up to 250 psi
Control Panel
- Illuminated
- Precision-cut brushed stainless steel panel with all system controls installed
Air Compressor
- Rotary screw encapsulated air compressor
- ODIN AutoBalance™ valve
- Compressor temperature alarm
Frame
- Industrial strength lightweight aluminum
Foam Proportioner System
- Foam Pro 1601
Motor
N/A
Engine
Hatz 4H50TIC
- 73 HP @ 2800 RPM
- Direct injection
- Exhaust gas turbocharger with intercooler
- Externally cooled EGR engine
- Remote oil drain
Weight
1750 lbs. (793 kg)
Dimensions
59″L x 47 1/2″W x 40″H
Applications
- Wildland/Attack Fire Suppression
- Rescue
- Skid Unit
Options
N/A
Technology
N/A
