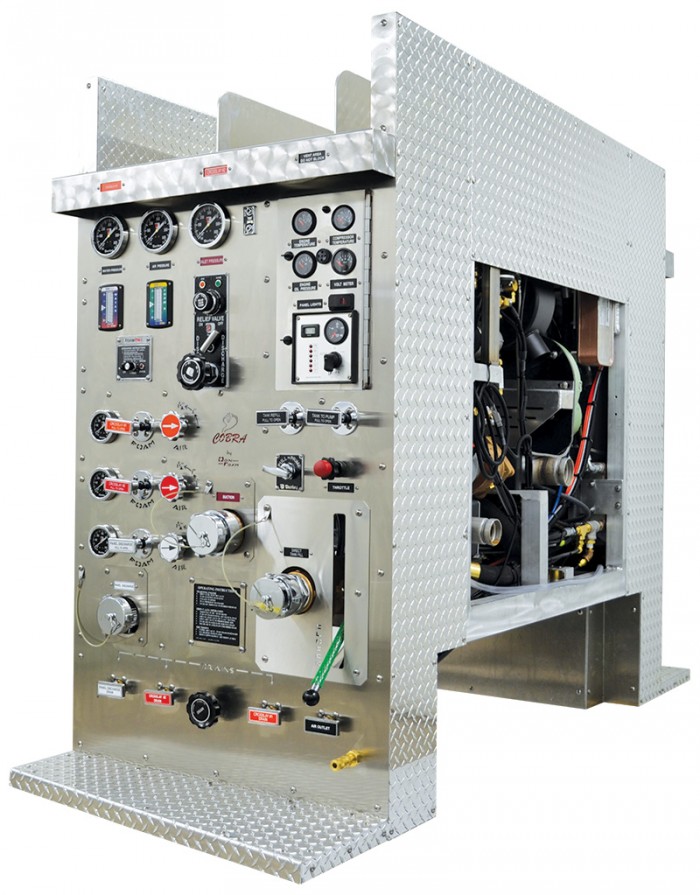

Odin® Cobra XD 200-100

Part Number: Cobra

Engine-driven compressed air foam system.

Water Performance

  • 250 gpm (946 L/M) @ 150 psi (10.4 bar)
  • 175 gpm (662 L/M) @ 200 psi (13.7 bar)
  • 150 gpm (568 L/M) @ 250 psi (17.2 bar) NFPA

Simultaneous Flow

  • 200 gpm (757 L/M) & 100 cfm @ 125 psi (8.6 bar)

Air Performance

  • 130 cfm (1699 L/M) @ 125 psi (8.6 bar)

Simultaneous Flow

  • 220 gpm (833 L/M) & 125 cfm @ 100 psi (6.9 bar)

Darley Model 2-1/2AGE

  • Single stage
  • Centrifugal pump
  • Three independent CAF discharges
  • Designed to provide up to 250 gpm and pressures up to 250 psi

Control Panel

  • Illuminated
  • Precision-cut brushed stainless steel panel with all system controls installed

Air Compressor

  • Rotary screw compressor assembly, ODIN® AutoBalance™ valve, compressor temperature alarm

Frame

  • Industrial strength lightweight aluminum
  • Latched door for engine and Foam Proportioner system maintenance access

Lid

  • Fully assembled
  • Precision computer cut
  • Ventilated
  • Hinged
  • Gas shock lift struts
  • Latched

Foam Proportioner System

  • FoamPro Model 1601 System
  • FRC water and foam level gauges
  • Darley pressure relief valve
  • Auxiliary air outlet
  • Remote oil drain hose
  • Tier IV compliant
  • Digital controller with pressure maintain feature

Hatz 4H50TIC

  • 73 HP @ 2800 RPM
  • Direct injection
  • Exhaust gas turbocharged with intercooler
  • Externally cooled EGR engine
  • Remote oil drain.

2200 lbs. (998 kg)

69”L x 36”W x 72”H

  • Wildland
  • Quick Attack
  • Rescue
  • Skid Unit
N/A
N/A
