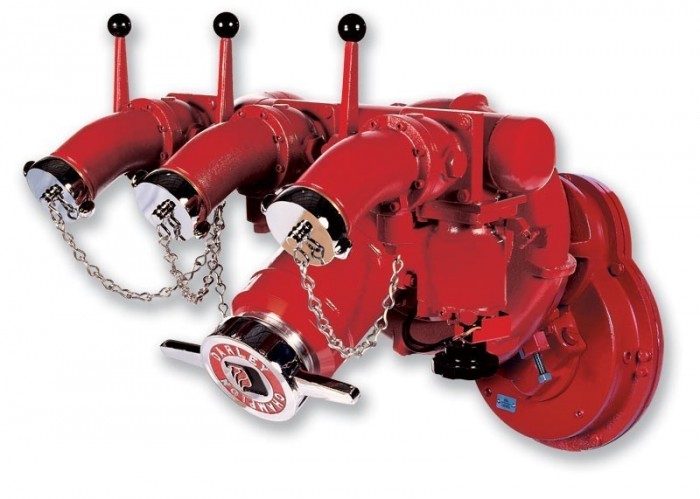

LSR 500-1000
Part Number: lsr500
LSR 500-1000
Part Number: lsr500
Single Stage, Centrifugal, PTO Driven, 2 or 3 Gear Gearcase
Documents & Downloads
Sales Flyers
Performance
LSR 500
- 500 gpm (1893 L/M) @ 150 psi (10.3 bar)
- 350 gpm (1325 L/M) @ 200 psi (13.8 bar)
- 250 gpm (946 L/M) @ 250 psi (17.2 bar)
LSR 750
- 750 gpm (2839 L/M) @ 150 psi (10.3 bar)
- 525 gpm (1987 L/M) @ 200 psi (13.8 bar)
- 375 gpm (1419 L/M) @ 250 psi (17.2 bar)
LSR 1000
- 1000 gpm (3785 L/M) @ 150 psi (10.3 bar)
- 700 gpm (2646 L/M) @ 200 psi (13.8 bar)
- 500 gpm (1893 L/M) @ 250 psi (17.2 bar)
Features
- 4″ or 5″ NPT or weld discharge flange
- 5″ or 6″ NPT or weld flange suction
- Rotation: Engine or opposite engine
- 1410 lock on yoke
Motor
N/A
Engine
N/A
Weight
435 lbs. (197 kg)
Dimensions
34″H x 38″W x 26″D
Applications
- Pumper
- Pumper tanker
- Rescue pumper
- Wildland/attack fire
Options
N/A
Technology
N/A
