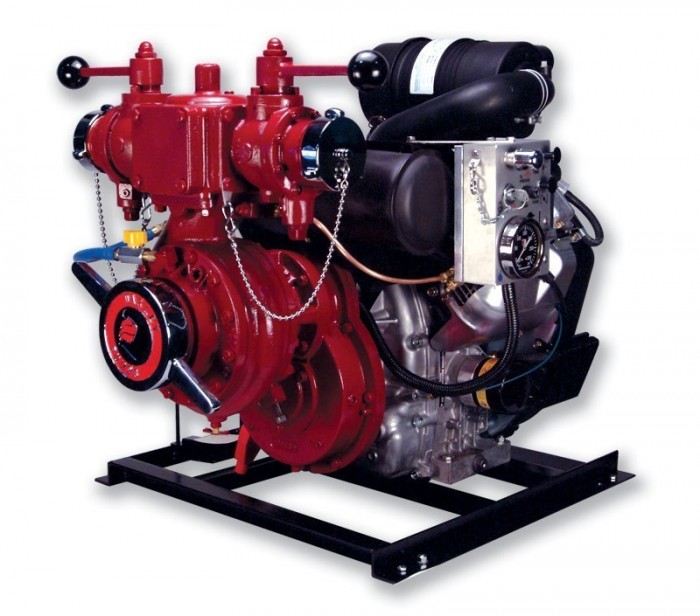

HGE 37V EFI Portable Pump




HGE 37V EFI Portable Pump
Medium Pressure, High Volume, Gear Driven, Engine Mounted
Documents & Downloads
PDF Drawings
DWG Drawings
IGS 3D Files
CAD Files
Performance Curves
Repair Manuals
Operation Manuals
Install Instructions
Sales Flyers
Performance
- 550 GPM (2081 L/M) @ 30 PSI (2.0 bar)
- 300 GPM (1135 L/M) @ 105 PSI (7.2 bar)
- 100 GPM (378 L/M) @ 195 PSI (13.4 bar)
Features
- Hard anodized aluminum alloy casing, discharge head, gear case and engine adapter
- Bronze impeller and wear rings
- Stainless steel impeller shaft
- Mechanical seal
- Helical gears
- Discharge check valve and adjustable
- discharge valve
- Sulfuric anodized aluminum alloy gear case and engine adapter
- Throttle and exhaust primer
- Control panel: Mounted with engine controls and pressure gauge
- 4” NH suction and screen
- Two 2-1/2” NH discharges, 1/4 turn, ball, self-locking, bronze valves
Engine
Briggs & Stratton: 37 HP, V-Twin, electric fuel ignition (EFI), OHV, 4 cycle, air cooled gas engine, electric start, flywheel alternator, fuel and oil pump filters, 6 gal. fuel tank
Weight
330 lbs. (150 kg)
Dimensions
29.5″L x 27″W x 31″H
Applications
- Booster Reel
- Multiple Hand Lines
- Wildland/Attack
- Fire Suppression
Options
Adapters, Gauge, Battery, Caps
