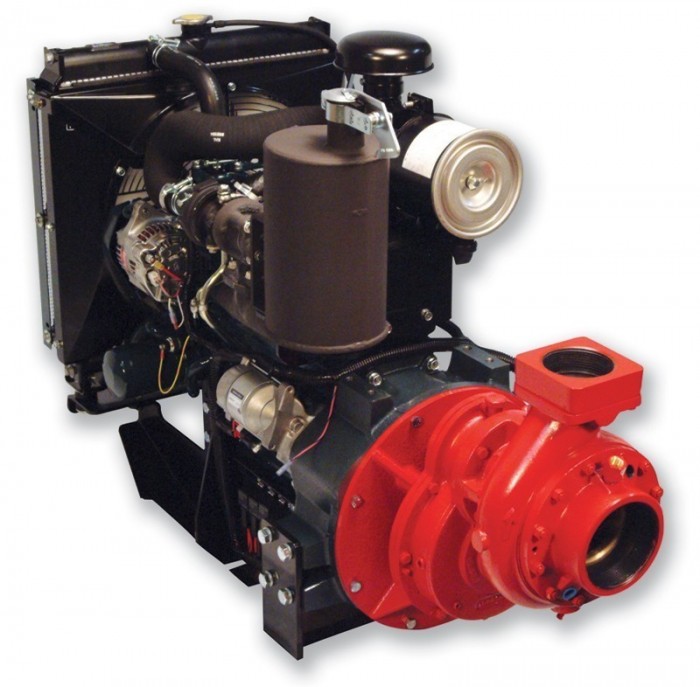

HE 42K
Part Number: HE42K
HE 42K
Part Number: HE42K
Export Only
Medium Pressure, High Volume, Gear Driven, Engine Mounted
Documents & Downloads
PDF Drawings
DWG Drawings
IGS 3D Files
Performance Curves
Repair Manuals
Operation Manuals
Order Forms
Sales Flyers
Performance
- 600 gpm (2271 L/M) @ 40 psi (2.7 bar)
- 300 gpm (1135 L/M) @ 135 psi (9.3 bar)
- 250 gpm (946 L/M) @ 150 psi (10.3 bar)
Features
Assembly #1
- Cast iron casing
- Bronze impeller and seal ring
- 4″ NPT suction
- 3″ NPT discharge
Assembly #2
- 4″ NH suction and screen
- One 2-1/2″ and Two 1-1/2″ NPT discharge head with check valve
Assembly #3
- 4″ NH suction and screen
- Two 2-1/2″ NH discharges, 1/4 turn, ball, self-locking, all bronze valves
- Control panel for remote mounting with gauge, throttle control, engine warning lights, and start/stop
Motor
N/A
Engine
Kubota V1505T Diesel: 42 HP turbo diesel, 4 cylinder, liquid-cooled, 12-volt starter, 40 amp alternator, oil and fuel pump filters
Weight
490 lbs. (222 kg)
Dimensions
43.57″L x 22.77″W x 32.8″H
Applications
- Dewatering
- Booster Tank Fill
Options
N/A
Technology
N/A
