2-1/2 AGE 250DTZ
Part Number: 2-1/2AGE250DTZ
2-1/2 AGE 250DTZ
Part Number: 2-1/2AGE250DTZ
Export Only

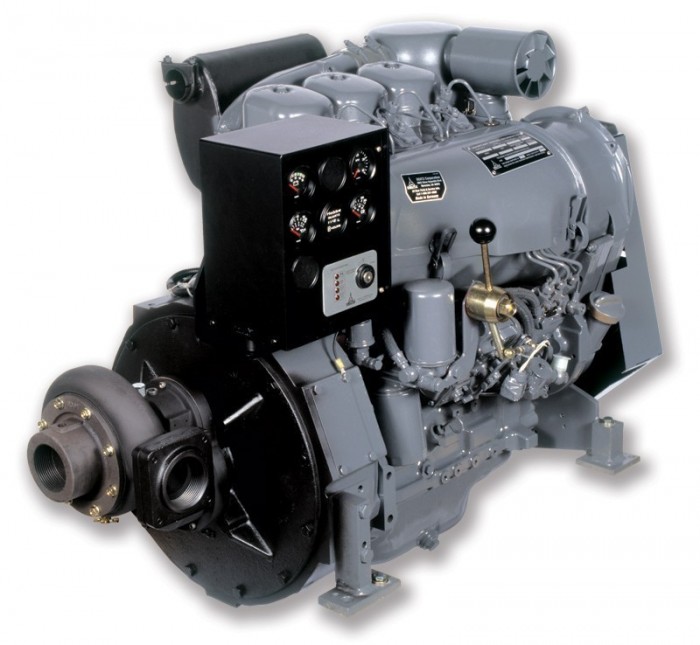

Single Stage, Engine Driven, Centrifugal Pump
Documents & Downloads
Performance Curves
Repair Manuals
Operation Manuals
Order Forms
Sales Flyers
Performance
- 115 gpm (435 L/M) @ 230 psi (15.8 bar)
- 75 gpm (283 L/M) @ 285 psi (19.6 bar)
- 25 gpm (94 L/M) @ 295 psi (20.3 bar)
Features
- Aluminum alloy casing
- Aluminum alloy gear case and engine adapter
- Bronze impeller and wear rings
- Stainless steel impeller shaft
- Mechanical seal
- Heat-treated alloy steel helical gears
- Ball bearing construction
- Heavy-duty air cleaner
- Engine control panel
- Tachometer
- Hour meter
- Oil pressure gauge
- Ammeter
- Throttle
- Muffler
- Start/stop key switch
- 2-1/2″ NPT suction
- 2-1/2″ NPT flanged discharge
Options
2-1/2 AGE 250CM
- Cummins B3.3 Diesel: 60 HP, liquid-cooled, 12-volt electric starter, alternator
- 53.44″L x 27.88″W x 58.83″H, 700 lbs. (317.5 kg)
2-1/2 AGE 250JD
- John Deere 4024HF295 Diesel – 61 HP, 4 cycle, liquid-cooled, 12-volt, electric starter, alternator
- 56″L x 28.6″W x 531/2″H, 825 lbs. (374.2 kg)
Motor
N/A
Engine
Deutz D914L03 Diesel: 57 HP, air-cooled, 12 volt, electric starter, alternator
Weight
925 lbs. (419.5 kg)
Dimensions
45″L x 27.4″W x 31.3″H
Applications
- Meets 250 gpm @ 150 psi for Type 2 Structure engines
- Meets 150 gpm @ 250 psi for Type 3 Wildland engines
Options
N/A
Technology
N/A
