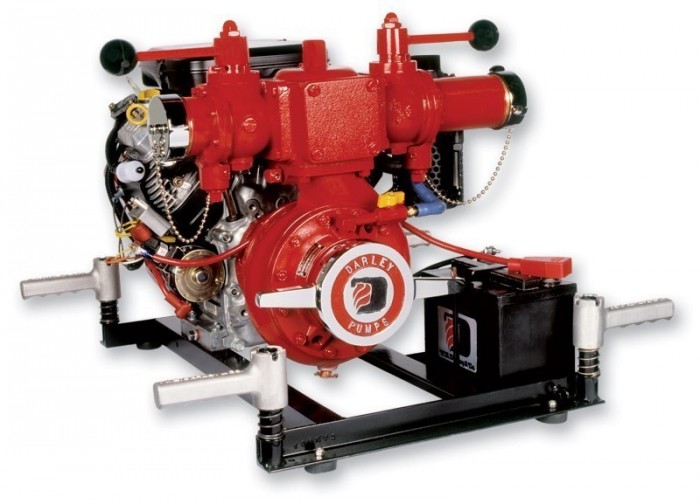

HE 23 Vanguard Portable Pump

Part Number: HE23V

https://www.darley.com/wp-content/uploads/2022/09/he23v.jpg

HE 23 Vanguard Portable Pump

Part Number: HE23V

Medium Pressure, High Volume, Direct Drive, Engine Mounted

Performance Curves
Repair Manuals
Operation Manuals
Order Forms
Sales Flyers
  • 535 gpm (2025 L/M) @ 20 psi (1.4 bar)
  • 300 gpm (1136 L/M) @ 60 psi (4.1 bar)
  • 100 gpm (378 L/M) @ 70 psi (4.8 bar)

Assembly #1

  • Aluminum alloy casing
  • Bronze impeller and seal ring
  • Stainless steel impeller shaft
  • Mechanical seal
  • 4” NPT suction
  • 3” NPT discharge

Assembly #2

  • 4” NH suction and screen
  • One – 2-1/2” and Two – 1-1/2” NPT discharge heads with check valve

Assembly #3

  • Built-in discharge check valve
  • 4” NH suction and screen
  • Two 2-1/2” NH discharges, 1/4 turn, ball, self-locking, all bronze valve

Briggs & Stratton Vanguard: 4 cycle, 23 HP, V-twin, OHV, replaceable oil filter, 38.0 cu. in. displacement, 12-volt starter, recoil rope start back-up, 16 amp regulated alternator

220 lbs. (100 kg)

24″L x 21″W x 24″H

  • Booster Tank Fill
  • Transfer and Supply

Adapters, Gauge, Battery, Caps

N/A
