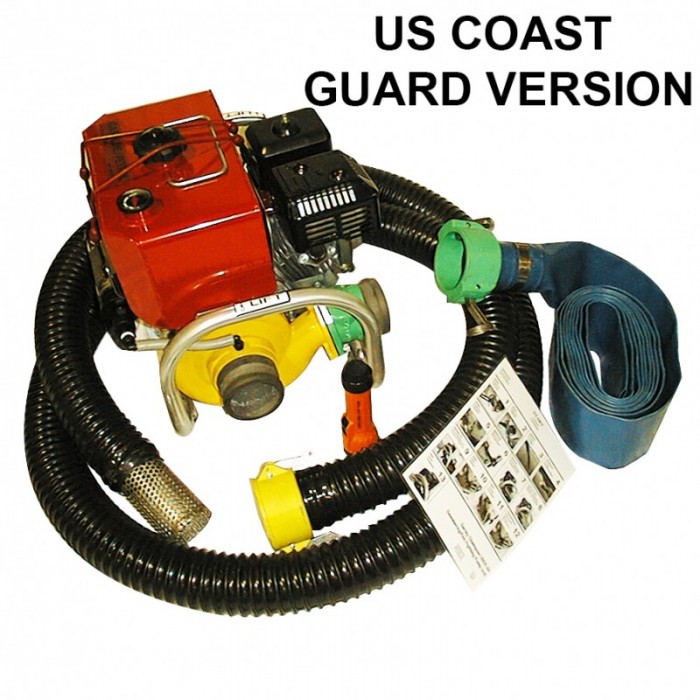

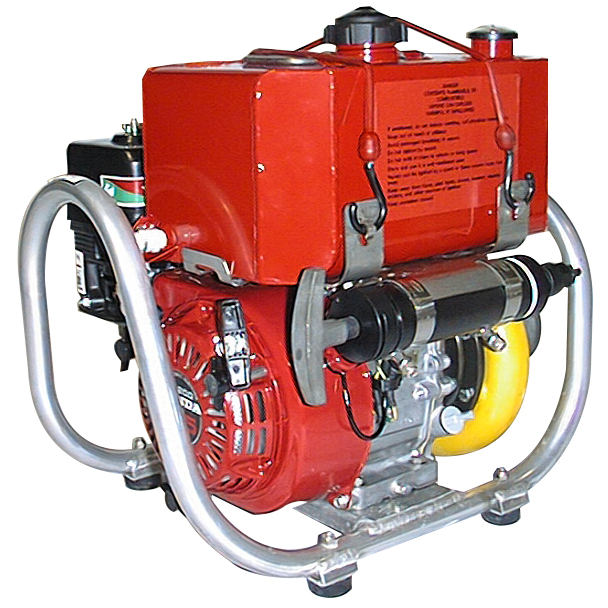

2BE 6.5H HCP Pump – Marine Version
2BE 6.5H HCP Pump – Marine Version
Medium Pressure, High Volume, Direct Drive, Engine Mounted. Choice of the U.S. Coast Guard
Documents & Downloads
PDF Drawings
Performance Curves
Operation Manuals
Sales Flyers
Performance
- 275 gpm (1040 L/M) @ 12 psi (0.8 bar)
- 175 gpm (662 L/M) @ 28 psi (1.9 bar)
- 100 gpm (378 L/M) @ 45 psi (3.1 bar)
Features
- Air-cooled 4-stroke OHV
- Single-cylinder
- Horizontal shaft
- 6.5 HP (4.8kW 3600 rpm) max
- Torque 1.35kg-m/2,500 rpm
- Transistorized pointless ignition system
- Recoil starting system
- Fuel tank capacity 6 qt.
- Dual silent air cleaner
- 2011 Carb and EPA Compliant
- 3″ cam lock suction
- 3″ cam lock discharge
Motor
N/A
Engine
Honda Model GX200: Air-cooled 4 stroke OHV, single cylinder, 6.5 HP, recoil rope start back-up
Weight
49 lbs. (22 kg)
Dimensions
18″L x 16″W x 19″H
Applications
- Dewatering
- Light Duty Brush Truck
- Transfer and Supply
Options
- Discharge Hose
- Container and Cover
- Adapters
- Suction Hose with Strainer
Technology
N/A
