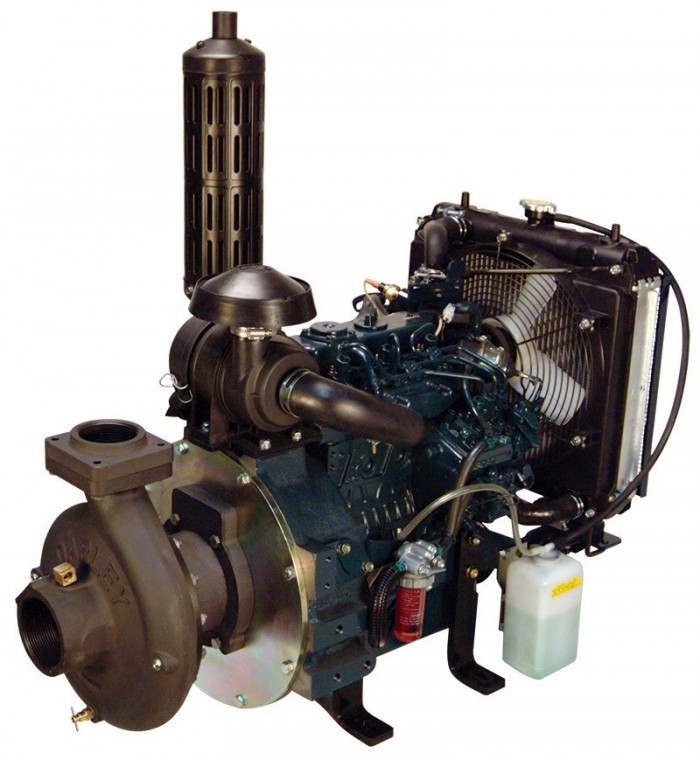

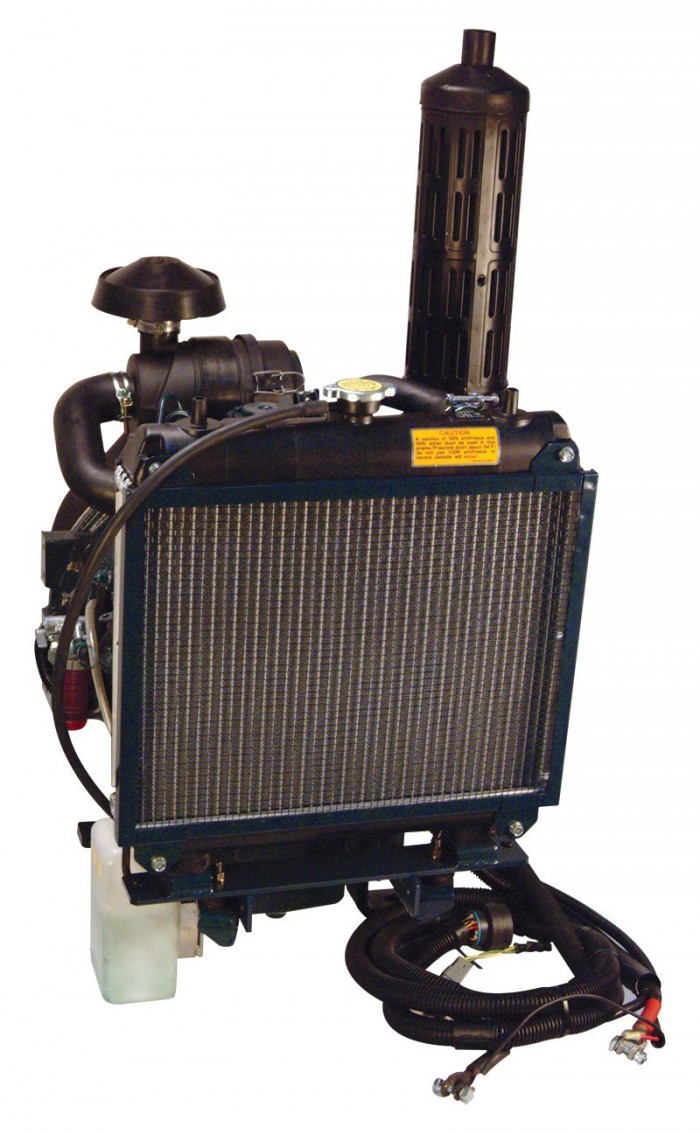

2BE 24K Portable Diesel-Powered Pump
2BE 24K Portable Diesel-Powered Pump
Medium Pressure, High Volume, Gear Driven, Engine Mounted
Documents & Downloads
PDF Drawings
DWG Drawings
Performance Curves
Operation Manuals
Engine Specs
Order Forms
Sales Flyers
Performance
- 390 gpm (1476 L/M) @ 20 psi (1.4 bar)
- 300 gpm (1135 L/M) @ 80 psi (5.5 bar)
- 200 gpm (757 L/M) @ 115 psi (7.9 bar)
Features
- Aluminum alloy casing and discharge valve
- Aluminum alloy gear case and engine adapter
- Bronze impeller and wear rings
- Stainless steel impeller shaft
- Mechanical Seal
- Heat-treated alloy steel helical gears
- Ball bearing construction
- 3″ NPT Suction
- Two 1-1/2″ NPT or One 2-1/2″ NPT discharges
Motor
N/A
Engine
Kubota D902 Diesel
- 24 HP
- 3600 RPM
- Liquid Cooled
- 12 Volt Starter
- 40 AMP Alternator
- Fuel and Oil Pump Filters
Weight
386 lbs. (175 kg)
Dimensions
35″ L x 23.3″ W x 26.3″ H (40″ w/exhaust)
Applications
- Booster Reel
- Multiple Hand Lines
- Transfer and Supply
- Wildland/Attack Fire Suppression
Options
N/A
Technology
N/A
