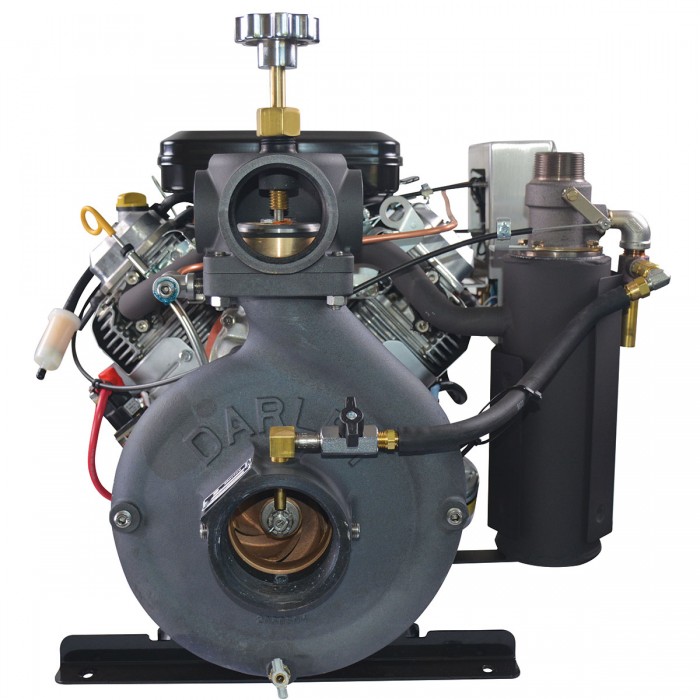

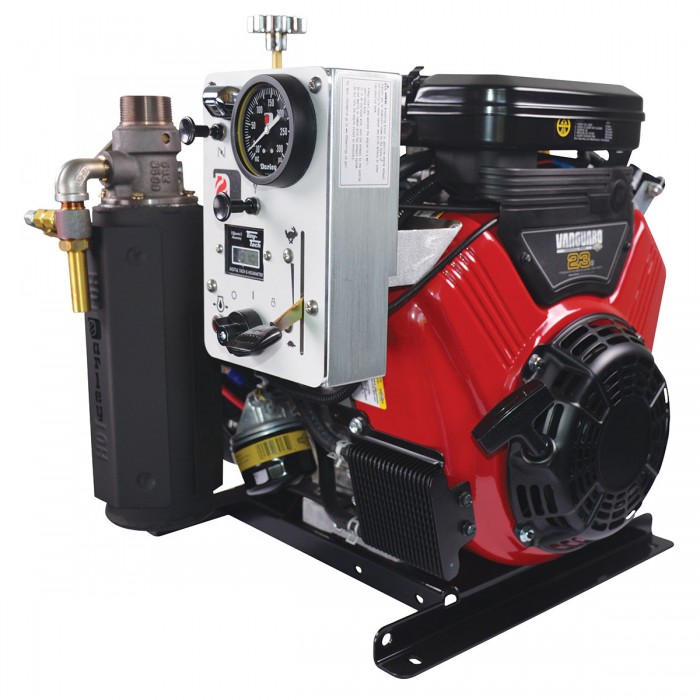

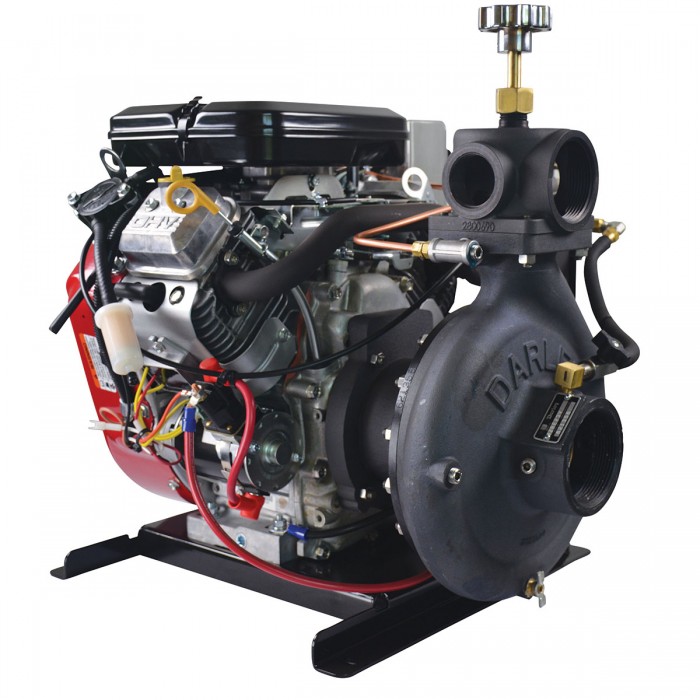

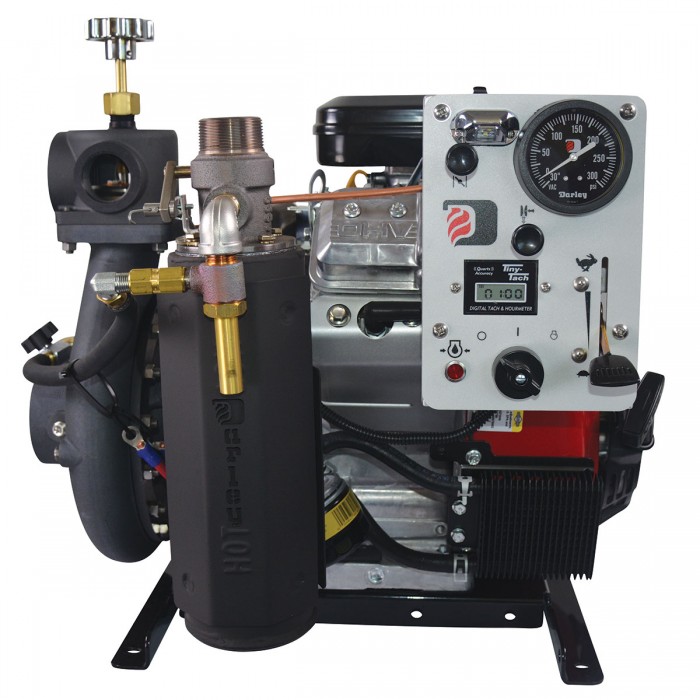

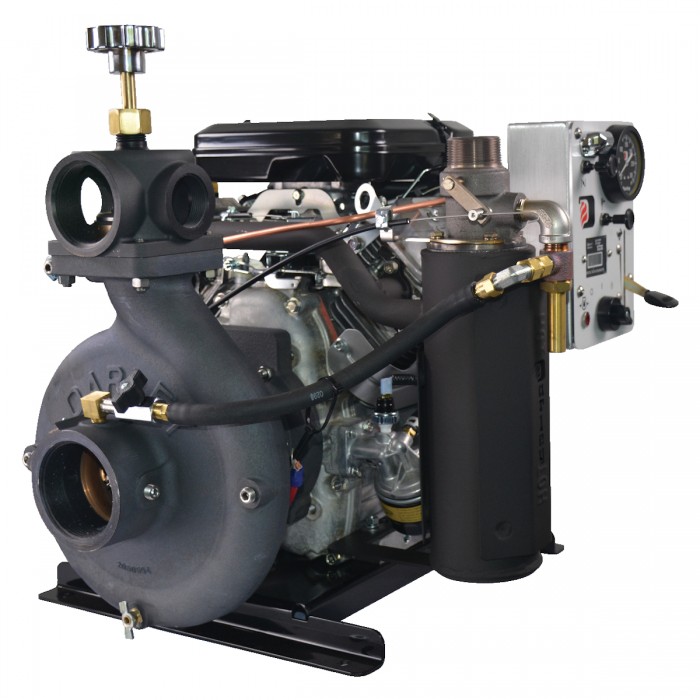

2BE 23V Vanguard Portable Gasoline-Powered Pump
Part Number: 2BE23V
2BE 23V Vanguard Portable Gasoline-Powered Pump
Part Number: 2BE23V
Medium Pressure, High Volume, Direct Drive, Engine Mounted
Documents & Downloads
PDF Drawings
DWG Drawings
IGS 3D Files
Performance Curves
Operation Manuals
Order Forms
Performance
- 390 gpm (1476 L/M) @ 30 psi (2.1 bar)
- 200 gpm (757 L/M) @ 110 psi (7.6 bar)
- 100 gpm (378 L/M) @ 140 psi (9.7 bar)
Features
- Aluminum alloy casing
- Discharge valve
- Bronze impeller and seal rings
- Stainless steel impeller shaft
- Mechanical Seal
- Exhaust primer
- Built-in discharge check valve
- Adjustable discharge valve
- 3″ NPT suction
- Two 1-1/2″ NPT and One 2-1/2″ NPT discharges (not shown)
Motor
N/A
Engine
Briggs & Stratton Vanguard
- 4 cycle
- 23 HP
- V-Twin
- OHV
- Replaceable Oil Filter
- 12-Volt Starter
- Recoil Rope Start Back-up
- 16 amp Regulated Alternator
- 6 gal. Fuel Tank
- Control Panel
Weight
195 lbs. (89 kg)
Dimensions
24″L x 21″W x 24″H
Applications
- Booster Tank Fill
- Multiple Hand Lines
- Wildland/Attack Fire Suppression
Options
- Smartstart™
- Adapters
- Gauge
- Battery
- Caps
Technology
N/A
