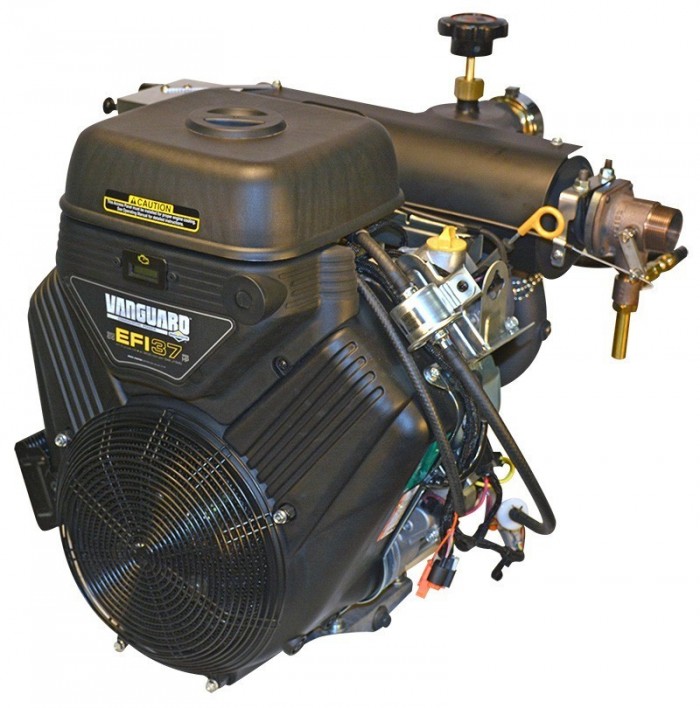

2-1/2 AGE 37V-EFI Pump
2-1/2 AGE 37V-EFI Pump
Medium Pressure, High Volume, Gear Driven, Engine Mounted Pump
Documents & Downloads
PDF Drawings
DWG Drawings
CAD Files
Performance Curves
Repair Manuals
Operation Manuals
Install Instructions
Sales Flyers
Performance
- 290 gpm (1097 L/M) @ 100 PSI (6.9 bar)
- 100 gpm (378 L/M) @ 230 PSI (15.8)
- 50 gpm (189 L/M) @ 280 PSI (19.3)
Features
- Hard anodized aluminum alloy casing and discharge head
- Bronze impeller and wear rings
- Stainless steel impeller shaft
- Mechanical seal
- Helical gears
- Discharge check valve and adjustable discharge valve
- Sulfuric anodized aluminum alloy gear case and engine adapter
- Exhaust primer
- Control Panel: Mounted with engine controls and pressure gauge (also available for remote mounting)
- 2-1/2” NPT suction inlet
- Two 1-1/2” NPT and One 2-1/2” NPT discharges
Motor
N/A
Engine
Briggs & Stratton: 37 HP, V-Twin, OHV, EFI 4 cycle, air cooled gas engine, electric start, flywheel alternator, fuel and oil pump filters
Weight
217 lbs. (98 kg)
Dimensions
28″L x 27″W x 31″H
Applications
- Booster reel
- Multiple hand lines
- Wildland/attack fire suppression
Options
Adapters, Battery, Caps
Technology
N/A
