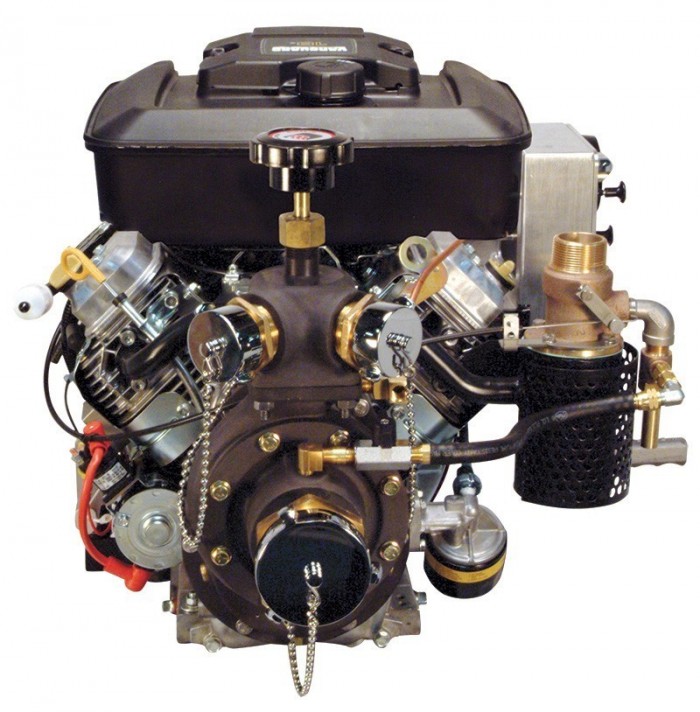

1-1/2AGE 13V Twin Portable Pump
Part Number: 1-1/2AGE 13V-TWIN
1-1/2AGE 13V Twin Portable Pump
Part Number: 1-1/2AGE 13V-TWIN
Medium Pressure, Medium Volume, Gear Driven, Engine Mounted
Documents & Downloads
Performance Curves
Repair Manuals
Operation Manuals
Order Forms
Sales Flyers
Performance
- 120 gpm (454 L/M) @ 80 psi (5.5 bar)
- 100 gpm (378 L/M) @ 110 psi (7.6 bar)
- 20 gpm (76 L/M) @ 185 psi (12.8 bar)
Features
- Electric start with recoil rope backup
- Exhaust primer, bronze impeller, and wear rings
- Stainless steel shaft
- Mechanical Seal
- Discharge head with check valve
- Base with fold-away carrying handles
- Aluminum alloy gear case and engine adapter
- Heat-treated alloy steel helical gears
- 2″ NPT suction Two 1-1/2″ NPT or One 2-1/2″ NPT discharge
Engine
Briggs & Stratton Vanguard: 13 HP, V-twin, 8.35 qt. gas tank, 12-volt starter, 16 amp regulated alternator, recoil rope start back-up
Weight
145 lbs. (66 kg)
Dimensions
27″L x 21″W x 23″H
Applications
- Light Duty Brush Trucks
Options
Adapters, Gauge, Battery, Caps
Technology
N/A
