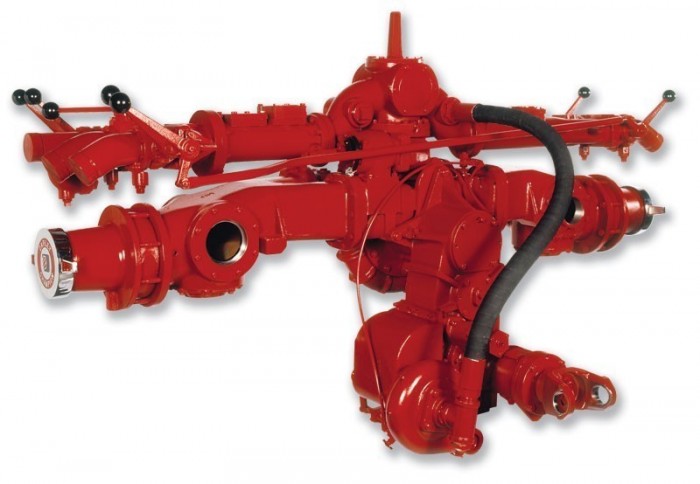

LDMH 1000

• 1000 gpm (3785 L/M) @ 150 psi (10.3 bar)
• 700 gpm (2646 L/M) @ 200 psi (13.8 bar)
• 500 gpm (1893 L/M) @ 250 psi (17.2 bar)

LDMH 1250

• 1250 gpm (4731 L/M) @ 150 psi (10.3 bar)
• 875 gpm (3312 L/M) @ 200 psi (13.8 bar)
• 625 gpm (2365 L/M) @ 250 psi (17.2 bar)

LDMH 1500

• 1500 gpm (5678 L/M) @ 150 psi (10.3 bar)
• 1050 gpm (3974 L/M) @ 200 psi (13.8 bar)
• 750 gpm (2839 L/M) @ 250 psi (17.2 bar)

LDMH 1750

• 1750 gpm (6624 L/M) @ 150 psi (10.3 bar)
• 1225 gpm (4637 L/M) @ 200 psi (13.8 bar)
• 875 gpm (3312 L/M) @ 250 psi (17.2 bar)

HIGH PRESSURE

• 200 gpm (757 L/M) @ 400 psi (27.6 bar)
• 100 gpm (379 L/M) @ 600 psi (41.3 bar)

• High pressure booster pump (rated 1500 gpm max.)
• Four 2-1/2″ NH, 1/4 turn, ball, self-locking valves and caps, mounted
• Two 5″ or 6″ NH suction adapters and caps
• Choice of 1-1/2″, 2-1/2″ or 3″ companion flanges, discharge or suction (as needed)
• 1610 or 1710 full round yokes standard
• Air shift
• 2-1/2″ driveline, 12-1/4″ driveline drop
• Injection packing. Mechanical seal optional.
• Heat treated gears

1,340 lbs. (608 kg)

46″L x 84″W x 44″H

• Aerial
• Pumper
• Pumper Tanker
• Rescue Pumper
• Tanker
