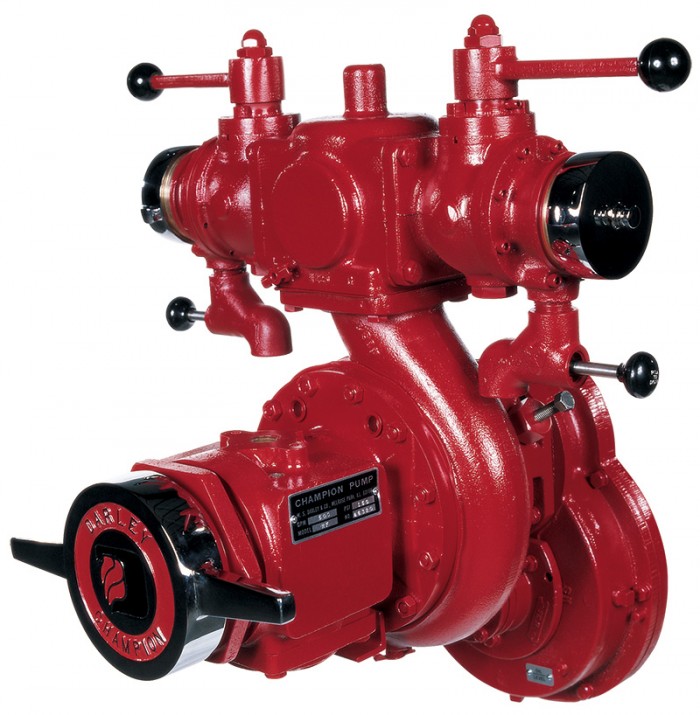

HF 500
Part Number: hf500
HF 500
Part Number: hf500
Single Stage, Centrifugal, Front Mount Pump
Documents & Downloads
PDF Drawings
Performance Curves
Repair Manuals
Operation Manuals
Install Instructions
Sales Flyers
Performance
HF 500
- 500 gpm (1893 L/M) @ 150 psi (10.3 bar)
- 350 gpm (1325 L/M) @ 200 psi (13.8 bar)
- 250 gpm (946 L/M) @ 250 psi (17.2 bar)
HF – IC500
- 500 gpm (1893 L/M) @ 150 psi (10.3 bar)
- 350 gpm (1325 L/M) @ 200 psi (13.8 bar)
- 250 gpm (946 L/M) @ 250 psi (17.2 bar)
Features
HF 500
- Two 2-1/2″ NH, 1/4 turn, ball, discharge valves, and caps
- 4″ NH or 3″ NH suction adapter, screen, and cap
- One 2-1/2″ NPT or 3″ NPT suction tap
- One 2-1/2″ NPT discharge tap
- Complete mounting kit
- Heavy duty 400 lb-ft electric clutch
- Shock Control Module – prevents engaging clutch at high speeds
HF – IC500
- 4″ NH or 3″ NH suction adapter, screen, and cap
- One 2-1/2″ NPT or 3″ NPT suction tap
- One 2-1/2″ NPT discharge flange
- Complete mounting kit
- Heavy duty 400 ft. lb. electric clutch
- Shock Control Module – prevents engaging clutch at high speeds
Engine
N/A
Weight
235 lbs. (107 kg)
Dimensions
25″L x 19″W x 25″H
Applications
- Mini Pumper
- Tanker
- Wildland/Attack Fire
Options
N/A
Technology
N/A
