HEF 10.5BS DOLPHIN™
Part Number: HEF10.5BSDOLPHIN
HEF 10.5BS DOLPHIN™
Part Number: HEF10.5BSDOLPHIN

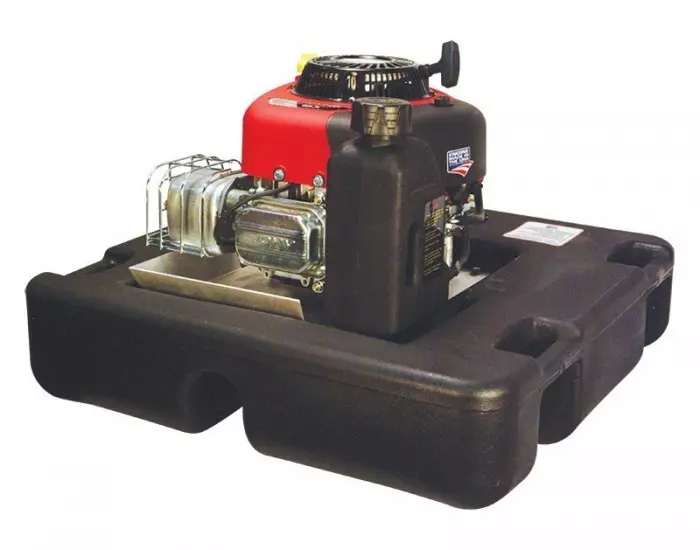

Dolphin Floating Pump, Hi-Volume, Self Priming
Take advantage of streams, ponds, swimming pools, and hard-to-reach water sources. This lightweight pump is easily carried by two people through even the roughest terrain. Its clean, compact design allows you to store it in most standard-size compartments. Works in as little as 6″ of water.
Documents & Downloads
PDF Drawings
DWG Drawings
IGS 3D Files
Operation Manuals
Sales Flyers
Performance
- 370 gpm (1400 L/M) @ 15 psi (1.0 bar)
- 250 gpm (946 L/M) @ 40 psi (2.8 bar)
- 200 gpm (757 L/M) @ 45 psi (3.1 bar)
- 100 gpm (378 L/M) @ 60 psi (4.1 bar)
Features
- High volume, self-priming, floating pump
- Anodized aluminum alloy pump casing
- Bronze impeller
- 4″ screened suction inlet
- 2-1/2″ NH outlet
Engine
Briggs & Stratton: 10.5 HP, 2.8 qt. fuel tank
Weight
110 lbs. (50 kg)
Dimensions
33″L x 30″W x 20″H
Applications
- Booster Tank Fill
- Transfer and Supply
Options
N/A
Technology
N/A
