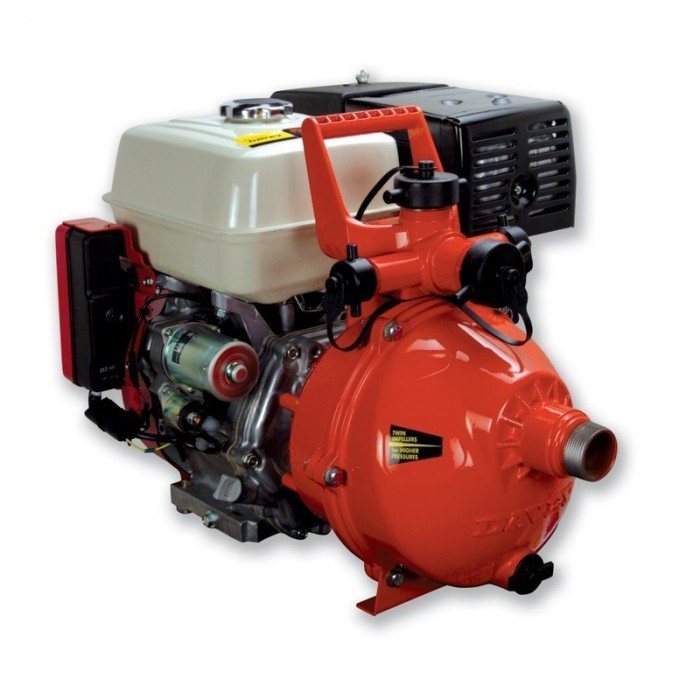

Davey 9 HP Twin Impeller Portable Gasoline-Powered Pump
Part Number: AK308
Davey 9 HP Twin Impeller Portable Gasoline-Powered Pump
Part Number: AK308
The Darley Davey pumps, also known as the “affordable portables,” are the most economical choice in portable, high-efficiency pumps. Their compact design makes them ideal for a variety of applications such as firefighting, tank filling, and water transfers.
- Medium Pressure
- High Volume
- Engine Mounted
Documents & Downloads
Features
- Marine-grade aluminum casing
- 3-way discharge port with 1 – 1-1/2″ NPTM, 2 – 1″ NPTM
- 1-1/2″ NPTM suction
- Zinc-plated casing bolts
- Mechanical shaft seal
- Nitrile rubber seal and casing “O” rings
- Self-priming up to 19′
- Easy installation
- Compact and lightweight
- High pumping efficiency
- Low oil protection
- Spark arrestor/exhauster diverter
- AK310: Pump roll cage with battery tray (Optional)
Performance
- 120 gpm (454 L/M) @ 10 psi (0.7 bar)
- 95 gpm (378 L/M) @ 55 psi (3.8 bar)
- 60 gpm (227 L/M) @ 105 psi (7.21 bar)
- 20 gpm (76 L/M) @ 125 psi (8.6 bar)
Motor
N/A
Engine
- GX270: 9 HP Honda with electric start and recoil rope start
Weight
- Approx. 80 lbs. (36 kg)
Dimensions
- A – 23.8″
- B – 17.7″
- C – 17.1″
- D – 7.5″
- E – 12.6″
See image for dimensions legend.
Applications
N/A
Options
N/A
Technology
N/A
