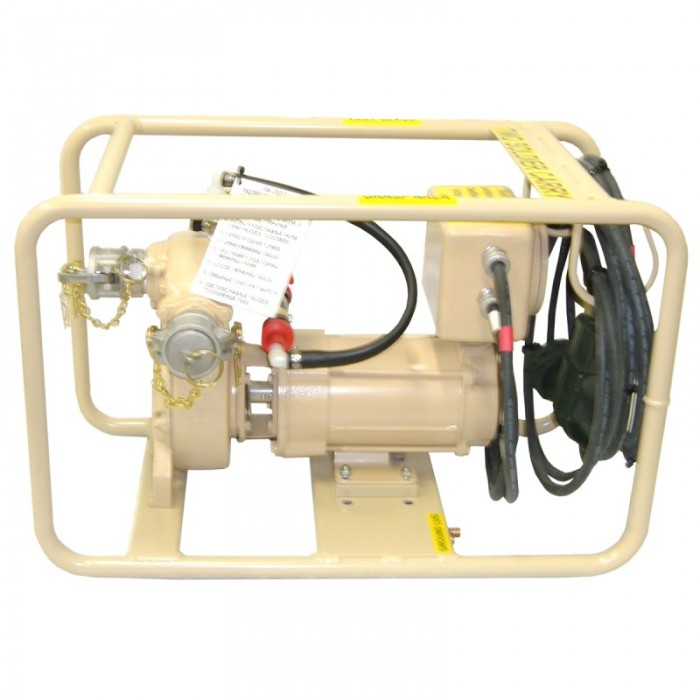

AFPS-6315-24VDC
AFPS-6315-24VDC
Documents & Downloads
Performance Curves
Order Forms
Sales Flyers
Performance
- 44 GPM @ 11 PSI (25.4 FT)
Features
- Capacity: 35 gpm at 25 ft of total head
- 1-1/2″ suction and discharge openings
- All major pump components are made of aluminum
- Self-lubricating mechanical seal
- Powered by a 3/4 horsepower explosion-proof motor
- Equipped with a hand primer pump to speed filling of the inlet hose
- Equipped with an electrical/ junction box providing:
- Connections for a slave cable
- Short circuit and overload protection
- External switch for ON/OFF control of unit
Motor
N/A
Engine
N/A
Weight
N/A
Dimensions
N/A
Applications
N/A
Options
N/A
Technology
N/A
