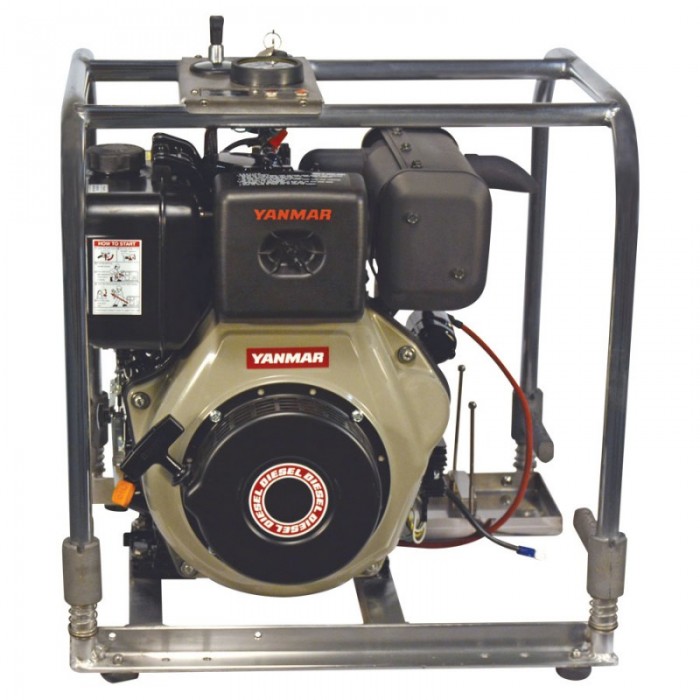

2BE10YDW – Civilian Model
2BE10YDW – Civilian Model
Medium Pressure, High Volume, Engine Mounted
Documents & Downloads
PDF Drawings
IGS 3D Files
Performance Curves
Operation Manuals
Sales Flyers
Performance
- 250 gpm (946 L/M) @ 20 psi (1.4 bar)
- 180 gpm (681 L/M) @ 50 psi (3.5 bar)
- 95 gpm (359 L/M) @ 90 psi (6.2 bar)
Features
- Anodized aluminum alloy casing
- Discharge head
- Engine adapter
- Bronze impeller and wear rings
- Stainless steel impeller shaft
- Shredded plastic packing
- Discharge check valve
- Adjustable discharge valve
- Throttle
- Roll cage
- 3″ NPT suction
- 2-1/2″ NPT discharge
Motor
N/A
Engine
Yanmar L100W: 9.3HP, 3600 RPM, 4 cycle, air cooled, 1 cylinder, recoil rope start back-up, 12-volt electric start and alternator, EPA complaint for US civilian applications
Weight
163 lbs. (74 kg)
Dimensions
21″L x 23.5″W x 26.41″H
Applications
N/A
Options
N/A
Technology
N/A
