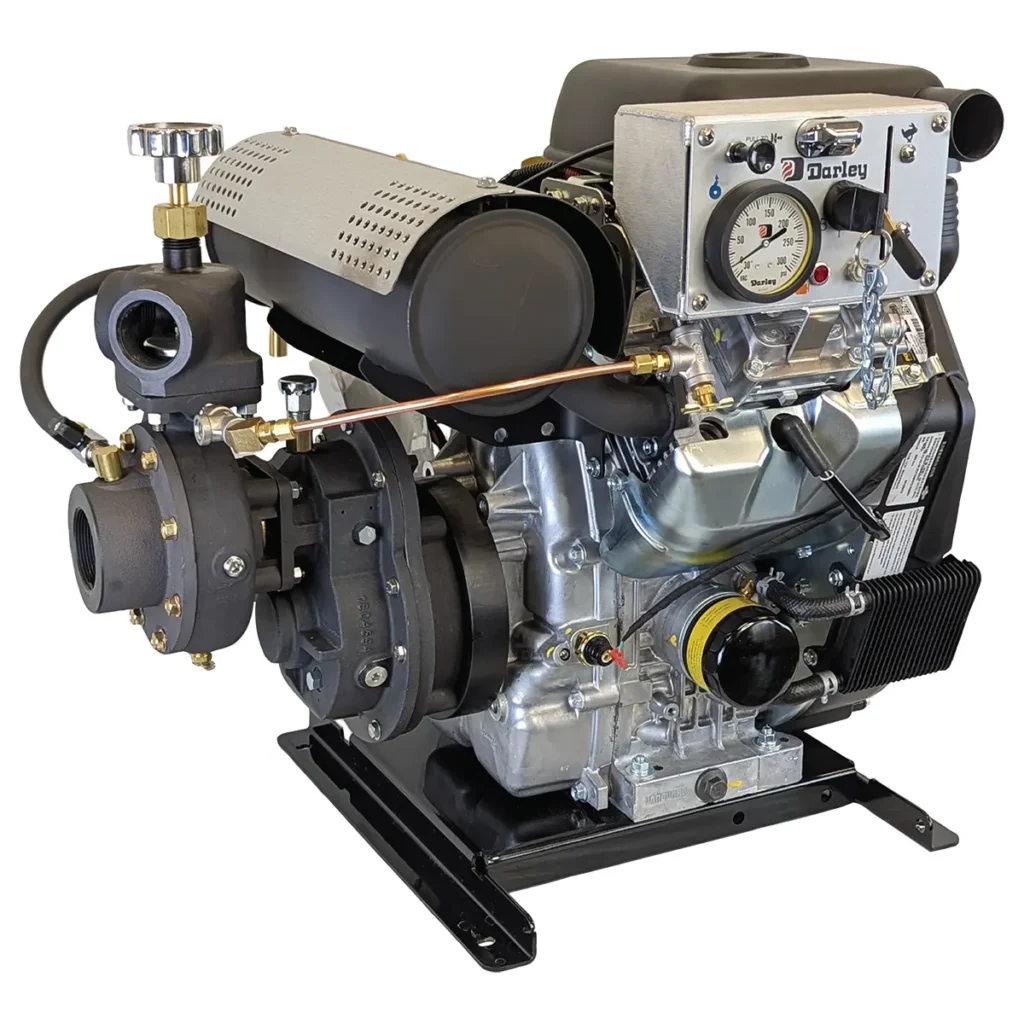

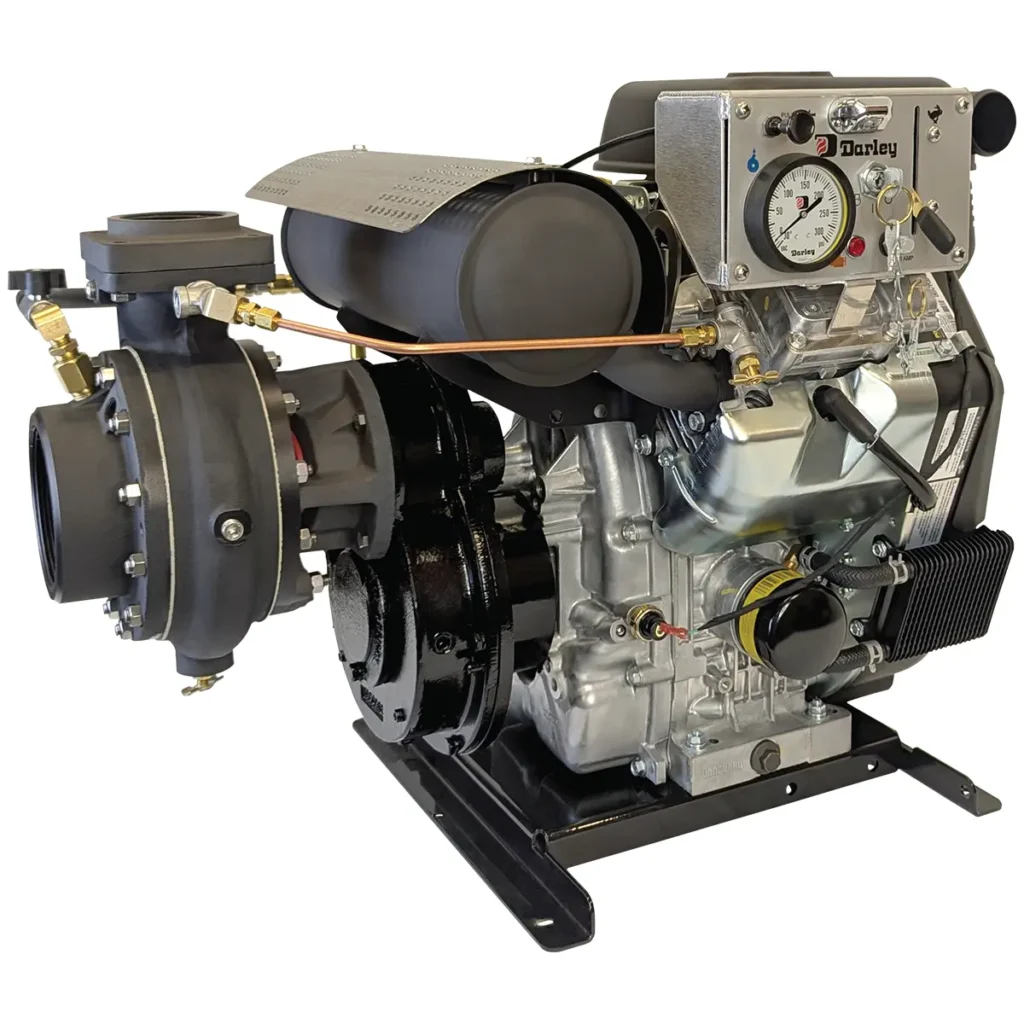

2-1/2AGE 23V Portable Pump
Part Number: 2-1/2AGE 23V
2-1/2AGE 23V Portable Pump
Part Number: 2-1/2AGE 23V
High Pressure, High Volume, Gear Driven, Engine Mounted
Documents & Downloads
DWG Drawings
CAD Files
Performance Curves
Repair Manuals
Operation Manuals
Order Forms
Sales Flyers
Performance
- 290 gpm (1097 L/M) @ 45 psi (3.1 bar)
- 100 gpm (378 L/M) @ 135 psi (9.3 bar)
- 50 gpm (189 L/M) @ 175 psi (12.0 bar)
Features
- Hard anodized aluminum alloy casing and discharge valve
- Sulfuric anodized aluminum alloy gear case and engine adapter
- Bronze impeller and wear ring
- Stainless steel impeller shaft
- Mechanical seal
- Helical gears
- Discharge check valve and adjustable discharge valve
- Throttle
- Exhaust primer
- 2-1/2″ NPT suction
- One 2-1/2″ NPT and Two 1-1/2″ NPT discharges
Motor
N/A
Engine
Briggs & Stratton Vanguard: 4 cycle, 23 hp, V-twin, OHV, 6 gal. fuel tank, replaceable oil filter, 12-volt starter, 16 amp regulated alternator, recoil rope start back-up
Weight
190 lbs. (86 kg)
Dimensions
24″L x 21″W x 24″H
Applications
- Booster Reel
- Multiple Hand Lines
- Wildland/Attack Fire Suppression
Options
Adapters, Gauge, Battery, Caps
Technology
N/A
