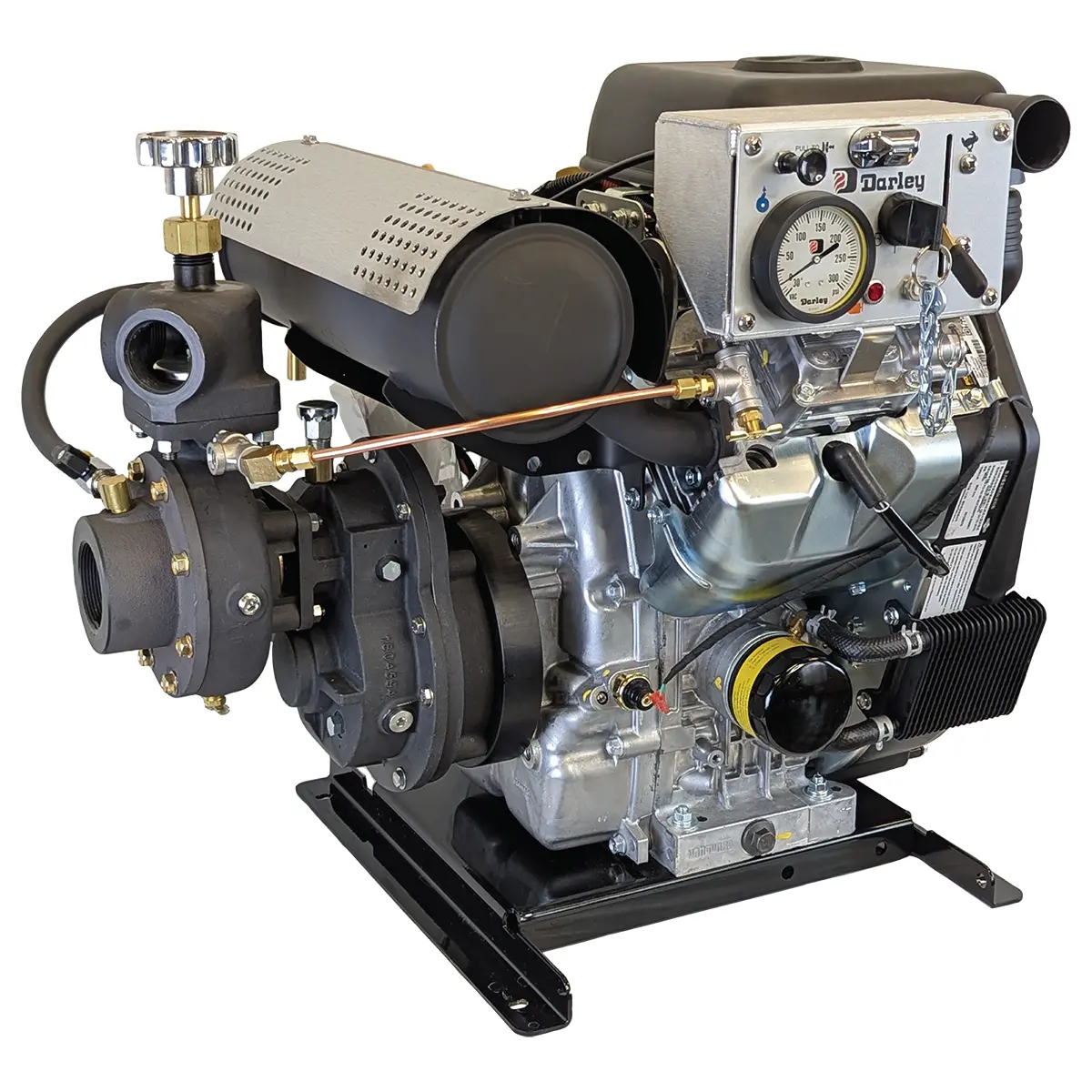

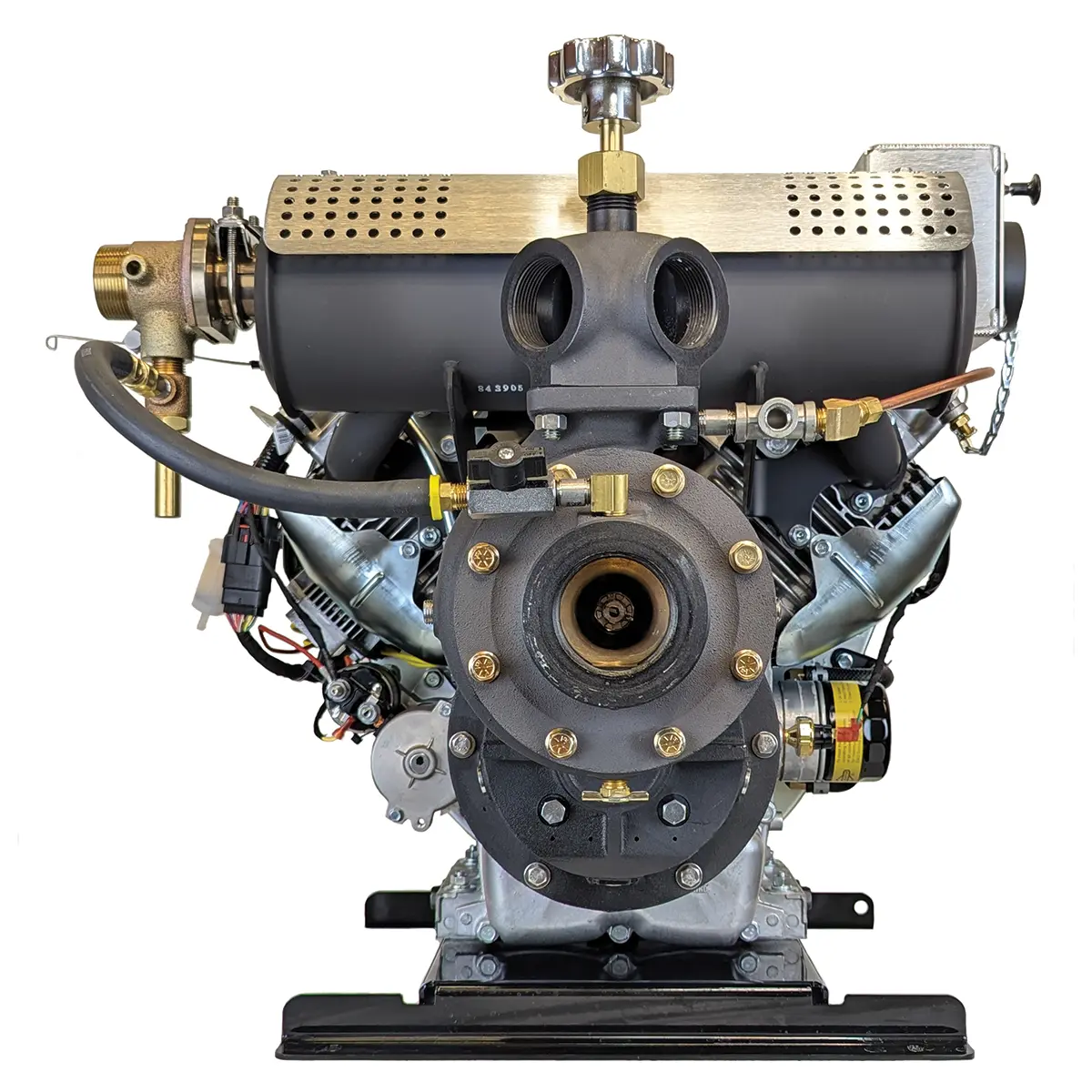

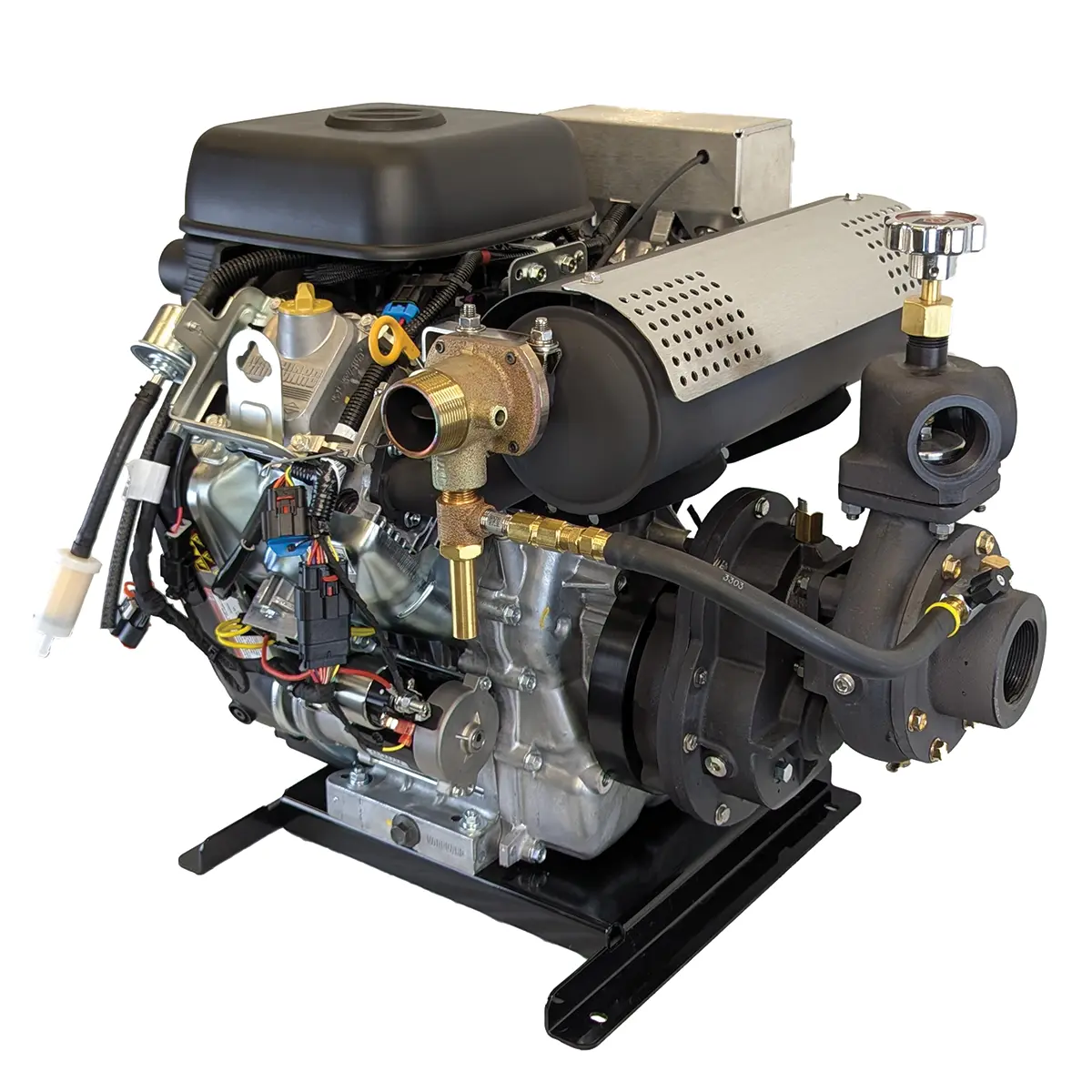

1.5AGE40V Portable Pump
1.5AGE40V Portable Pump
The 40HP Vanguard EFI + ETC engine represents a significant leap forward in engine technology. Utilizing state-of-the-art Electronic Fuel Injection (EFI) and Electronic Throttle Control (ETC), along with an increased engine RPM range, this engine offers superior performance, enhanced fuel efficiency, and reduced emissions, all while spinning at a blistering 4400 RPM. The new ETC system eliminates frustrating throttle cables and dramatically improves ease of use, especially for remote panel options.
Documents & Downloads
Sell Sheets
Performance
- 110 gpm (416 L/M) @ 290 psi (20 bar)
- 70 gpm (265 L/M) @ 385 psi (26.5 bar)
- 30 gpm (114 L/M) @ 415 psi (28.6 bar)
Features
- Bronze impeller and wear rings
- Hard-anodized aluminum alloy pump and gearbox
- Newly Designed Control Panel: Mounted on the engine or as a Remote Option
- Stainless steel impeller shaft
- Mechanical seal
- Helical gears
- Numerous Discharge Options
- Exhaust primer
- 2″ NPT suction
Motor
N/A
Engine
- 4400 Bare Shaft RPM
- V-Twin OHV Technology
- Electronic Fuel Injection (EFI)
- Electronic Throttle Control (ETC)
- V-Twin OHV Technology
- Dura-Bore Cast Iron Cylinder Sleeve
- Full Pressure Lubrication with Spin-On Oil Filter
- Oil Cooler
- High-Efficiency Cylinder Head Design
- CAN J1939 Communication
- Dynamically Balanced Crankshaft
- Industrial Grade Solenoid Shift Starter
- Magnetron Electronic Ignition
Weight
- 220 lbs. (100 kg)
Dimensions
- 28.5″ L x 24.5″ W x 24″ H
Applications
N/A
Options
N/A
Technology
N/A
