NSN: 4930-01-706-0781

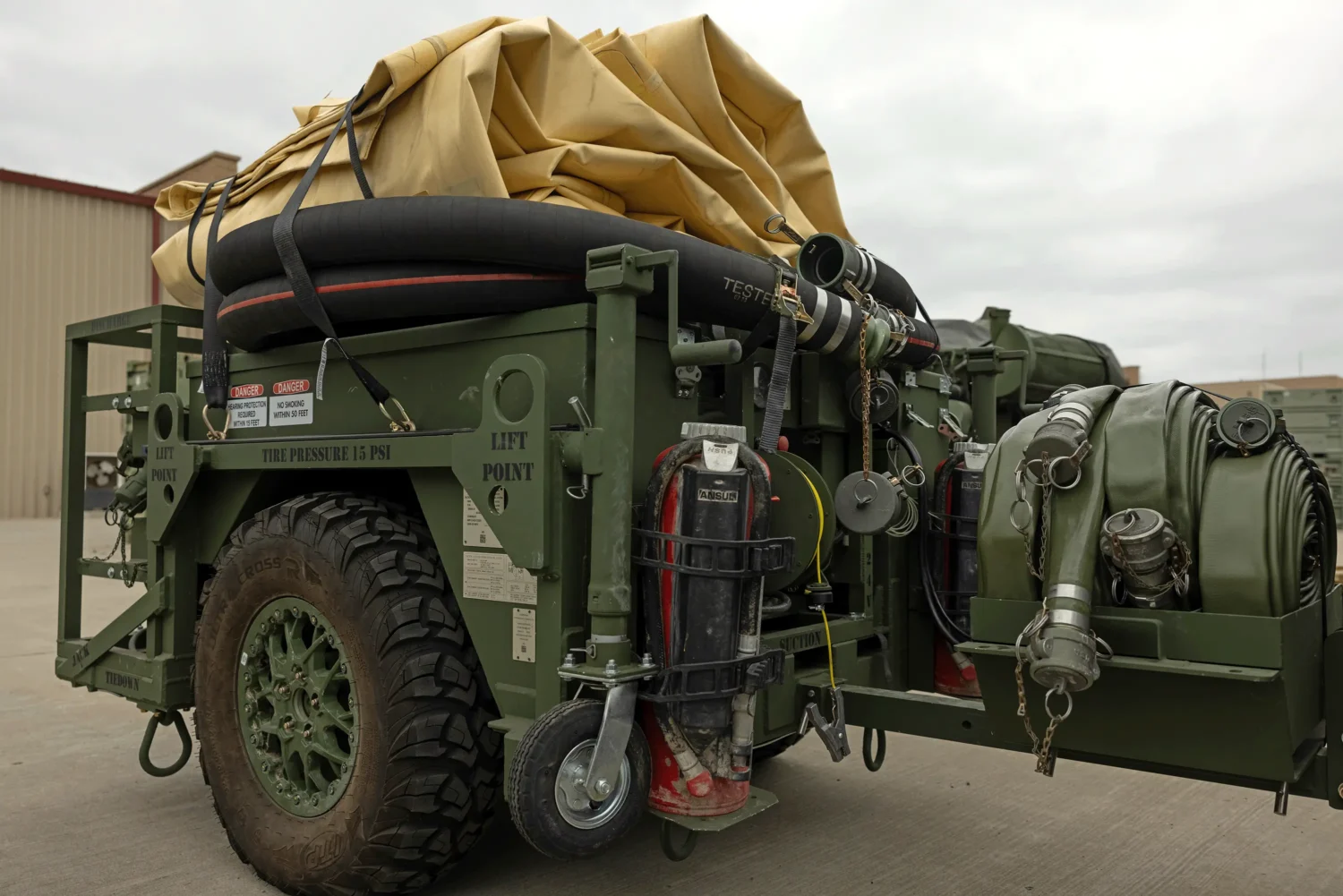

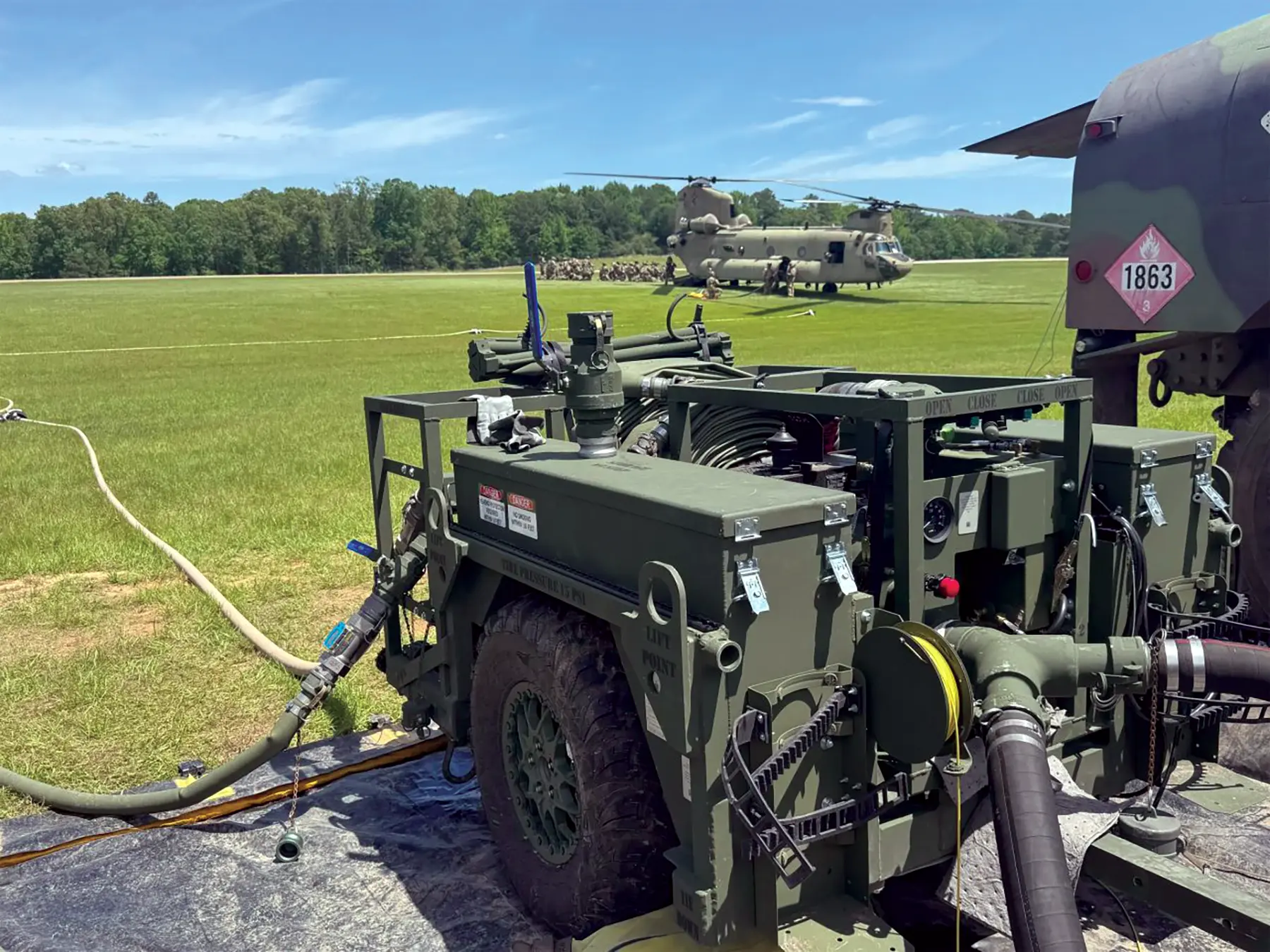

TAGRS is an integrated system consisting of a fuel pump, filter separator, trailer, collapsible fabric tanks (CFT), fuel hoses, fuel hose components, fire extinguisher and all necessary adapters. The TAGRS is capable of being towed by its prime mover, the Ultralight Tactical Vehicle (ULTV), in and out of a CH-53, and an MV-22. The TAGRS is tailored and employed as a fully integrated system and when required, the pump, filter separator, hoses, and components are capable of being operated independently of the platform system.

Trailer

• Industrial-strength aluminum
• Telescoping tongue
• 32″ off-road run-flat tires

Pump

• Ohler Model 36 aluminum pump
• Hatz IB50 engine
• 250 GPM @ 30 PSI, 155 GPM @ 50 PSI, and max pressure up to 70 PSI

Bags

• Equipped with two fuel bladders that each hold 3,000 gallons of fuel for a total of 6,000 gallons of collapsible storage
• Fuel bladders meet MIL-PRF-32233C

Hoses

• 300 feet of 2″ lay flat hose – hoses are in 75-foot sections and are outfitted with cam-lock ends for ease of assembly
• 30 feet of hard suction hose – 15-foot sections, 3″ diameter

Fuel Separators

• Single fuel separator filter – capable of flowing 200-240 GPM of fuel
• Filter discharges are located on the rear sides of the trailer
• Two flow meter/totalizers
